17Service Manual – CS7010™ 03 - General Information
Towing the Machine
CAUTION: If the machine must be towed, move the machine for short distances only and do not
move the machine faster than a normal walking pace (2-3 mph, 3-5 kph).
− Tow the machine backward from one of the rear frame tie-down locations as shown
below. Do not push the machine due to the possibility of damage to the solution and
recovery tanks.
− Do not tow the machine by the squeegee tool.

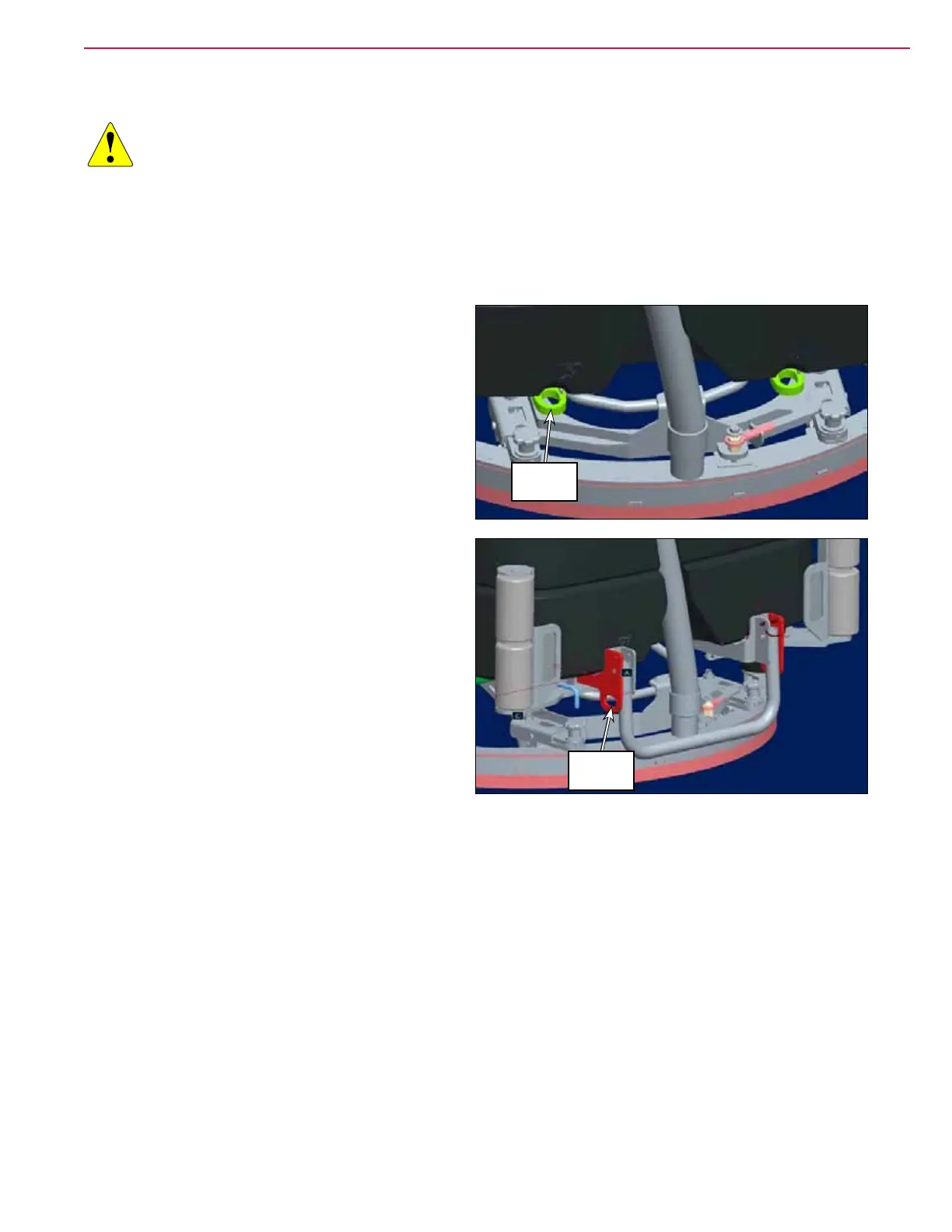

• On machines not equipped with a squeegee
guard kit, tow the machine by one of the two
Tie-down Slots on the chassis (shown in green).
• On machines equipped with a squeegee guard
kit, tow the machine by the two Tie-down Slots
on the squeegee guard (shown in red).
Tie-down
Slot (2)
Tie-down
Slot (2)
