281Service Manual – CS7010™ 48 - Sweep System, Side Broom
Specications
Component Specications
Side Broom Motors (all)
No-load Speed - 2,800 RPM
Rotation-Clockwise
Voltage - 42 VDC
Power-.25HP,ContinuousDuty
Side Broom Motor - Left
CurrentDraw(shop
measurements)
Average - 3 Amps Max. - 4 Amps
Side Broom Motor - Right
CurrentDraw(shop
measurements)
Average - 3 Amps Max. - 4 Amps
Side Broom Actuator
36 VDC, 1/6 HP
Motor-to-drivescrewratio-21.7:1
Drive Nut Cylinder Positions
Retracted Position -
8.00”
Extended Position -
9.75”
CurrentDraw(shopmeasurements) Average - 2 to 3 Amps
Performancedataforthefollowingloadconditions:
No load Full load Start
Thrust - 0 lbs Thrust - 600 lbs Thrust 600 - lbs
Speed - 39 in/min Speed - 30 in/min
Amps - 1.4 Max Amps - 6.7 ±1.0

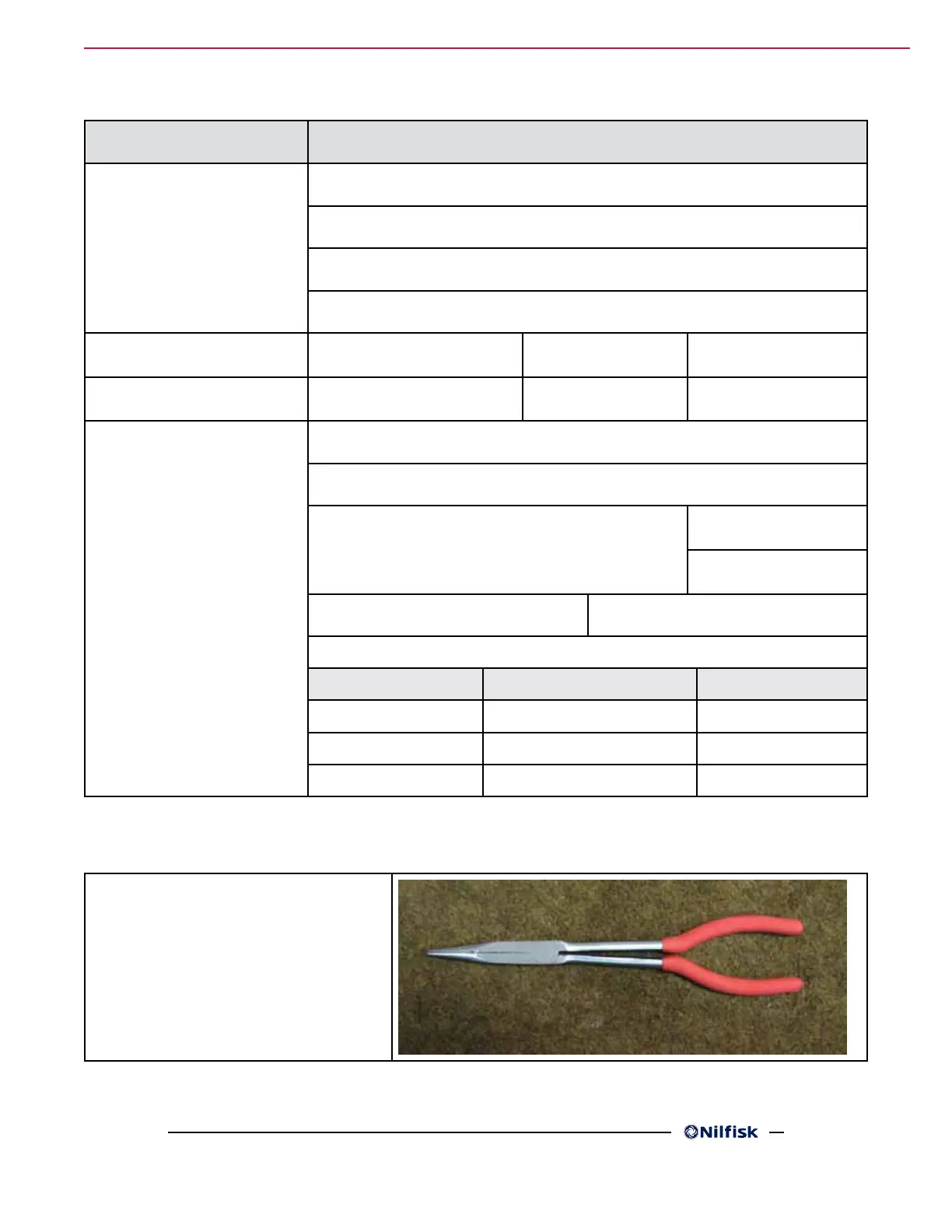

Special Tools
A long needle-nose pliers is recommended
toremovethehaircotterpinwhen
removing/reinstalling the side broom
actuator.Thephotoshownhereisa
typical example.
