Crescent CS7010 - Specifications; Squeegee Tool Assembly; Squeegee Lift Actuator; Special Tools

248Service Manual – CS7010™ 38 - Squeegee System

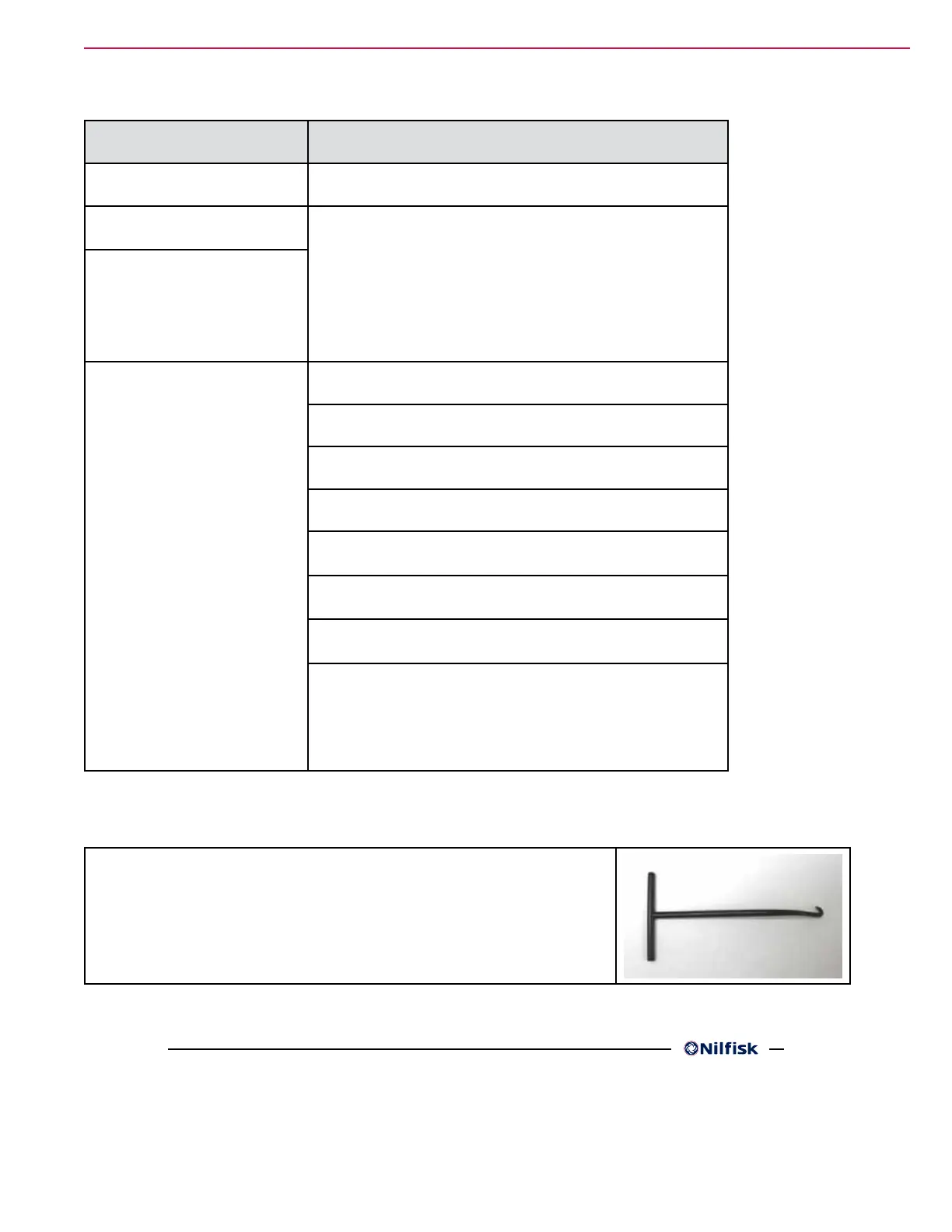

Specications
Component Specications
Squeegee Tool Assembly
Squeegee Blade, Front, Red
Gum
Material - Linatex 40
Color - Red
Hardness - 40 ±5 Shore A Durometer
Tensile Strength - 3000 Psi Minimum
Elongation - 600% Minimum
Squeegee Blade, Rear, Red
Gum
Squeegee Lift Actuator
Dynamic Load - 200 lbs. maximum
Static Load - 250 lbs. maximum
Restraining Torque - Actuator is internally restrained
Amperage - 3 Amps at rated dynamic load
EndofStroke-Actuatorhasinternallimitswitches
connectedtothemotortoshutoffpoweratendsofstroke
OverloadProtection-Balldetentclutchwithloadrating
between250and500lbs.
ThermalProtection-Automaticresettingthermalbreaker
enclosed in motor housing.
Wiring Polarity:
• To extend actuator, connect red lead to positive and
orange lead to negative.
• To retract actuator, connect orange lead to positive and
red lead to negative.
Special Tools
A spring puller is recommended to remove the Extension Springs from the
SqueegeeSupportAssemblyandSqueegeeLiftArmwhenremovingthese
components. There are several types of spring pullers - a typical example
isshownhere.
