222Service Manual – CS7010™ 30 - Solution System
Solution Shutoff Valve
1. Drain the solution tank.
2. Remove the valve shield.
3. Remove the nuts, washers and U-bolts
holding the Solution Filter Assembly to
the mounting plate.
Note: Place a suitable container
underneath the shutoff valve
to catch any solution that
may leak from the hoses or
lter.
4. Loosen the clamp holding the Connecting
Hose to the Solution Shutoff Valve, then
disconnect the Connecting Hose and
attached Solution Filter Assembly from
the Solution Shutoff Valve.
5. Carefully unscrew the Solution Shutoff
Valve from the solution tank.
6. Reinstall the Solution Shutoff Valve
by following the above steps in reverse
order.
Note: Apply Loctite® “No More Leaks” White Threaded Plastic Pipe Sealant to the Solution
Shutoff Valve threads before installing it into the solution tank. Make sure the Solution
Shutoff Valve is oriented correctly on the tank so the barbed tting on the Solution Shutoff
Valve aligns with Connecting Hose on the Solution Filter Assembly.
Solution Filter Assembly
1. Close the Solution Shutoff Valve.
2. Remove the nuts, washers and U-bolts holding the Solution Filter Assembly to the mounting plate.
Note: Place a suitable container underneath the lter to catch any solution that may leak from the
lter or hoses.
3. Loosen the clamp holding the Connecting Hose to the Solution Filter Assembly, then remove the
Connecting Hose from the Solution Filter Assembly.
4. Loosen the clamp on the Hose that runs from the Solution Filter Assembly to the Solution Solenoid
Valve and remove the Hose from the Solution Filter Assembly.
5. Remove the Solution Filter Assembly from the machine.
6. Reinstall the Solution Filter Assembly by following the above steps in reverse order.

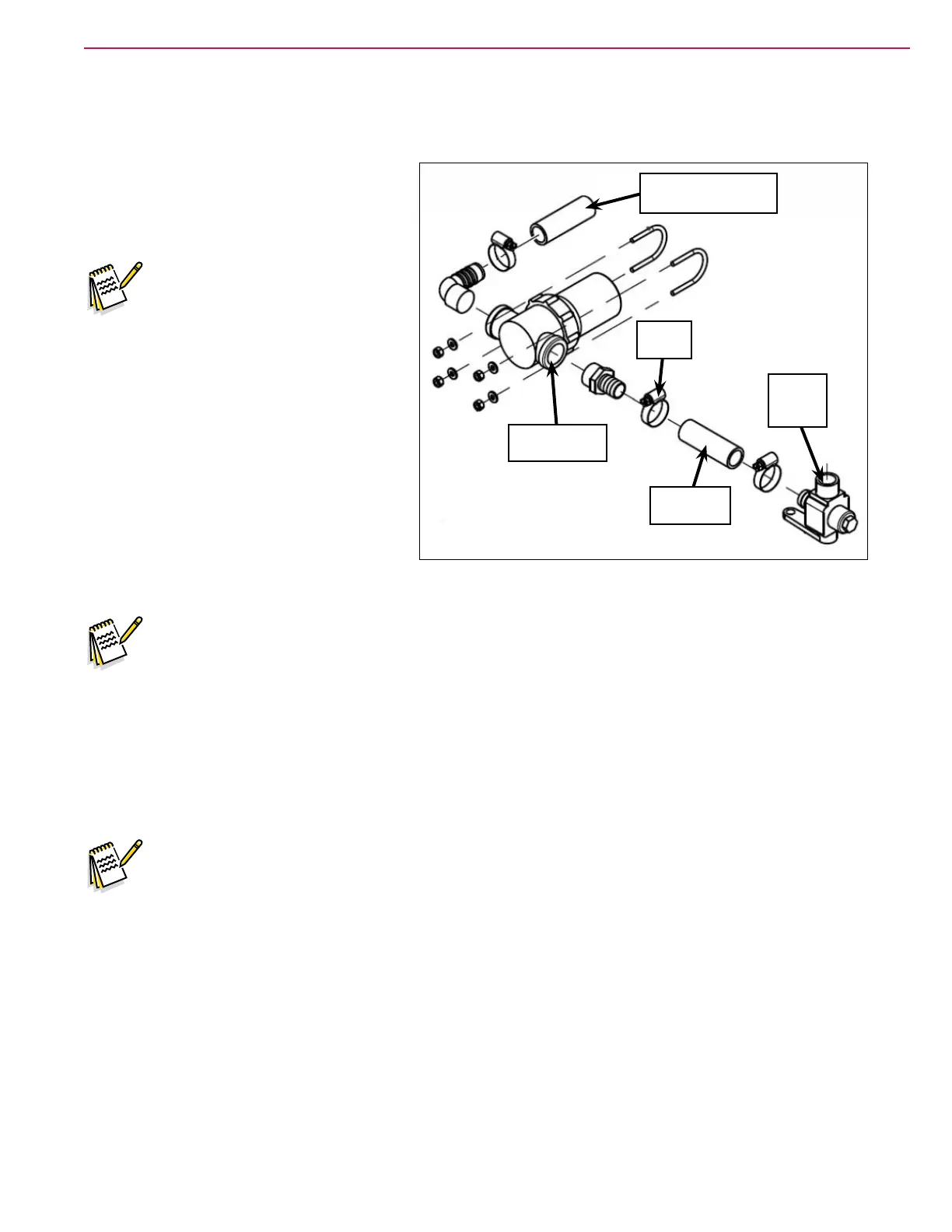

Connecting
Hose
Solution
Shutoff
Valve
Solution Filter
Assembly
Hose to Solution
Solenoid Valve
Clamp
(typical)
