Crescent CS7010 - Sheet 8: Trackclean Harness

24 - Electrical System 139Service Manual – CS7010™

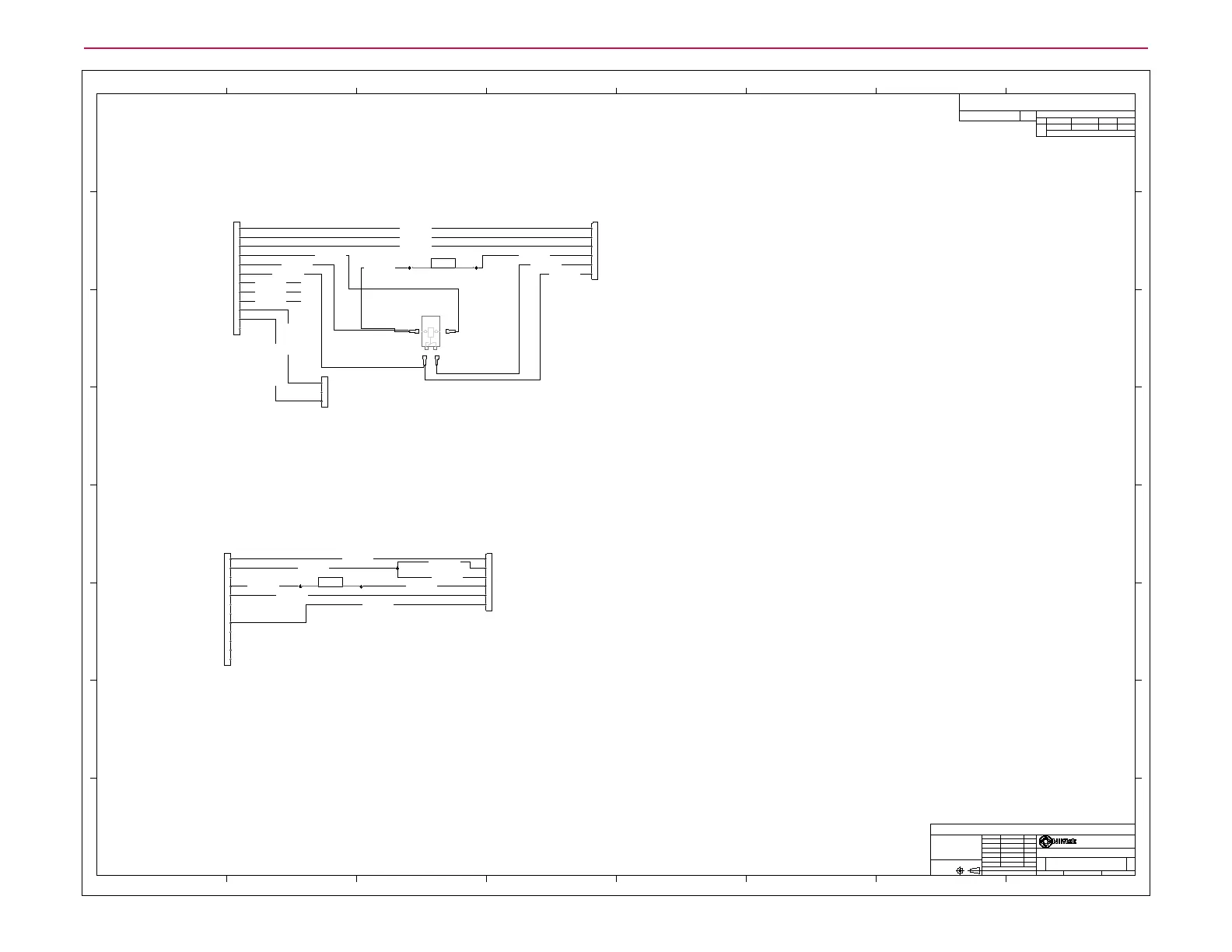

Sheet 8: Trackclean Harness
-NOTES-
NAN/A
DIM. IN [ ] ARE MM.
UNITS IN [ ] ARE ISO METRIC
AS NOTED.
SIZE
CREO DATA
APPROVED
NOTES UNLESS OTHERWISE
SPECIFIED
1.ALL DIMENSIONS IN INCHES.
2.DO NOT SCALE DRAWING.
3.ALL DIMENSIONS APPLY AFTER
PLATING AND HEAT TREATING,
BUT BEFORE PAINTING.
4.REMOVE ALL BURRS AND SHARP
EDGES.
APPROVED
APPROVED
PROJ ENG
CHECKED
DRAWN
MATERIAL: SEE PRO-E BOM
FINISH/COLOR: N/A
REV
DWG NO
TITLE
SHEET
ASSY
SCALE
FUO
E
NILFISK INC.
BROOKLYN PARK, MN 55443
SPRINGDALE, AR 72764
CONFIDENTIAL
THIS DRAWING AND THE DESIGN REPRESENTED HERON IS THE PROPERTY OF NILFISK INC.,
BROOKLYN PARK, MINNESOTA AND IT HAS BEEN ISSUED WITH THE UNDERSTANDING THAT IT WILL NOT BE REPRO-
DUCED NOR COPIED NOR USED FOR ANY PURPOSE OTHER THAN FOR WHICH IT WAS ISSUED AND RECIPIENT
AGREES TO RETURN IT UPON REQUEST.
REVISIONS
APPDDFTMDATEECOREV
SHEET
DWG NO
1
2
4 3
56511879
TRACK CLEAN HARNESS W / READER
56511878
TRACK CLEAN HARNESS
SEE SHEET ONE
SMJ
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
E E
F F
G G
H H
A
8 OF 8
A
JSB5-18-17
CS7010
DIAGRAM-WIRING
56511581
56511581
8
X202
1
2
3
4
5
6
X204
1
2
3
4
5
6
7
8
9
10
11
12
CONTACTOR, POWER MODULE A2
K6
X209
X210
X211 X212
ORN,18,W360
ORN,18,W362
F3
21
RED,18,W364
RED,18,W365
X213
1
2
3
4
5
6
X214
1
2
3
4
5
6
7
8
9
10
11
12
BLU,18,W366
GRN,18,W367
TAN,18,W368
F4
21
RED,18,W375
BRN,18,W376
RED,18,W377
SPL-51
BRN,18,W378
BRN,18,W379
SPL-52
SPL-53
SPL-54
SPL-55
X219
1
2
3
TAN,22,W398
GRN,22,W399
BLU,22,W400
YEL,22,W401
RED,22,W402
BRN,22,W403
BLK,22,W404
RED-BLK,22,W405
GRY,22,W406
PNK,22,W407
WHT,22,W408
