Component Locations

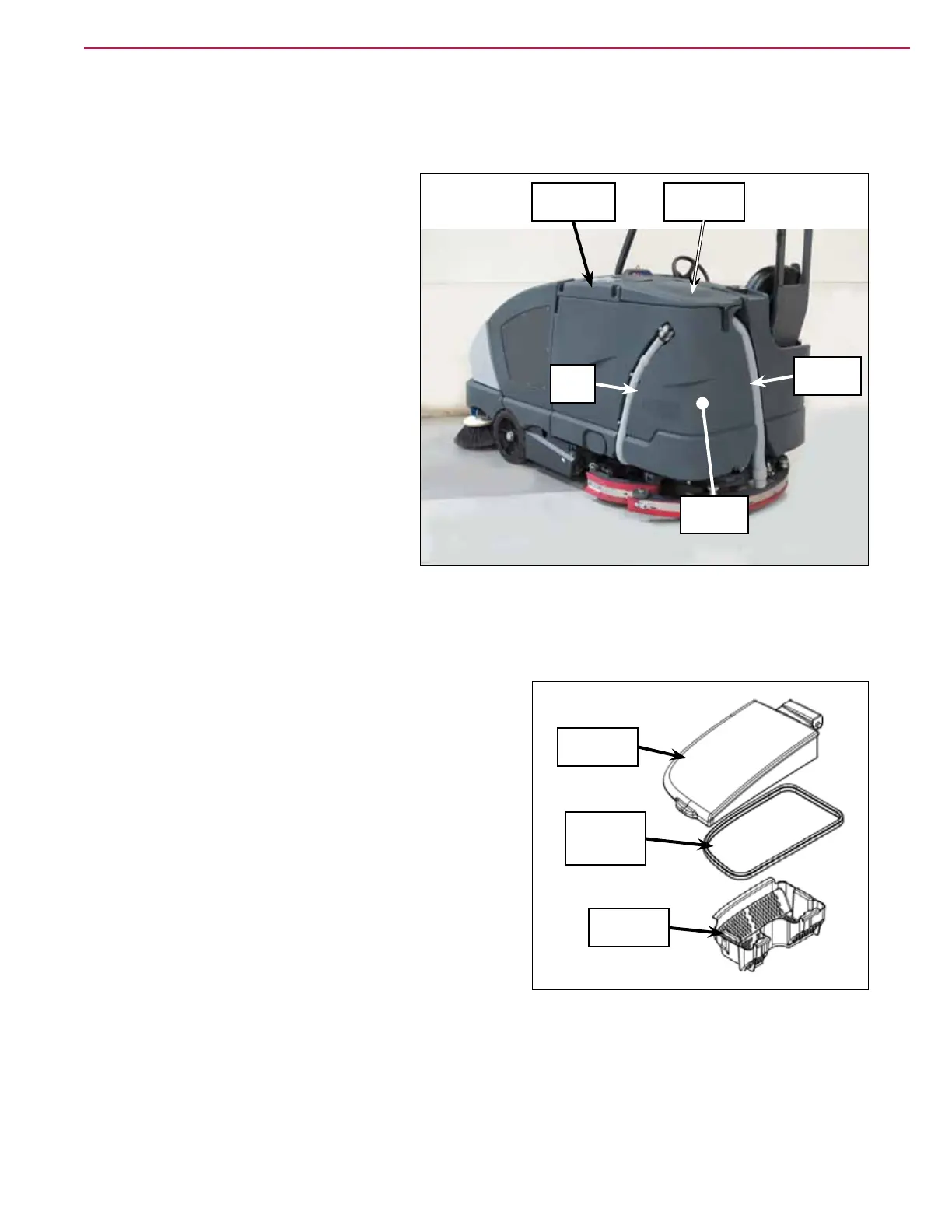

Recovery Tank
The recovery tank is on the left rear side
of the machine. The squeegee hose carries
the scrub solution from the squeegee to
the recovery tank. The drain hose allows
you to empty the recovery tank.
The vacuum motors are located
underneath the vacuum fan cover
assembly.
The debris basket can be accessed by
opening the recovery tank cover.
Recovery Tank Cover and Debris Basket
The debris basket is located below the recovery tank
cover and attached recovery cover gasket. The recovered
solution is directed through the debris basket before going
into the recovery tank to screen out any debris or large
particulates.
Vacuum Fan
Cover
Recovery
Tank Cover
Squeegee
Hose
Drain
Hose
Recovery
Tank
Recovery
Tank Cover
Recovery
Cover
Gasket
Debris
Basket
To Next Page
