91Service Manual – CS7010™ 22 - Steering System

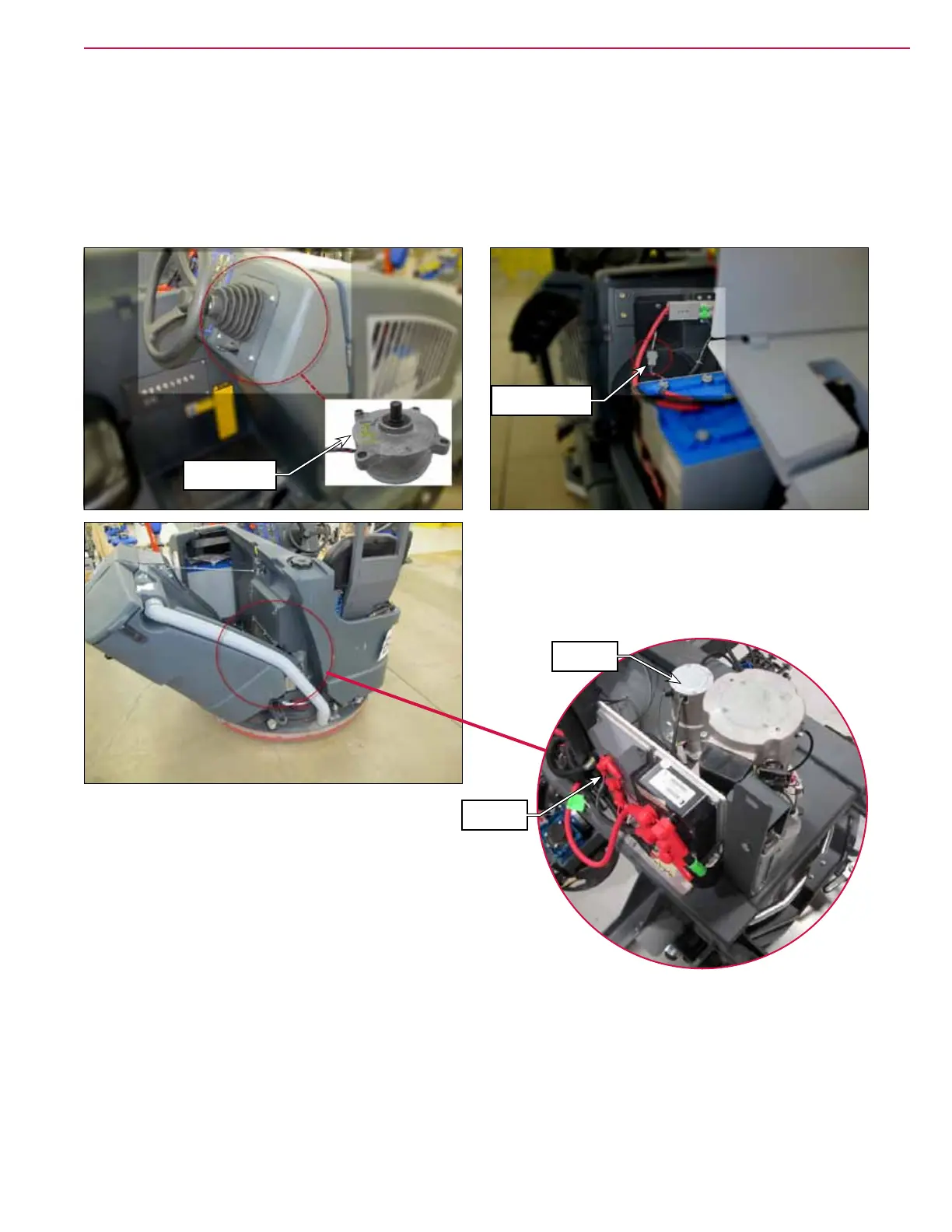

Component Locations
• Steering Wheel Rotation Sensor
• Steering Wheel Rotation Sensor Connector
• Steering Actuator - Rear of machine in front of drive wheel motor.
• Steering Controller - Left rear of machine
Photo taken without tanks
Steering
Controller
Steering
Actuator
Steering Sensor
Connector
Steering
Sensor & TFD
