99Service Manual – CS7010™ 24 - Electrical System
Component Locations

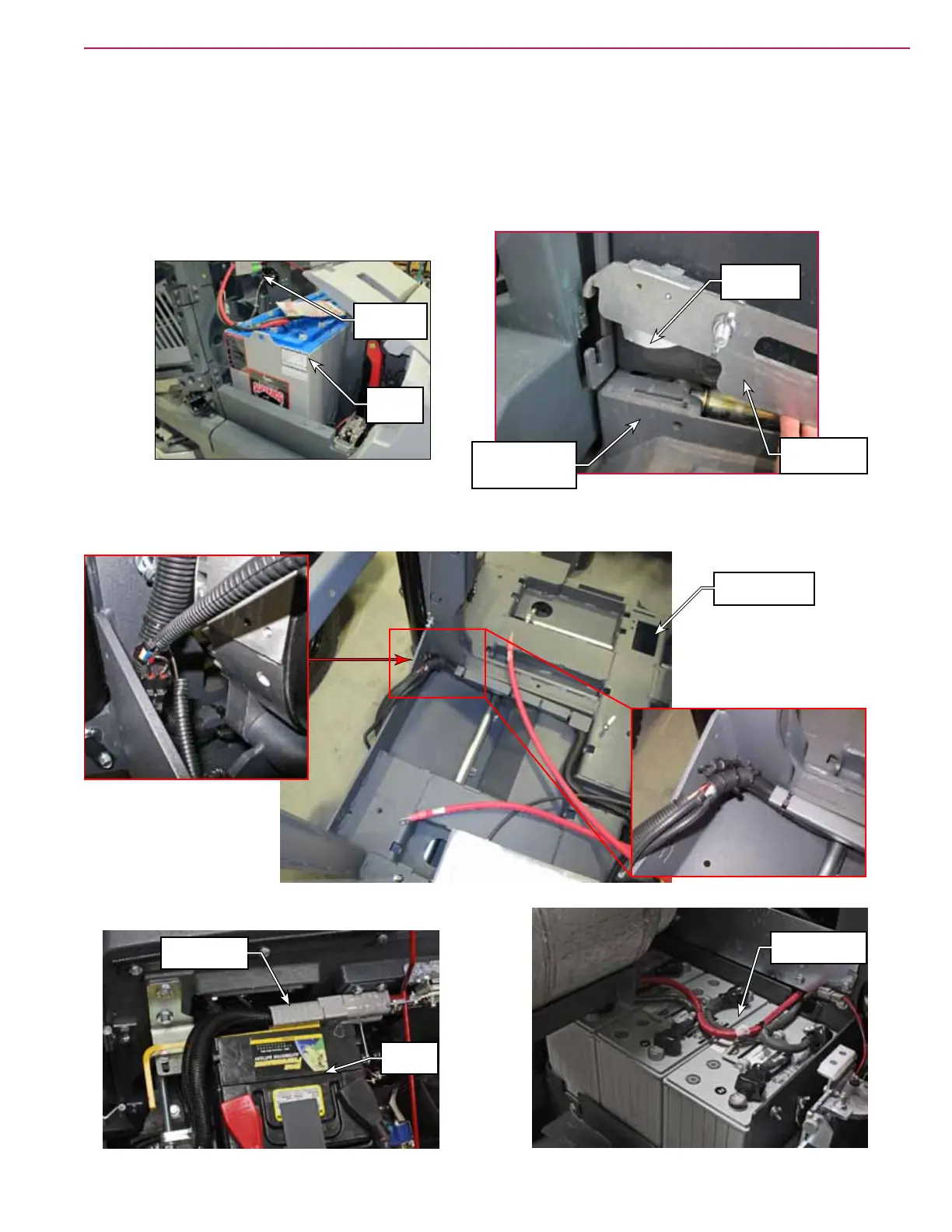

Battery Interlock or Interlock Jumper
Battery powered machines have an interlock switch (proximity sensor), to detect if the battery retaining bar
is not lowered into position. If the sensor is open, machine function is disabled to prevent the batteries from
shifting in the machine during travel. The proximity sensor is inside the main chassis frame, but there is an
access hole behind the sensor (see middle image below).
Main
Battery
Main
Disconnect
Battery
Retaining Bar
Battery
Interlock Sensor
(not visible)
Interlock
Sensor Flag
For non-battery powered machines, this interlock sensor is bypassed with a jumper. This jumper is located
in the front corner near the generator. If this jumper is disconnected, the machine will not function.
Interlock Sensor
Access Hole
Hybrid Machine Batteries
Engine
Battery
Main Battery
Disconnect
Machine (Main)
Battery
