Crescent CS7010 - Dust Control;DustGuard Systems; Functional Description; Overview; Dust Control System

282Service Manual – CS7010™
50 - Dust Control/DustGuard™ Systems
Functional Description
Overview
The dust control system pulls air through the hopper and through a lter to trap the dust from the hopper.
The optional DustGuard system sprays a ne stream of water in front of each side broom to minimize the
dust created by the main broom.
Dust Control System
The Impeller Assembly, mounted in the Hopper Cover,
pulls air from the Upper Hopper through the Filter
which traps the dust generated by the sweep system. The
Impeller Assembly exhausts the ltered air through vents
in the Hopper Cover.
An optional dust control lter switch will shut off the
vacuum motor in the Impeller Assembly if the vacuum
on the clean side of the lter gets too high as a result of a
clogged Filter. When the switch is activated, the LCD will
display an icon to the operator.
The removable Filter Shaker Assembly vibrates the
Filter when the lter shaker switch is pressed to shake
large particles from the input side of the Filter back into
the hopper. This reduces Filter maintenance and helps
maintain adequate airow through the Filter. The Filter
Shaker Assembly will automatically switch on when the
sweep system is turned off.

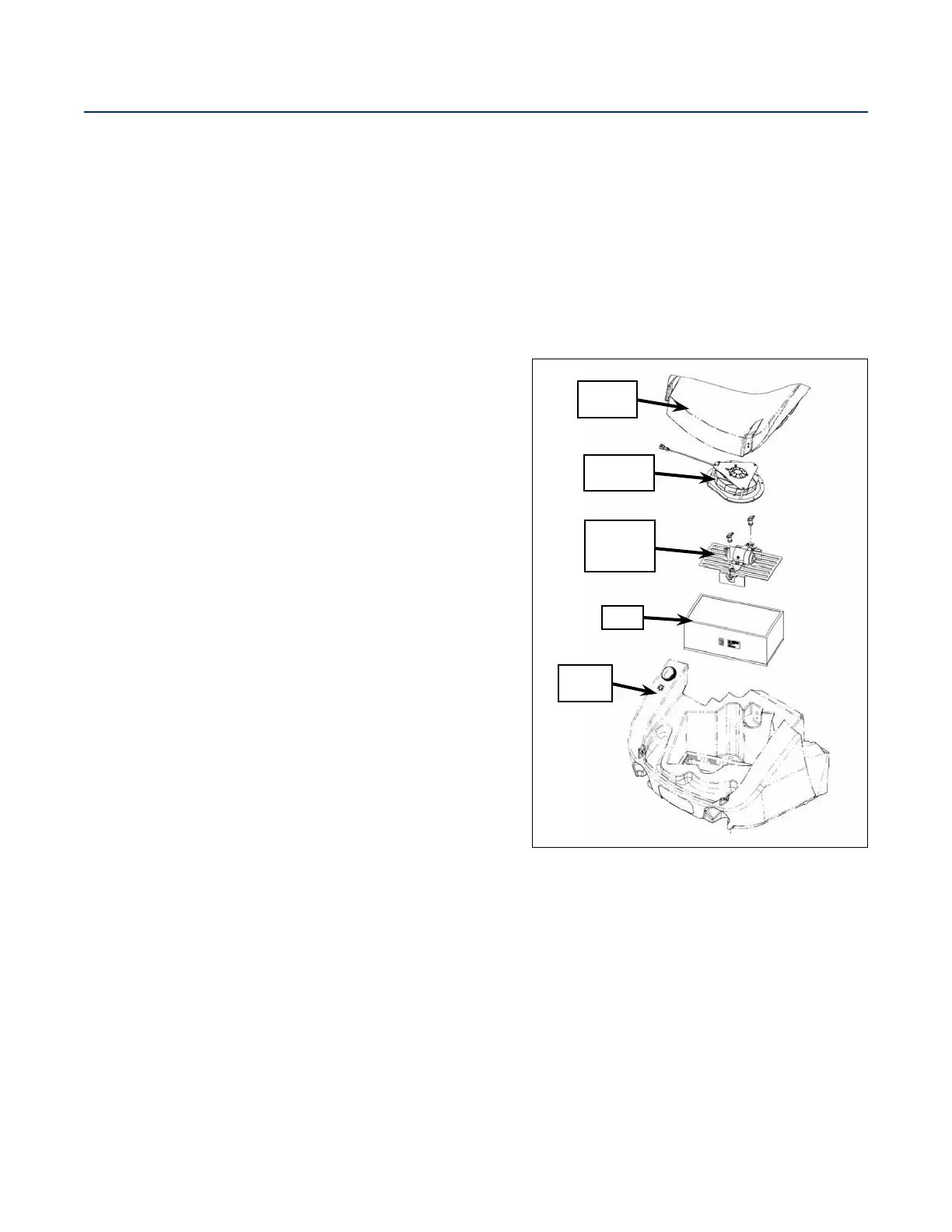

Hopper
Cover
Impeller
Assembly
Filter
Upper
Hopper
Filter
Shaker
Assembly
