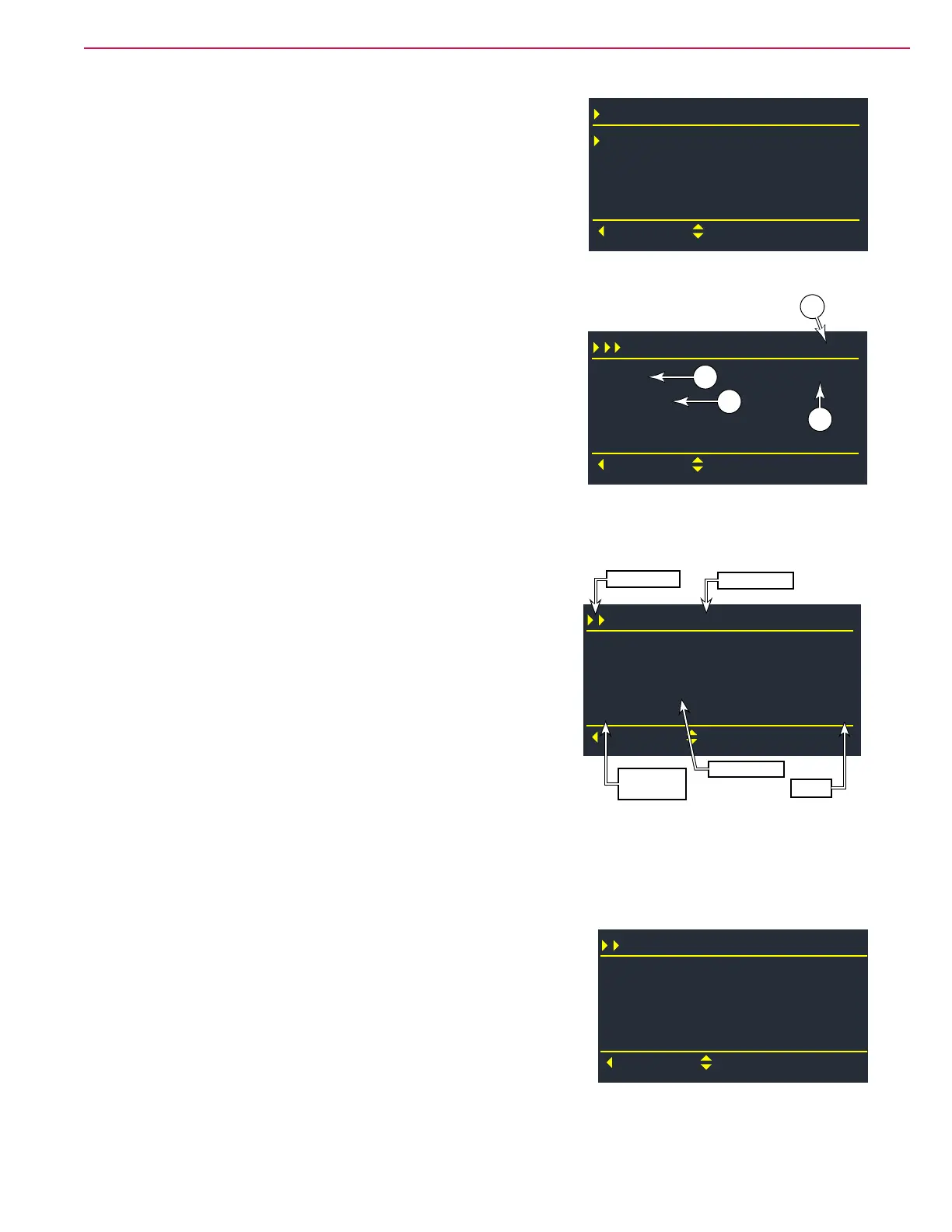

Hours Menu
The hours menu displays the amount of time the machine has been
active in each of the listed categories. The On Time represents
the total time that the machine has been powered up, regardless
whether it was active or sitting neutral. The remaining times
indicate how long the machine was active and performing the
specic functions. This information can be helpful when determining
which preventive maintenance tasks are due to be performed.
Faults Menu
The faults menu lists the active or past machine faults. This can be
helpful for troubleshooting, or for predicting a pending component
failure. For example, if a motor has a history of increasingly
frequent over-current errors, it may be a sign of a pending motor
failure.
The information displayed in each fault entry is: (A) Fault
occurrence number, (B) Error Code, (D) Drive-Time Hour Meter
when the fault occurred, and (C) Error Description.
Service Menu
The Service menu provides access to diagnostic tools for troubleshooting the machine. Except for the Panel
Test, each of these entries brings up a submenu for the applicable
system module or function.
A1 Main Controller
In addition to communicating with the other machine controllers, the main controller includes some direct
input and output functions for sensors and low-power devices. This menu displays the status of the various
input and output signals.
This menu is effective for troubleshooting by verifying whether the controller’s inputs and outputs are active/
inactive as expected to be. Refer to the schematic and schematic identier for the purpose of each listing.
