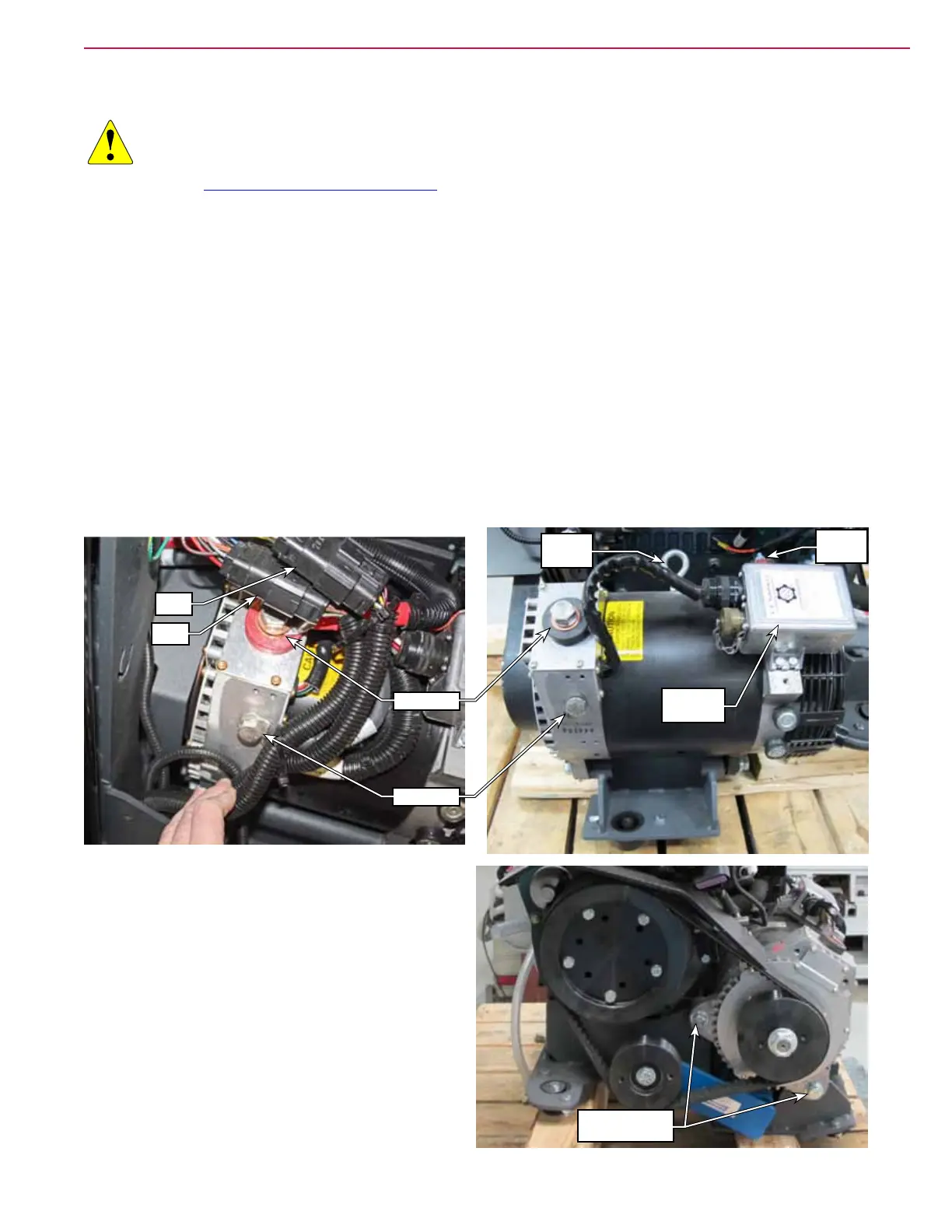

118Service Manual – CS7010™ 24 - Electrical System
Alternator-Generator
WARNING: Severe arc-ash hazard. Use caution when working with the main battery terminals to
avoid shorting across the battery.
1. Remove the Alternator-Generator Drive Belt described on page 116. In conjunction with that
procedure, also remove the belt guard when removing the tank guard.
• Verify that the main battery cables are still disconnected from the drive belt procedure.
2. Unbolt the dust curtain to expose the front of the engine area.
3. Disconnect the X112 and X113 hopper harness connectors, and free up all of the nearby wiring away
from the generator.
4. Remove the two main battery positive cables from the generator. Make note of washer and cable
sequence for later reassembly.
5. Remove the two main battery negative cables from the generator. Make note of washer and cable
sequence for later reassembly.
6. Remove the orange ignition wire from the voltage regulator.
7. Check to make sure no additional wires, cables, or other components can get snagged on the generator
during removal.
Ignition
(Bat+)
X112
Batt Pos
X113
Batt Neg
Voltage
Regulator
Lifting
Eye
8. Remove the two front and one rear mounting
screws that secure the generator to the engine
frame.
9. Using necessary slings and/or the lifting eye, lift
the generator out of the machine.
Front Mounting
Screws
To Next Page
