15Service Manual – CS7010™ 03 - General Information

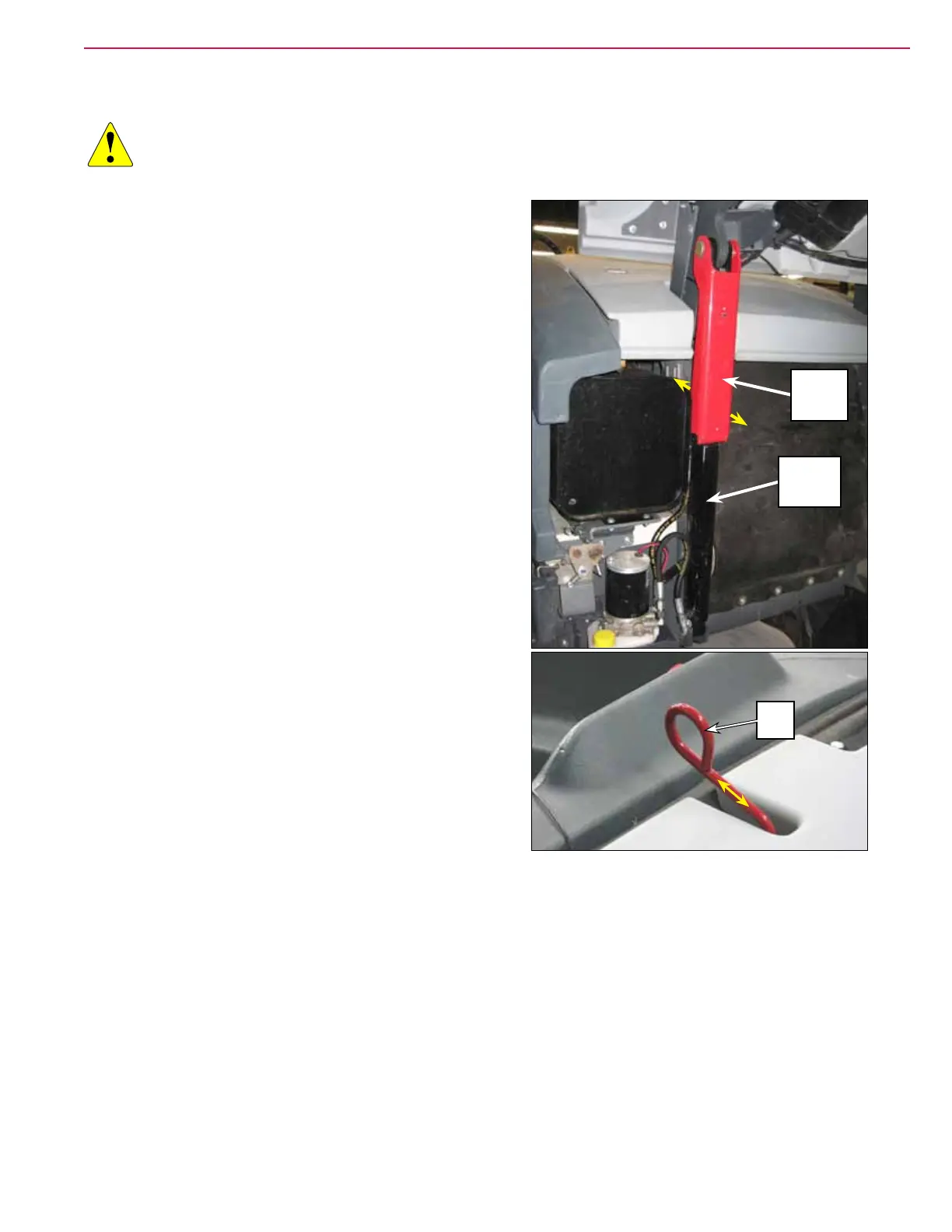

Hopper Prop Rod
CAUTION: Never work underneath the raised hopper without the hopper prop rod engaged.
To Engage the Hopper Prop Rod
1. Press and hold the hopper raise button to raise the
hopper all the way up.
2. Pull the pull rod to pivot the bottom of the hopper prop
rod toward the hopper lift cylinder until it contacts the
hopper lift cylinder.
3. Press and hold the hopper lower button to lower the
hopper until the hopper prop rod contacts the top of the
hopper lift cylinder.
To Disengage the Hopper Prop Rod
1. Press and hold the hopper raise button to raise the
hopper slightly so the hopper prop rod lifts off of the
hopper lift cylinder.
2. Push the pull rod to pivot the bottom of the hopper prop
rod away from the hopper lift cylinder.
3. Press and hold the hopper lower button to lower the
hopper.
Hopper
Prop
Rod
Hopper
Lift
Cylinder
Pull
Rod
