211Service Manual – CS7010™ 30 - Solution System
EcoFlex™ Detergent Bottles and Pumps

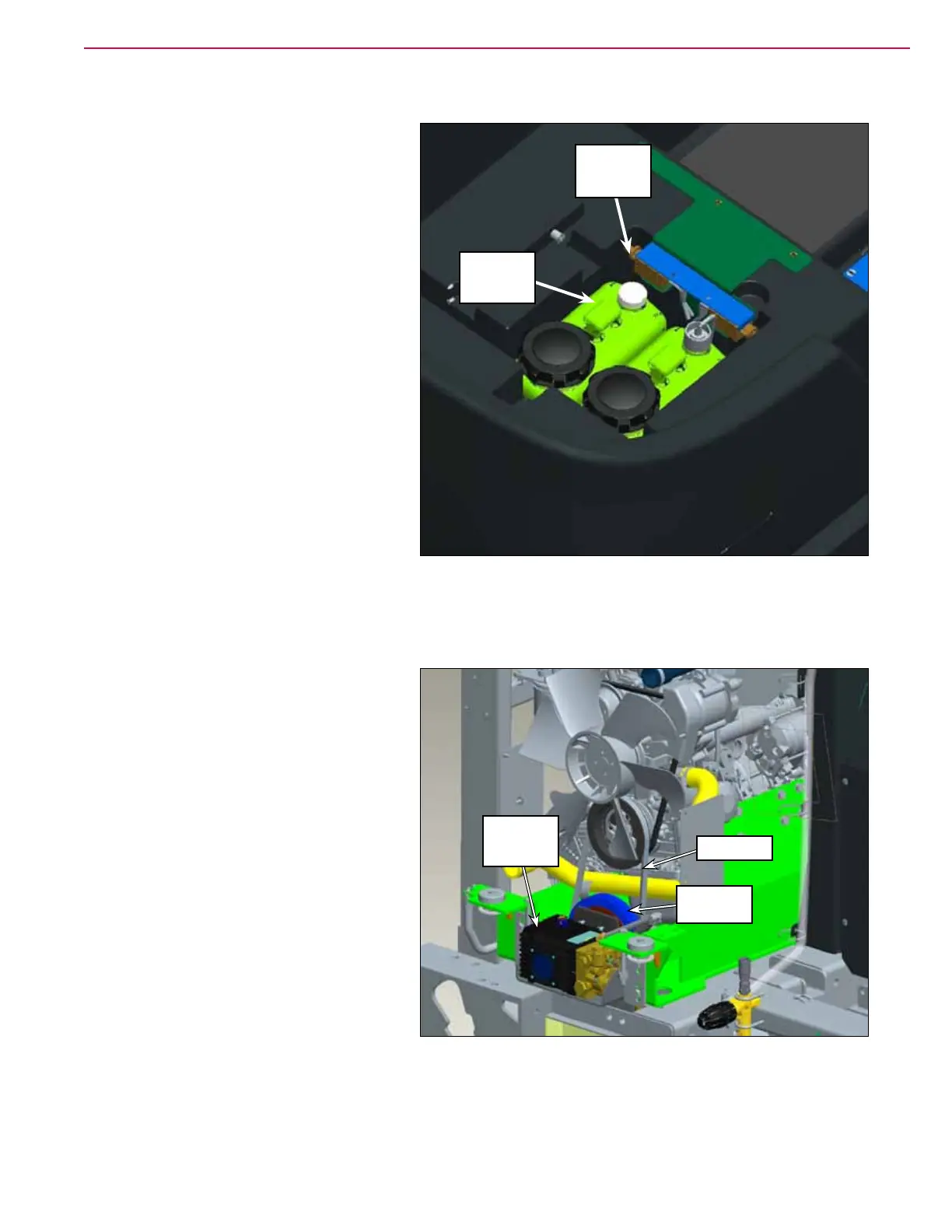

The EcoFlex™ Detergent Bottles are
located underneath the Operator seat and
supply detergent to the two EcoFlex™
Detergent Pumps. The two EcoFlex™
Detergent Pumps run simultaneously and
pump detergent through separate lines
that merge into one main detergent supply
line. The detergent supply line is plumbed
into the solution supply upstream of the
solution solenoid valve.
High-pressure Spray System Pump
The High-pressure Pump is driven by an
Electric Clutch run by a Pulley off of the
engine. The Electric Clutch is engaged and
drives the High-pressure Pump when the
Operator presses the high-pressure wand
switch on the control panel.
EcoFlex™
Detergent
Bottle (2)
EcoFlex™
Detergent
Pump (2)
High-
pressure
Pump
Electric
Clutch
Pulley
