161Service Manual – CS7010™ 28 - Engine System, Diesel
Component Locations
• Fuel tank - Right side of engine compartment
• Fuel level sending unit - Top of fuel tank
• Fuel pump - Top of fuel tank
• Fuel lter - Front left engine compartment area. Mounted on frame between engine and hopper.
• Injector pump
• APECS Governor Controller - Front engine area mounted on engine.
• Glow plugs
• Glow plug relay - Electrical panel area
• Engine starter
• Alternator (42v)
• Engine alternator (12v)
• Oil pressure switch
• Coolant temperature switch
• Actuator
• Engine RPM sensor
• Air Cleaner

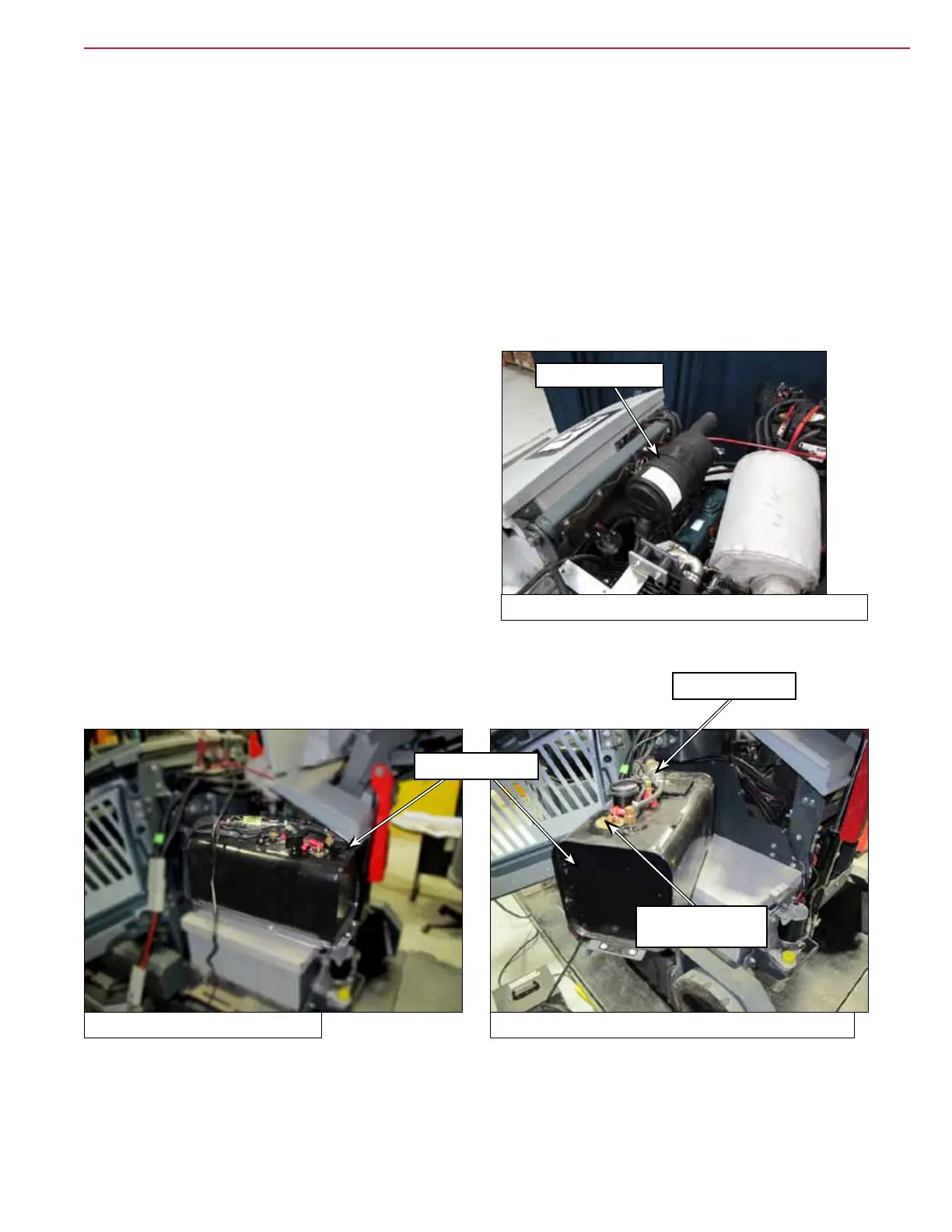

Fuel Tank (Shown with hopper up) Fuel Tank (Shown swung out)
Fuel Pump
Fuel Level Sending
Unit
Fuel Tank
Top of engine compartment with top covers removed
Air Cleaner
To Next Page
