37Service Manual – CS7010™ 04 - Control System

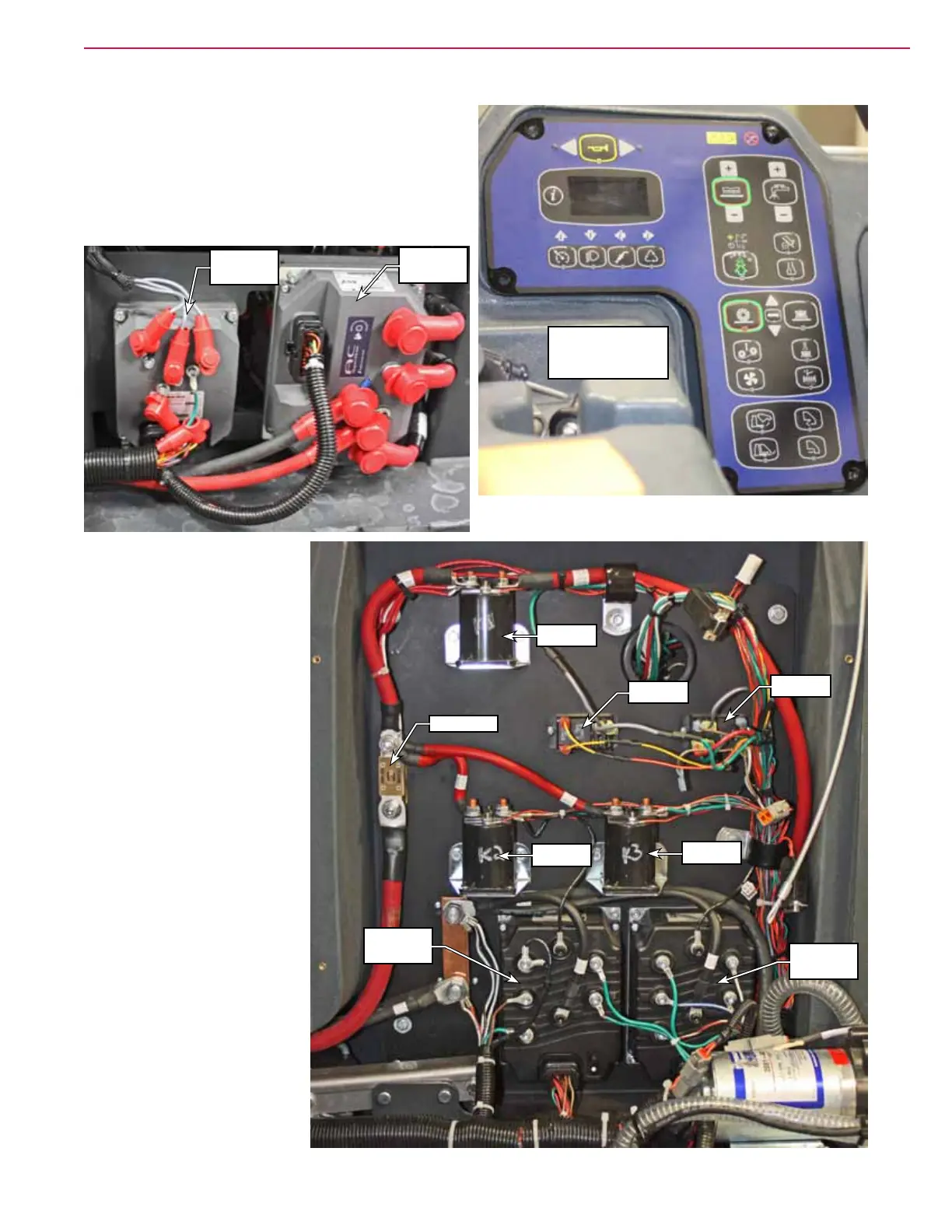

Component Locations

Drive

Controller

Steering

Controller

Main Machine

Controller &

Operator Interface

K4 Relay

K5 Relay

K3 Relay

K2 Relay

A2 Power

Module #1

K1 Relay

Main Fuse

A3 Power

Module #2
