Crescent CS7010 - Solution Solenoid Valve

223Service Manual – CS7010™ 30 - Solution System
Solution Solenoid Valve
Note: You can remove and the reinstall the solution solenoid valve with the scrub deck either in or
out of the machine.
1. Empty and remove the recovery tank from the machine.
2. Disconnect the Electrical Connector on
the Solution Solenoid Valve from the
adjacent wiring harness. Note that you
may need to cut the wire tie holding the
Solution Solenoid Valve wires to the
Solution Manifold.
3. Loosen the Hose Clamp holding the
Solution Solenoid Valve to the Solution
Manifold.
4. Remove the two Hex Head Screws
holding the Solution Solenoid Valve
to the deck assembly and remove
the Solution Solenoid Valve from the
machine.
5. Reinstall the Solution Solenoid Valve
following the above steps in reverse
order.

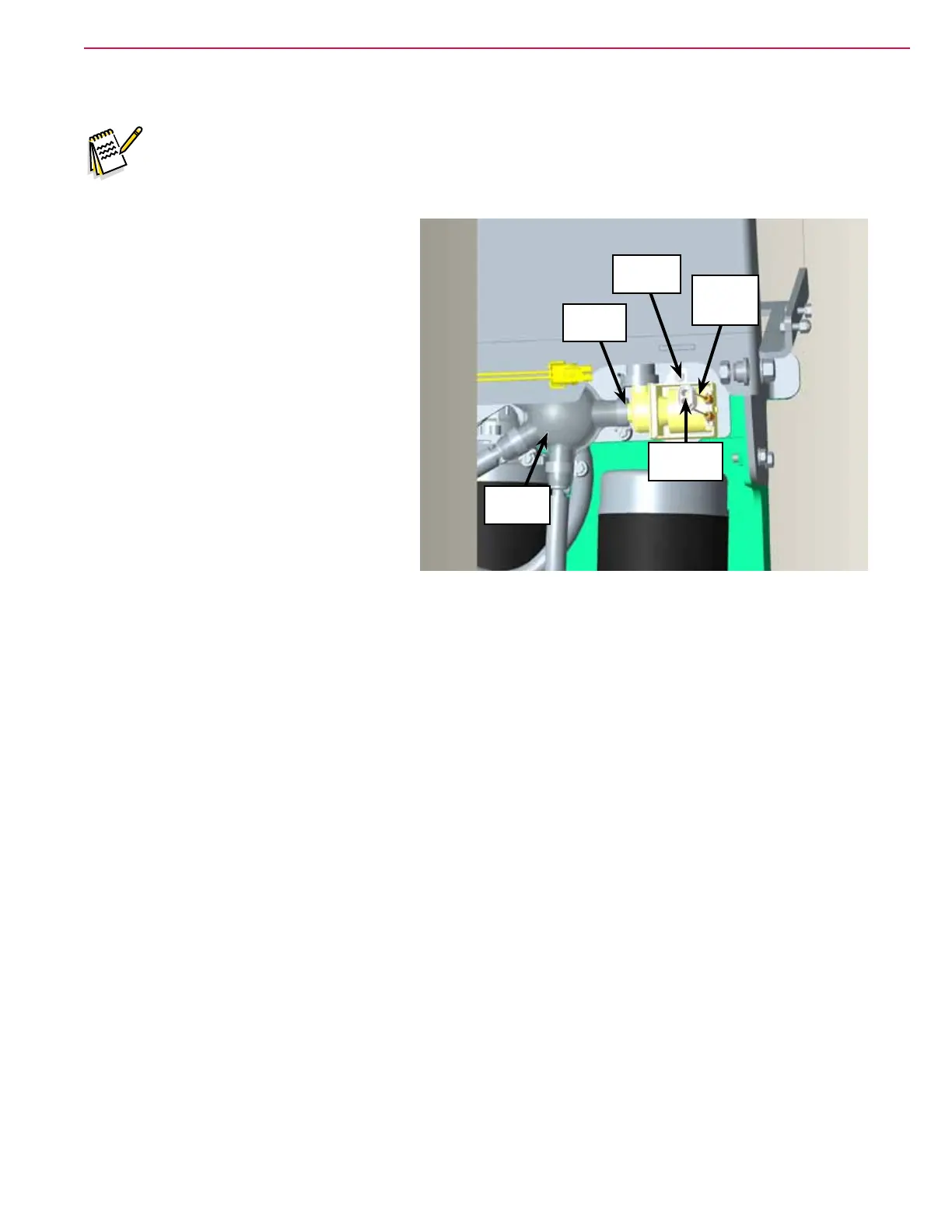

Hose
Clamp
Hex Head
Screw (2)
Solution
Solenoid
Valve
Electrical
Connector
Solution
Manifold
