241Service Manual – CS7010™ 38 - Squeegee System

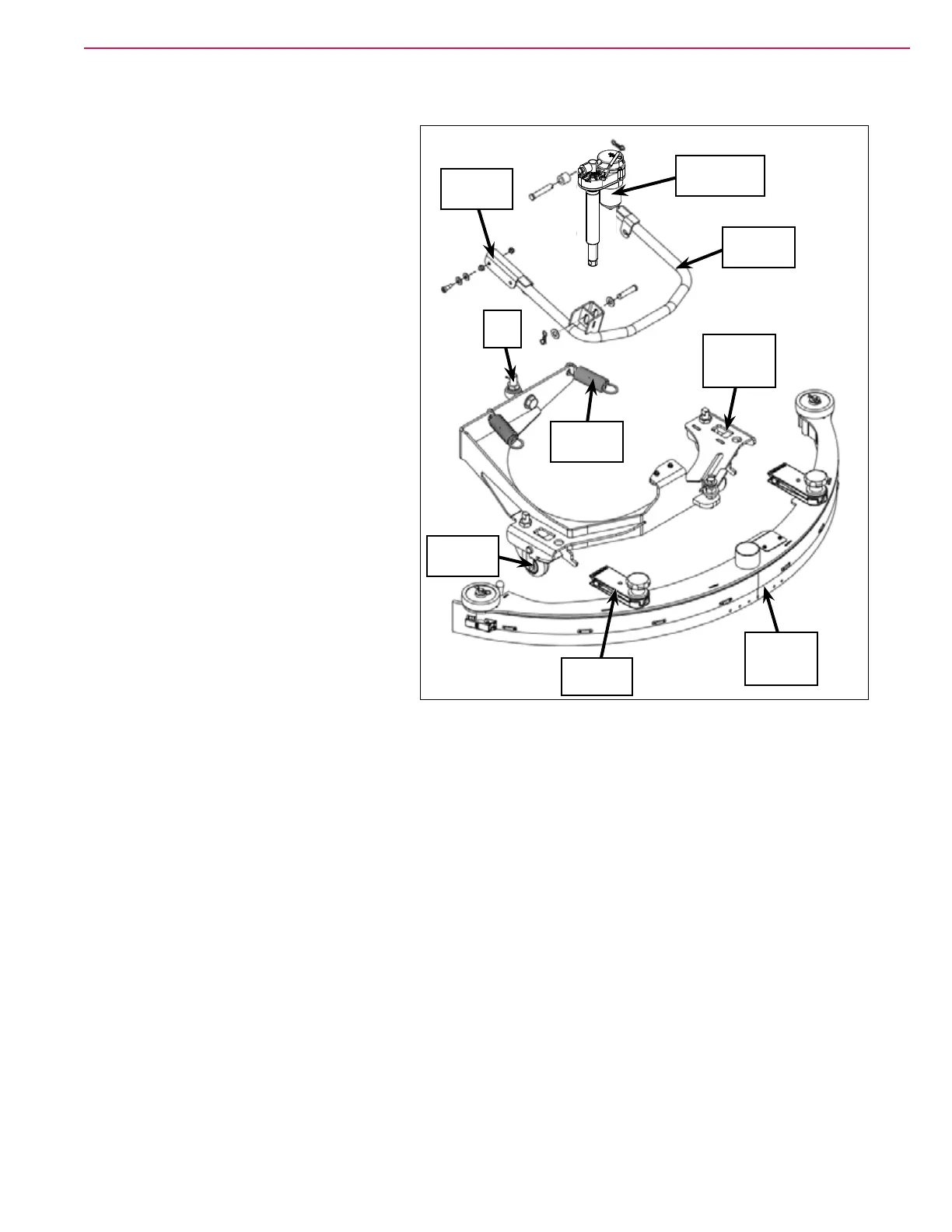

Component Locations
The rear squeegee assembly is attached
to the squeegee support assembly with
two split squeegee clips that clamp onto
horizontal pins in the squeegee support
assembly.
The front of the squeegee support assembly
is attached to the machine frame by a
pivoting rod end. This allows the rear of the
squeegee support assembly and attached
squeegee to tilt up and down, and pivot
side-to-side to conform to the oor surface.
The two squeegee casters support the
squeegee support assembly on the oor.
The rear of the squeegee support assembly
rests on and is supported by the squeegee
lift arm. The pivoting front brackets on
the squeegee lift arm are attached to the
machine frame. The squeegee lift actuator
raises and lowers the rear of the squeegee
lift arm, which pivots up and down to raise
and lower the squeegee support assembly
and the attached rear squeegee assembly.
The squeegee support assembly and rear
squeegee assembly swing left-to-right to
allow the rear squeegee assembly to pick
up water on the inside of the corner when
machine is turning. The extension springs
re-center the squeegee support assembly
and rear squeegee assembly once the
machine is again moving in a straight line.
Rear
Squeegee
Assembly
Squeegee Lift
Actuator
Squeegee
Lift Arm
Squeegee
Clip (2)
Squeegee
Support
Assembly
Rod
End
Front
Bracket (2)
Squeegee
Caster (2)
Extension
Spring (2)
To Next Page
