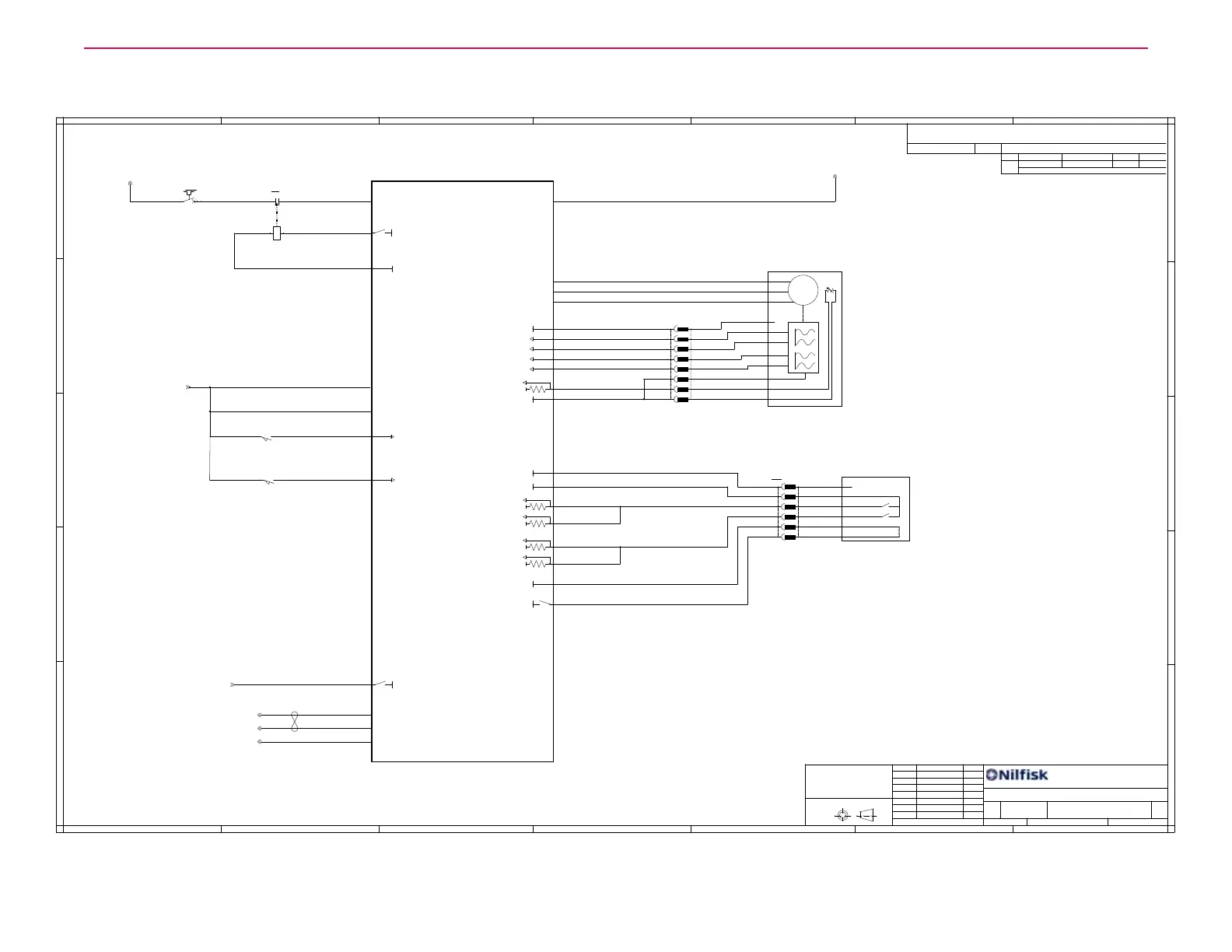

LADDER DIAGRAM
A5
STEERING CONTROLLER
B+ B-
U
V
W
ENCODER IN 1A
TEMP SENSOR
TFD CONTROL (-)
6 OF 11
56511580
56511580
BROOKLYN PARK, MINNESOTA 55445
NILFISK
CS7010
(JJ) TO 5B5
J6-7
J6-8
J6-26
J6-6
J6-23
J6-16
J6-30
J6-17
J6-31
J6-24
J6-19
J6-5
J6- 11
ENABLE DRIVE
J6-4
J6-29
J6-13
TFD CONTROL (+)
J6-1
J6-33
J6-21
J6-10
ENCODER IN 1B
ENCODER IN 3B
PWM
J6-27
KEY INPUT
APPLICATION CONFIG INPUT (HS_IN)
J6-3
J6-28
J6-15
SEE SHEET 1
J6-18
ENCODER IN 3A
(DIN_1)
(DIN_2)
(STEERING WHEEL POSITION SENSOR)
(TT) TO 5E5
5-18-17
5-18-17
JSB
SMJ
GRY-WHT
BLK
BRN
RED
VIO-GRY
WHT-GRY
PINK
BLK
BRN-GRN
VIO-WHT
WHT-PNK
RED-GRN
RED-BLU
GRN-WHT
GRN-WHT
GRN-BLK
GRN-BLK
RED
BLK
ORN-GRN
YEL-BLU
YEL-BLK
YEL
GRN
BLK
WHT
ORN-BLU
ORN
ORN
ORN ORN-RED
VIO-PNK
ORN
BRN-GRY
B-
RED
(CC) TO 5B3
(K1) TO 1B5 (MAIN CONTROLLER A1) CAN0 H
(K2) TO 1B4 (MAIN CONTROLLER A1) CAN0 L
B-
(H) TO 1B3 (KSI)
+5V
B-
X98
8
7
6
2
1
5
3
4
K5
CONTACTOR, STEERING
1 2
B+
B-
B+ (HS_OUT)
ENCODER IN 4A +4.4V
B- (OD_1)
SW12
SWITCH, RIGHT TRAVEL LIMIT
21
CB4
STEER BY WIRE 25 AMP
1 2
X275
8
7
6
2
1
5
3
4
+3V
ENCODER IN 2A +4.4V
SW11
SWITCH, LEFT TRAVEL LIMIT
21
1
2
3
4
5
6
B-
M
3~
U
V
W
GND
STEERING ACTUACTOR
+12V
GND
M10
E1
TORQUE FEEDBACK DEVICE
RED
5V SENSOR SUPPLY
BLK
B- SENSOR (GND)
BLU
V+ BRAKE COIL
WHT
V- BRAKE COIL
GRN
OUTPUT 1
ORN
OUTPUT 2
X56
1
2
3
4
5
6
B- (OD_2)
ENCODER IN 2B +4.4V
ENCODER IN 4B +4.4V
+12V
