Crescent CS7010 - Hopper Dump Door Actuator

318Service Manual – CS7010™ 52 - Hopper System

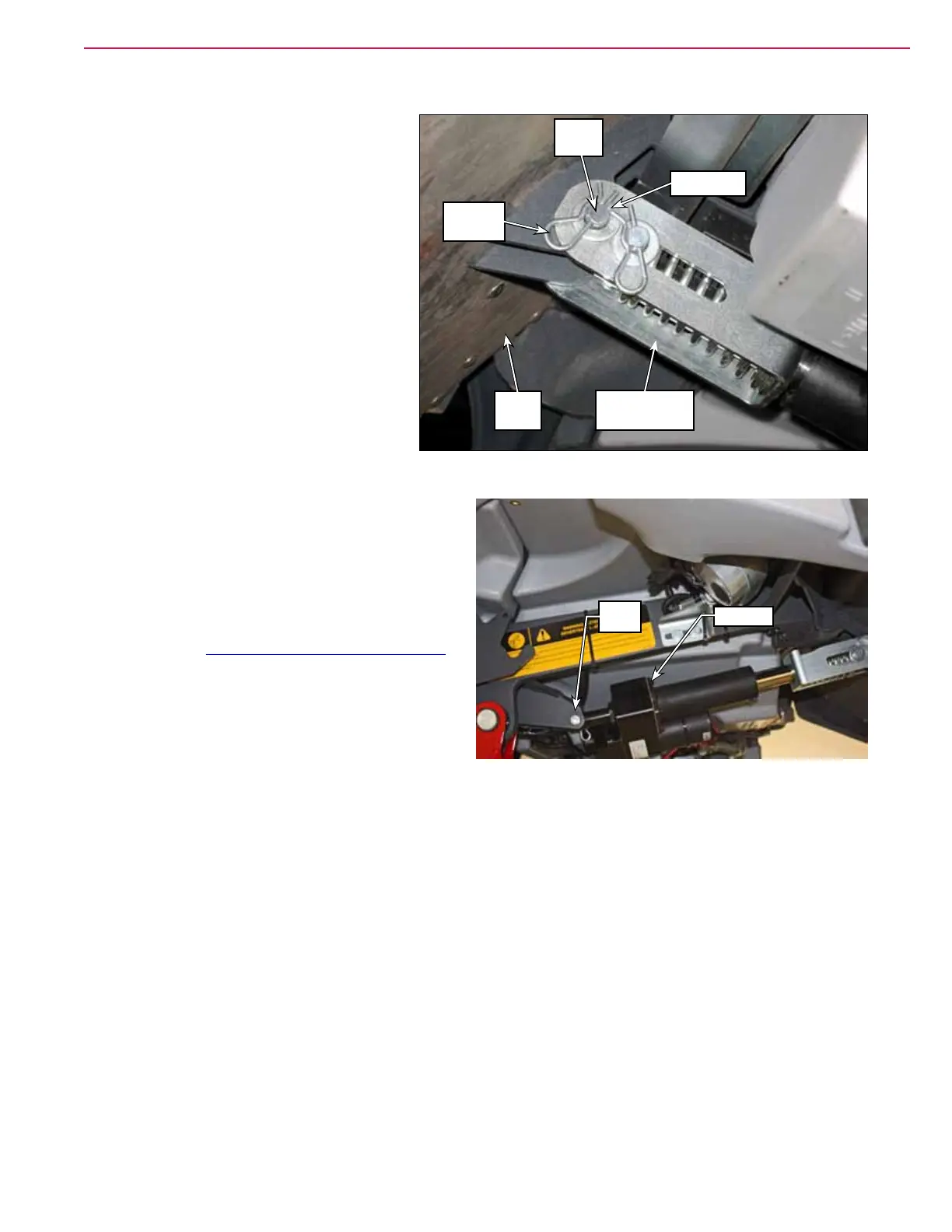

Hopper Dump Door Actuator
1. Open the hopper and engage the hopper
prop rod.
2. If possible, open the hopper dump door to
relieve the tension on the hopper dump
door actuator.
3. Remove the cotter pin, washers and
clevis pin holding the dump door
actuator yoke to the dump door.
• Lifting the dump door up slightly as
you remove the clevis pin will make
it easier to remove the clevis pin
from the dump door and dump door
actuator yoke.
• You don’t need to remove the second
clevis pin that holds the actuator to
the actuator yoke.
4. Disconnect the actuator electrical connector.
5. Remove the cotter pin, washers and clevis pin
holding the dump door actuator to the machine
frame, and remove the actuator from the
machine.
6. Perform the Dump Door Actuator Adjustment
described on page 308.
Cotter
Hair Pin
Clevis
Pin
Washer (2)
Dump Door
Actuator Yoke
Dump
Door
Clevis
Pin
Actuator
