24 - Electrical System 136Service Manual – CS7010™

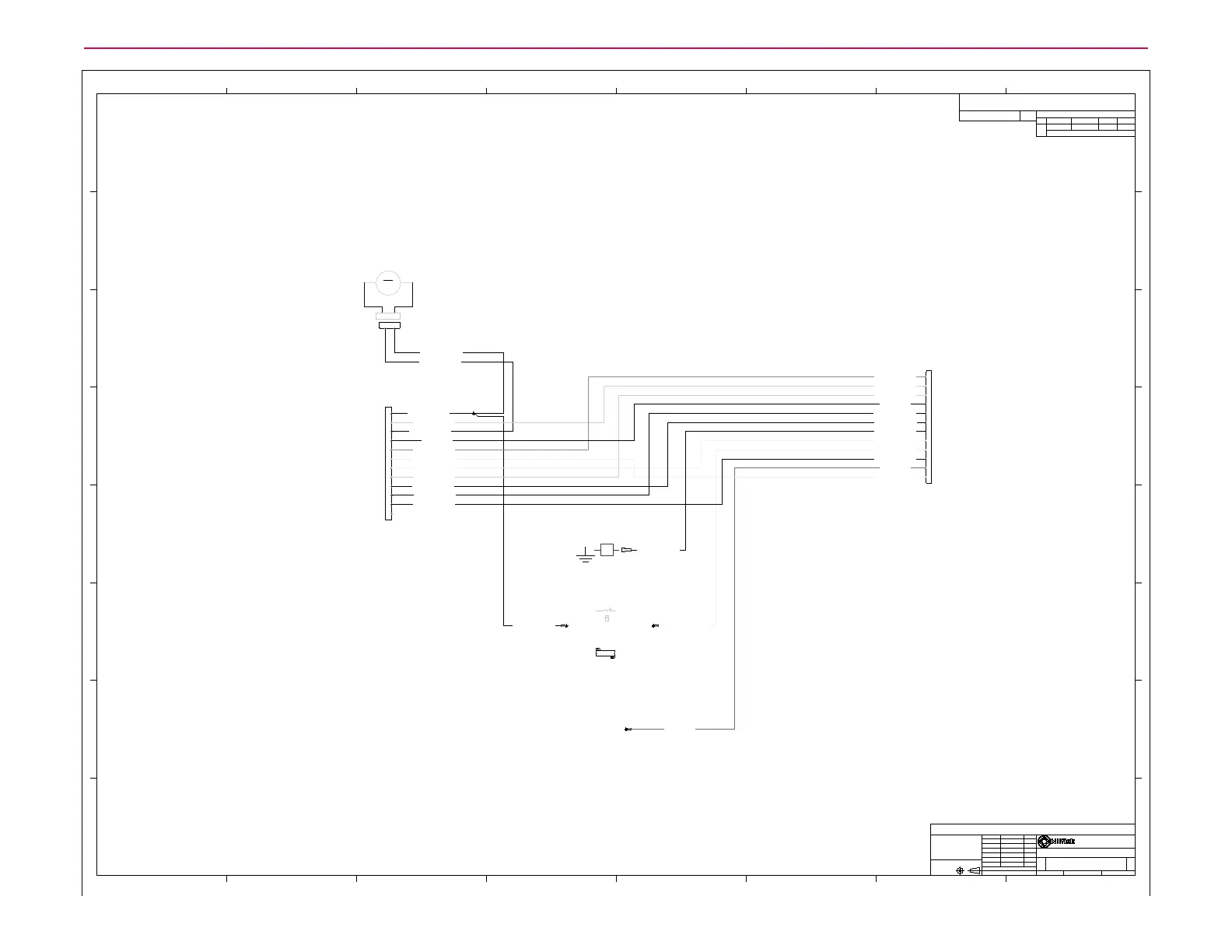

Sheet 5: LEV Engine Interface
CONFIDENTIAL
THIS DRAWING AND THE DESIGN REPRESENTED HERON IS THE PROPERTY OF NILFISK INC.,
BROOKLYN PARK, MINNESOTA AND IT HAS BEEN ISSUED WITH THE UNDERSTANDING THAT IT WILL NOT BE REPRO-
DUCED NOR COPIED NOR USED FOR ANY PURPOSE OTHER THAN FOR WHICH IT WAS ISSUED AND RECIPIENT
AGREES TO RETURN IT UPON REQUEST.
NAN/A
DIM. IN [ ] ARE MM.
UNITS IN [ ] ARE ISO METRIC
AS NOTED.
SIZE
PRO-E DATA
APPROVED
NOTES UNLESS OTHERWISE
SPECIFIED
1.ALL DIMENSIONS IN INCHES.
2.DO NOT SCALE DRAWING.
3.ALL DIMENSIONS APPLY AFTER
PLATING AND HEAT TREATING,
BUT BEFORE PAINTING.
4.REMOVE ALL BURRS AND SHARP
EDGES.
APPROVED
APPROVED
PROJ ENG
CHECKED
DRAWN
MATERIAL: SEE PRO-E BOM
FINISH/COLOR: N/A
REVISIONS
APPDDFTMDATEECOREV
SHEET
DWG NO
REV
DWG NO
TITLE
SHEET
ASSY
SCALE
FUO
E
-NOTES-
56511641
HARNESS-LEV ENGINE INTERFACE
M
CONN
-+
SEE SHEET ONE
NILFISK INC.
BROOKLYN PARK, MN 55443
SPRINGDALE, AR 72764
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
E E
F F
G G
H H
ON DIESEL, PETROL, AND LEV-LPG
TO ENGINE HARNESS CONNECTOR
TO
X45 CONNECTOR
MAIN HARNESS
CONNECT X141 AND X142 TO
FUEL LEVEL SENDER FOR
DIESEL AND GAS MACHINES
AND TO LOW LP PRESSURE
SWITCH FOR LP MACHINES
5 OF 8
A
JSB
SMJ
5-18-17
CS7010
DIAGRAM-WIRING
56511581
56511581
5
X145
ALTERNATOR, 42V
X137
1
2
3
4
5
6
7
8
9
10
11
12
J7
1
2
3
4
5
6
7
8
9
10
11
12
X138
1
2
R1
FUEL LEVEL SENDER
1
2
SWITCH, LOW LP PRESSURE
SW5
Y1
PUMP, HIGH PRESSURE CLUTCH
ORN,16,W285
ORN,16,W285
TAN-RED,18,W286
TAN-RED,18,W286
SPL-34
BLK-RED,18,W287
BLK-RED,16,W321
PNK-YEL,16,W288
PNK-YEL,16,W288
BLK-RED,18,W291
YEL-RED,18,W289
YEL-RED,18,W289
GRN-YEL,18,W290
GRN-YEL,18,W290
BLU-PNK,16,W276
BLU-PNK,16,W276
PNK-YEL,16,W275
PNK-YEL,16,W275
X139
WHT-ORN,18,W281
WHT-ORN,18,W281
TAN-WHT,18,W283
TAN-WHT,18,W283
GRY,18,W278
GRY,18,W278
GRY-ORN,18,W279
GRY-ORN,18,W279
GRY-BLU,18,W280
GRY-BLU,18,W280
M25
MOTOR, FUEL GASOLINE PUMP
(OPTIONAL)
ORN-BLK,18,W351
ORN-BLK,18,W351
X141
X142
A
To Next Page
