263Service Manual – CS7010™ 42 - Sweep System, Main
Removal and Installation
CAUTION: Before removing or reinstalling any machine components, make sure the key switch is
off, the key is removed from the machine and the parking brake is engaged.

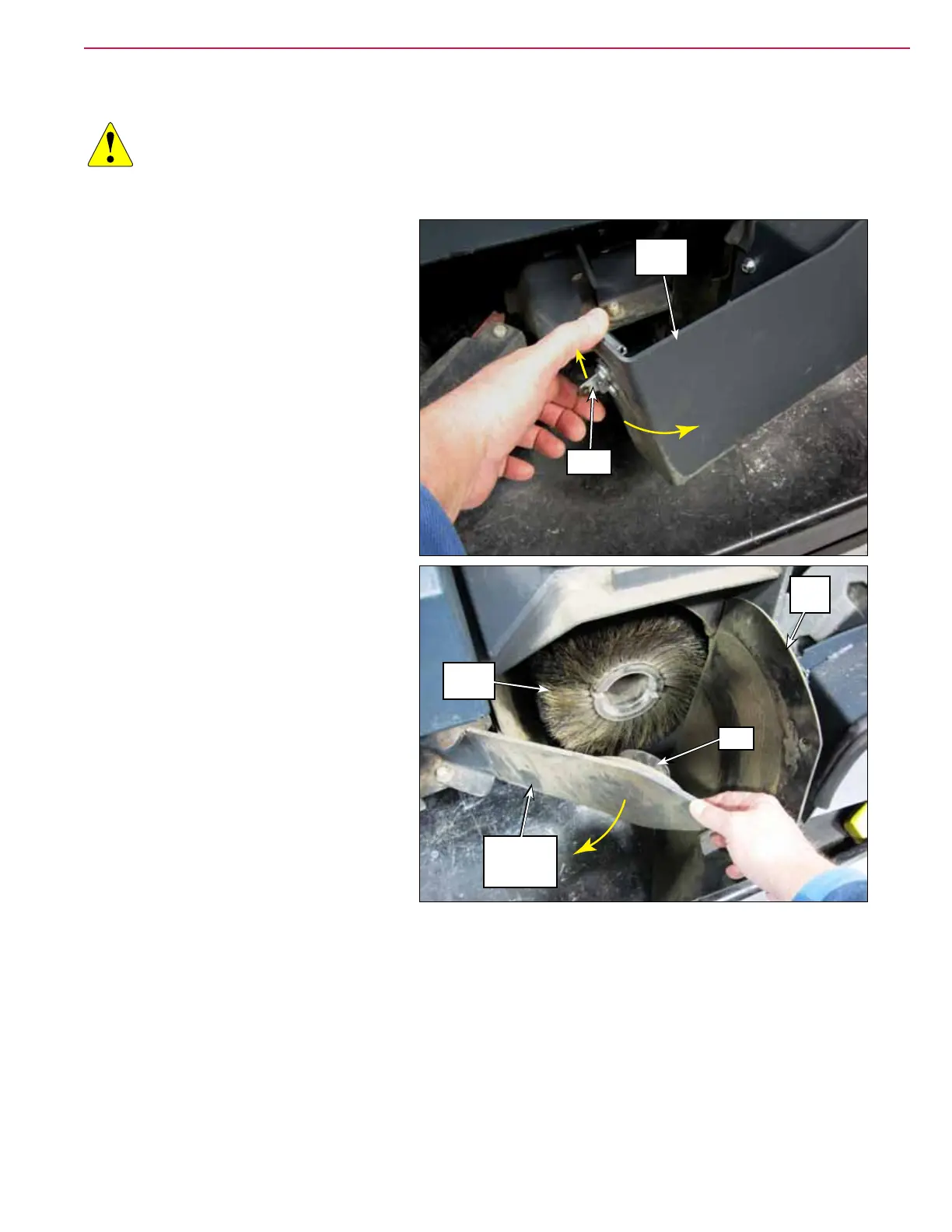

Main Broom
1. Make sure the main broom is in the
raised position.
2. Lift up the Latch and swing open the
Broom Door.
3. Move the Dust Flap out of the way and
swing open the Broom Arm Assembly.
4. Pull the Main Broom out of the machine.
Latch
Broom
Door
Main
Broom
Dust
Flap
Broom Arm
Assembly
Hub
To Next Page
