264Service Manual – CS7010™ 42 - Sweep System, Main
Replacement
1. Install the Main Broom into the machine. Rotate the Main Broom as necessary to make sure the broom
lugs on the far side engage the drive hub on the broom motor.
2. Close the Broom Arm Assembly, making sure the Main Broom engages the Hub on the Broom Arm
Assembly.
3. Move the Dust Flap back into position, then close and latch the Broom Door

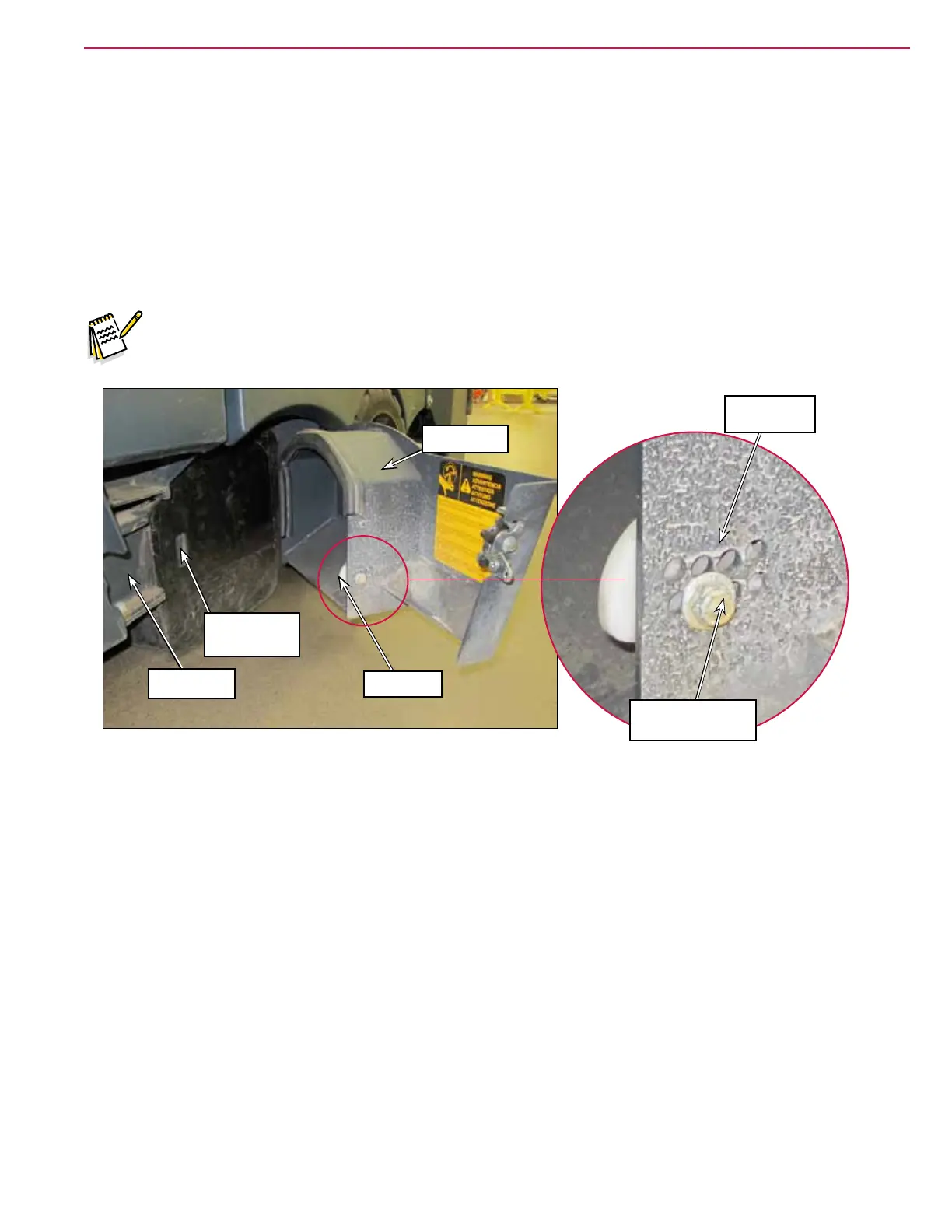

4. Check and adjust the broom Arm Stop on the Broom Door as necessary. The Arm Stop should be
adjusted to prevent the Broom Arm from moving outward while still allowing the door to latch easily.
Note: Make sure you adjust the main broom height when installing a new broom. Failure to do so
will reduce the life of the broom and may lead to setting a main broom overload error code
which will shut down the main broom.
Arm Stop
Arm Stop
contact area
Broom Door
Broom Arm
Adjustment
holes
Remove and
relocate to adjust
