Crescent CS7010 - Component Locations; Impeller and Filter System

285Service Manual – CS7010™ 50 - Dust Control/DustGuard™ Systems
Component Locations
Impeller and Filter System

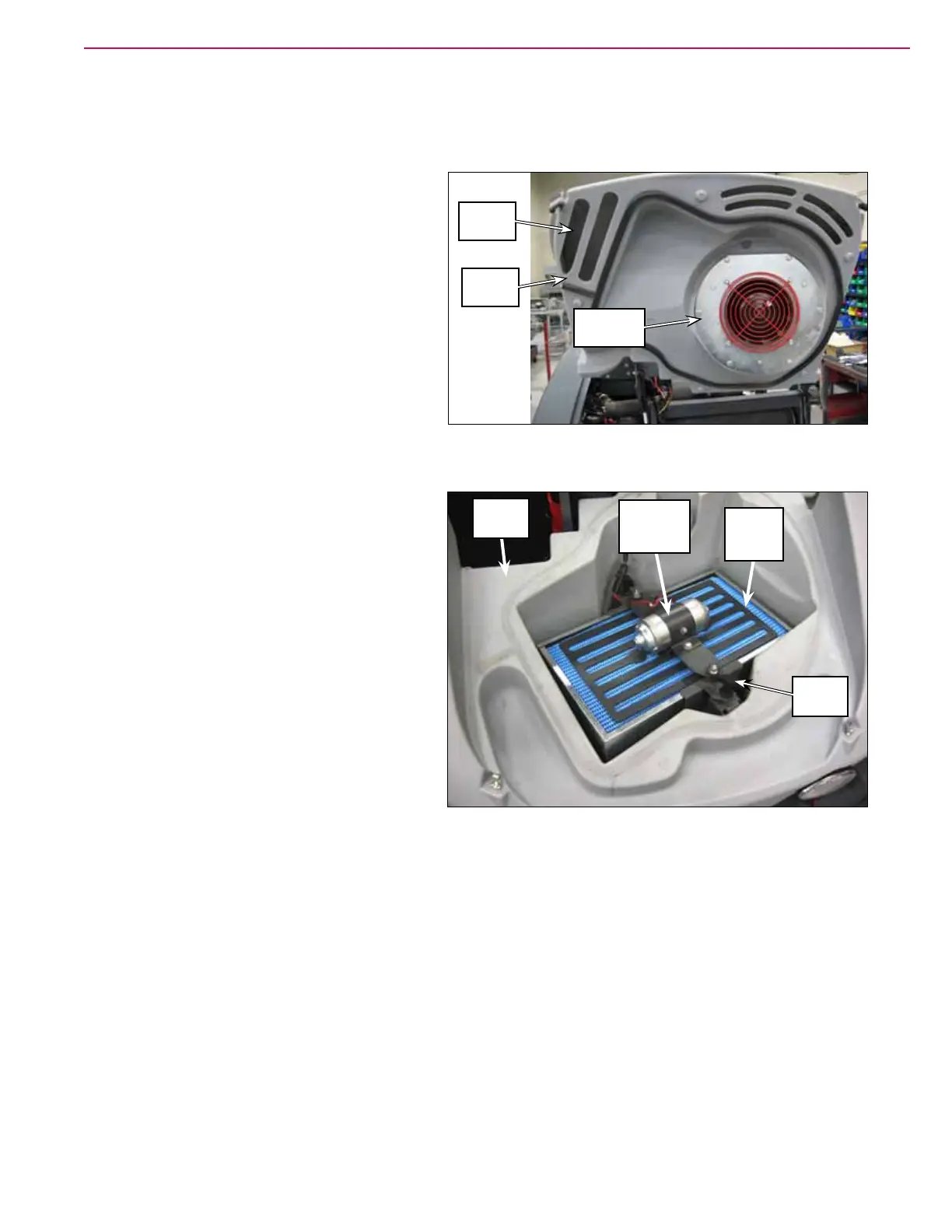

The Impeller Assembly houses the dust
control vacuum motor and is mounted in the
Hopper Cover. The Impeller Assembly pulls
air from the hopper through the lter. The
ltered air is exhausted through Vents in the
front of the Hopper Cover.
The rectangular Dust Control Filter seals
against the Upper Hopper and is held in place
by the Filter Shaker Assembly.
The electric motor in the Filter Shaker
Assembly drives two eccentric weights to
vibrate or “shake” the Dust Control Filter to
dislodge dust and allow it to drop down into
the hopper. Two Thumb Nuts secure the Filter
Shaker Assembly and Dust Control Filter to
the Upper Hopper.
Impeller
Assembly
Hopper
Cover
Vent
(typical)
Upper
Hopper
Dust
Control
Filter
Filter
Shaker
Assembly
Thumb
Nut (2)
