297Service Manual – CS7010™ 52 - Hopper System
Component Locations

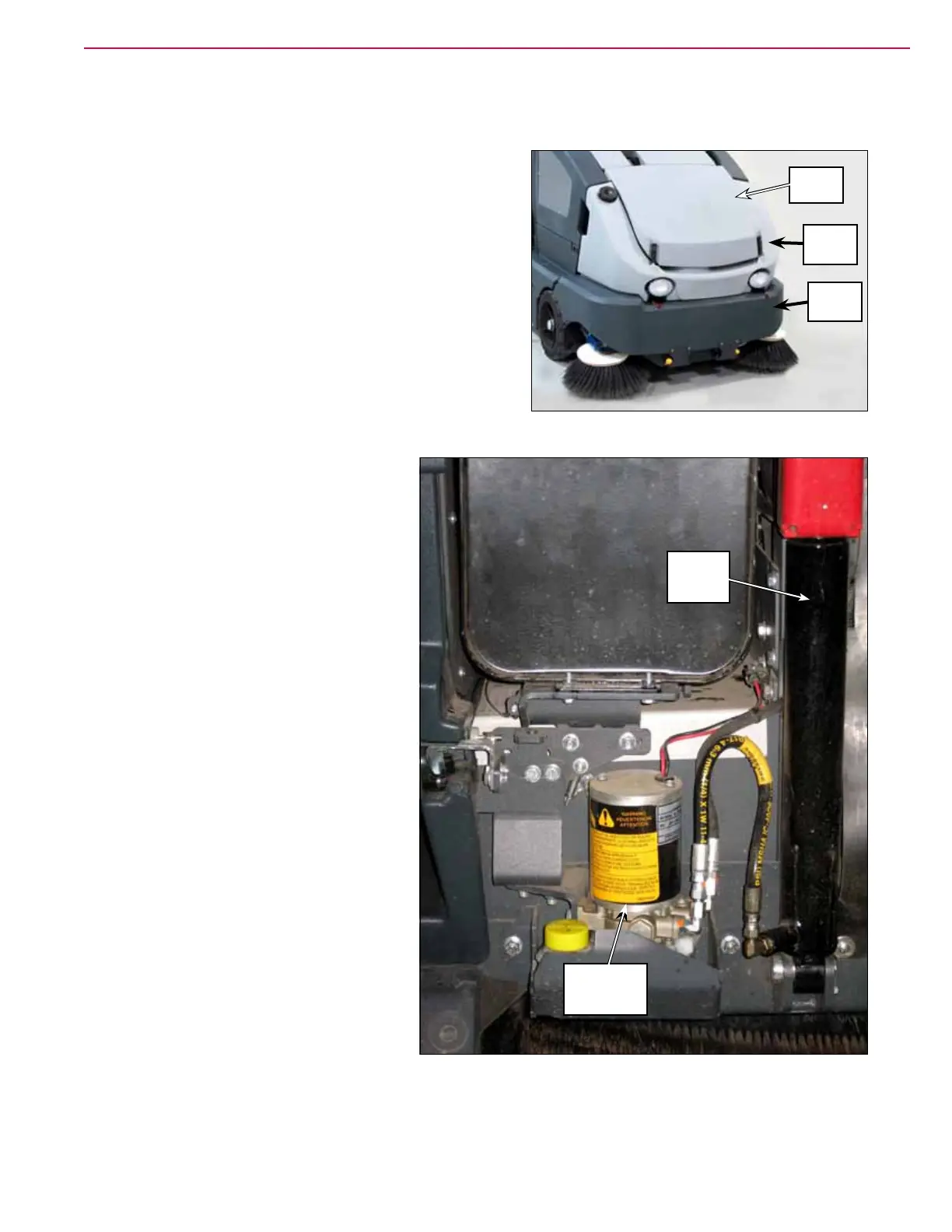

Upper and Lower Hopper
The Upper Hopper (light gray) and Lower Hopper (dark
gray) are on the front of the machine, The Hopper Cover
houses the dust control impeller pump, lter and lter
shaker assembly. The Upper and Lower Hoppers are
connected and pivot up and down as a single unit.
Hydraulic Power Pack Assembly
The Hydraulic Power Pack Assembly
is mounted on the front of the machine
frame and can be accessed when the
hopper is up. The Hydraulic Power Pack
Assembly extends and retracts the Hopper
Lift Cylinder which raises and lowers the
hopper.
Hopper
Cover
Upper
Hopper
Lower
Hopper
Hopper
Lift
Cylinder
Hydraulic
Power Pack
Assembly
