310Service Manual – CS7010™ 52 - Hopper System
Removal and Installation
CAUTION: Before removing or reinstalling any machine components, make sure the key switch is
off, the key is removed from the machine and the parking brake is engaged.
Hydraulic Power Pack Assembly
LPG and Diesel Models
1. Disconnect the battery.
2. Open the right engine side cover and remove the right battery tray cover.
3. Swing the fuel tank out.

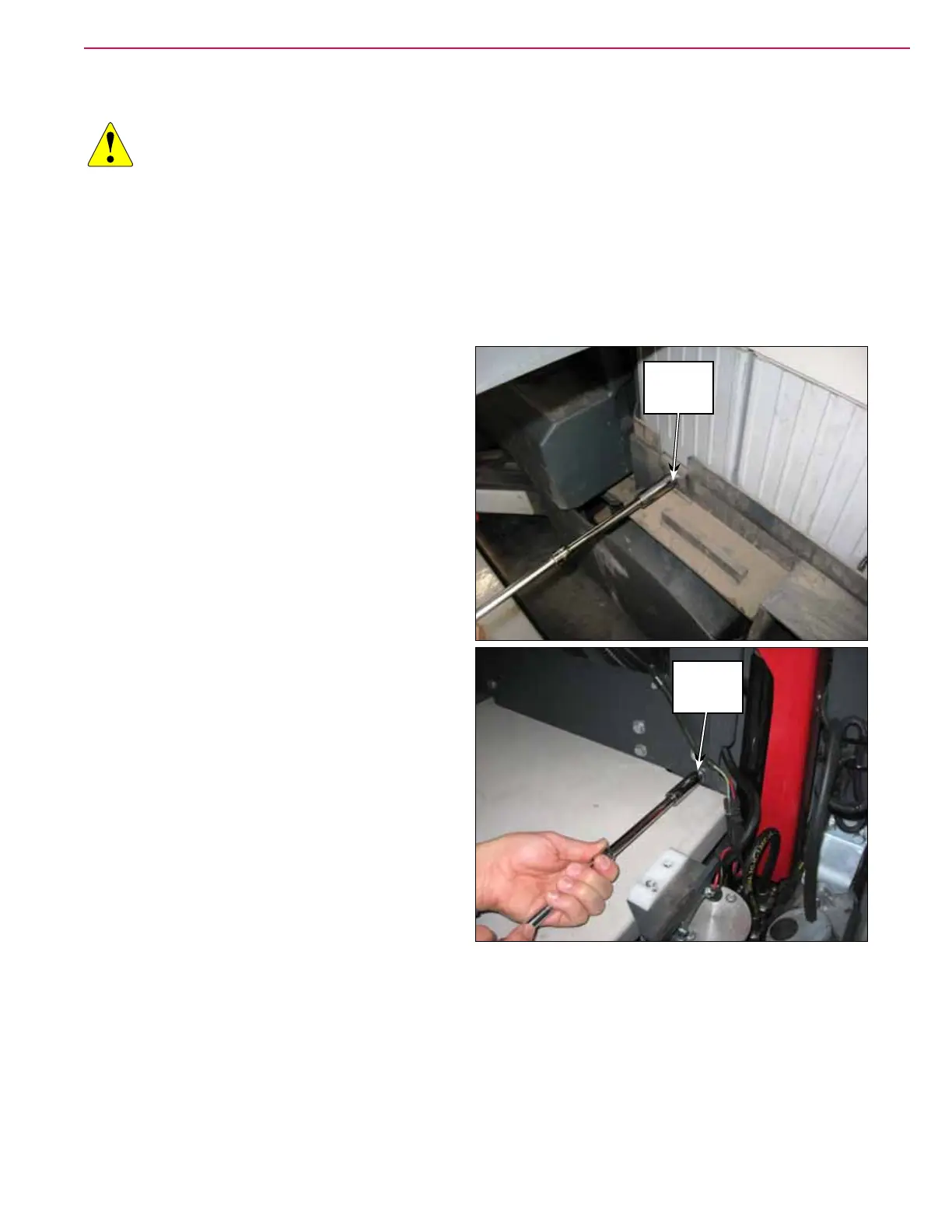

4. Remove the two Tray Mounting Bolts holding
the 36-volt battery pack tray to the frame.
Tray
Mounting
Bolt
Tray
Mounting
Bolt
To Next Page
