Crescent CS7010 - OLED Display

31Service Manual – CS7010™ 03 - General Information

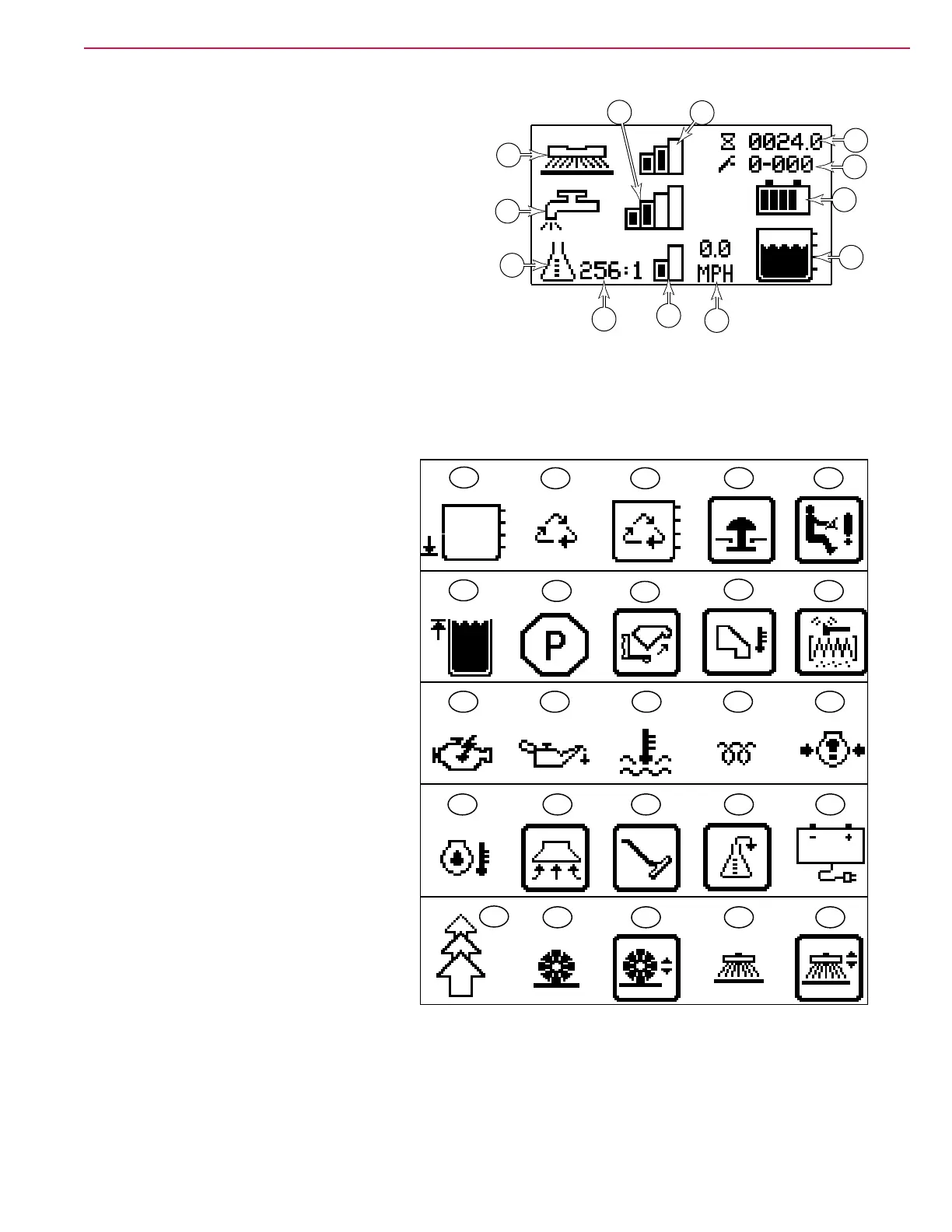

OLED Display
A. Scrub Pressure Indicator
B. Solution Flow Indicator
C. Detergent Indicator
D. Detergent Ratio Indicator
E. Detergent Indicator Bar Graph
F. Speedometer
G. Solution Tank Level Indicator
H. Battery Indicator
I. Active Fault Codes
J. Hour Meter
K. Scrub Brush Pressure Bar Graph
L. Solution Flow Rate Bar Graph
Additional Display Icons
C17 Solution Tank Empty Indicator
C18 Extended Scrub Indicator
C19 Tank with Extended Scrub
C20 Emergency Stop Activated Indicator
C21 No Operator Present Indicator
C22 Recovery Tank Full Indicator
C23 Parking Brake Indicator
C24 Hopper Raised Indicator
C25 Hopper Temperature Indicator (optional)
C26 Purge Indicator (EcoFlex models only)
C27 Check Engine Indicator
C28 Oil Pressure Indicator
C29 Engine Over-Temperature Indicator
C30 Glow Plug Caution Indicator (Diesel)
C31 Oil Pressure Indicator
C32 Engine Temperature Indicator
C33 Vacuum Mode Indicator
C34 Wand Mode Indicator
C35 Purge Indicator
C36 Battery Low Voltage Indicator
C37 Burst of Power Indicator (EcoFlex)
C38 Main Broom Indicator
C39 Main Broom Adjustment Indicator
C40 Side Broom Indicator
C41 Side Broom Adjustment Indicator
C
A
B
D
E
F
G
H
I
J
L
K
C25
C26
C27 C28 C29 C30 C31
C24
C22
C23
C32 C33 C34 C35 C36
C37
C38 C39 C40 C41
C20 C21
C18 C19
C17
