287Service Manual – CS7010™ 50 - Dust Control/DustGuard™ Systems
DustGuard Spray System

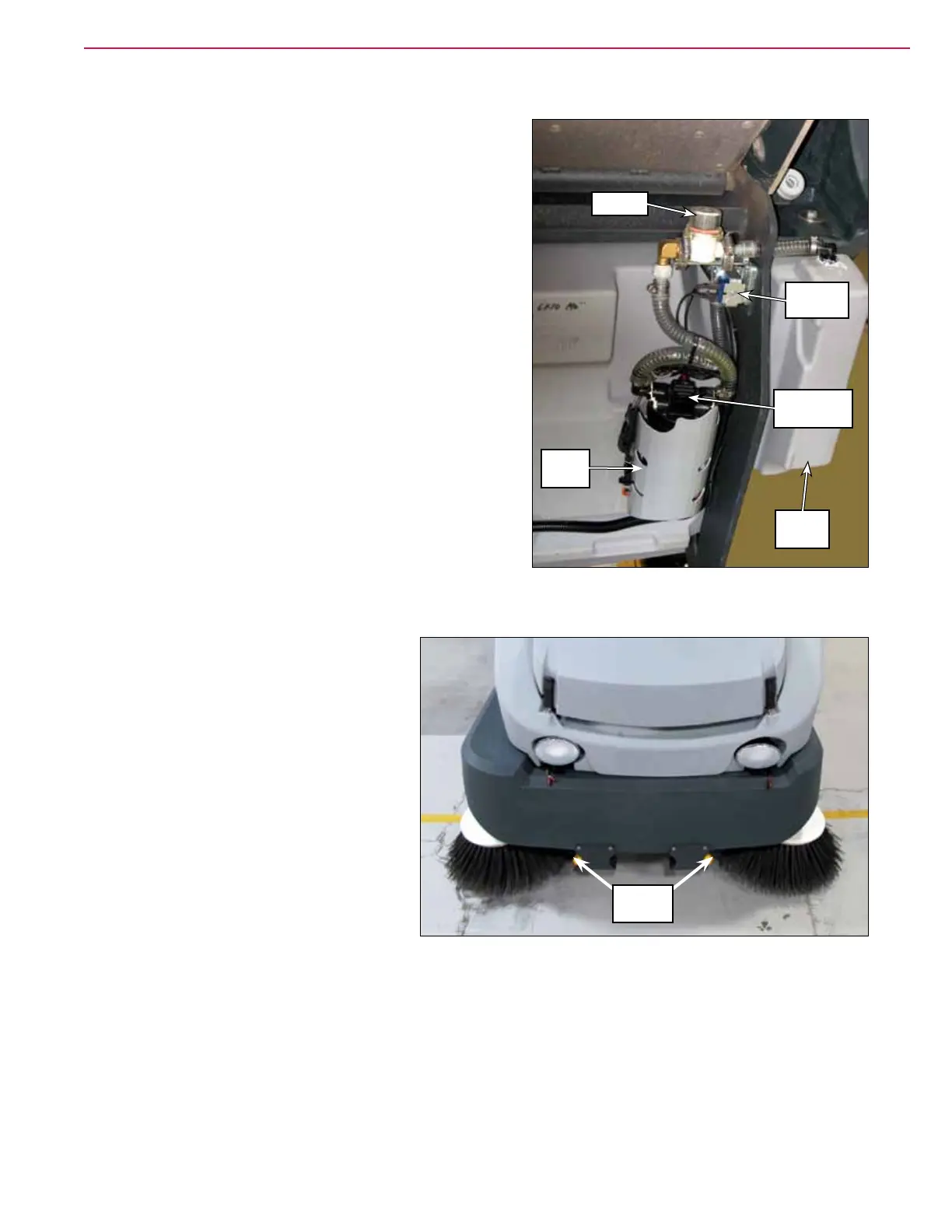

The DustGuard Pump is mounted on the Upper Hopper
and is protected by the Pump Guard. The Strainer screens
the incoming water upstream of the DustGuard Pump.
The Solenoid Valve, downstream of the DustGuard Pump,
opens to allow water ow to the nozzles when the power
to the DustGuard Pump is switched on.
The Spray Nozzles are mounted on the
front of the machine and spray an oval
pattern of water mist across the width of
each side broom.
Upper
Hopper
Pump
Guard
Strainer
Solenoid
Valve
DustGuard
Pump
Spray
Nozzles
