24Service Manual – CS7010™ 03 - General Information

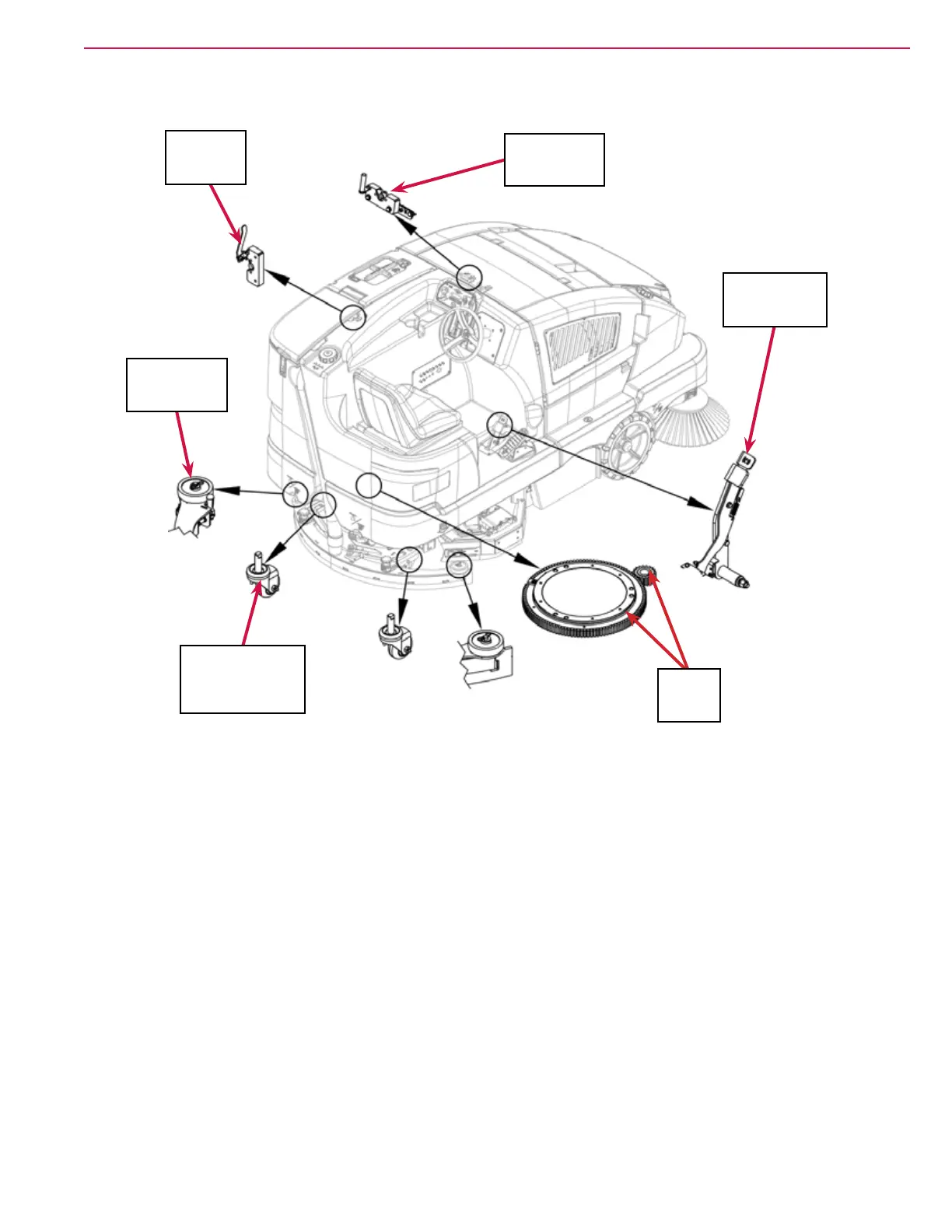

Lubrication Points

Engine/Battery

Compartment

Latch (oil)

Recovery

Tank Latch

(oil)

Squeegee Tool

End Wheel (2)

(oil)

Squeegee Caster

Wheel Axle and

Pivot (2) (grease)

Brake Pedal

(parking brake)

Linkage (oil)

Steering

Gears

(grease)
