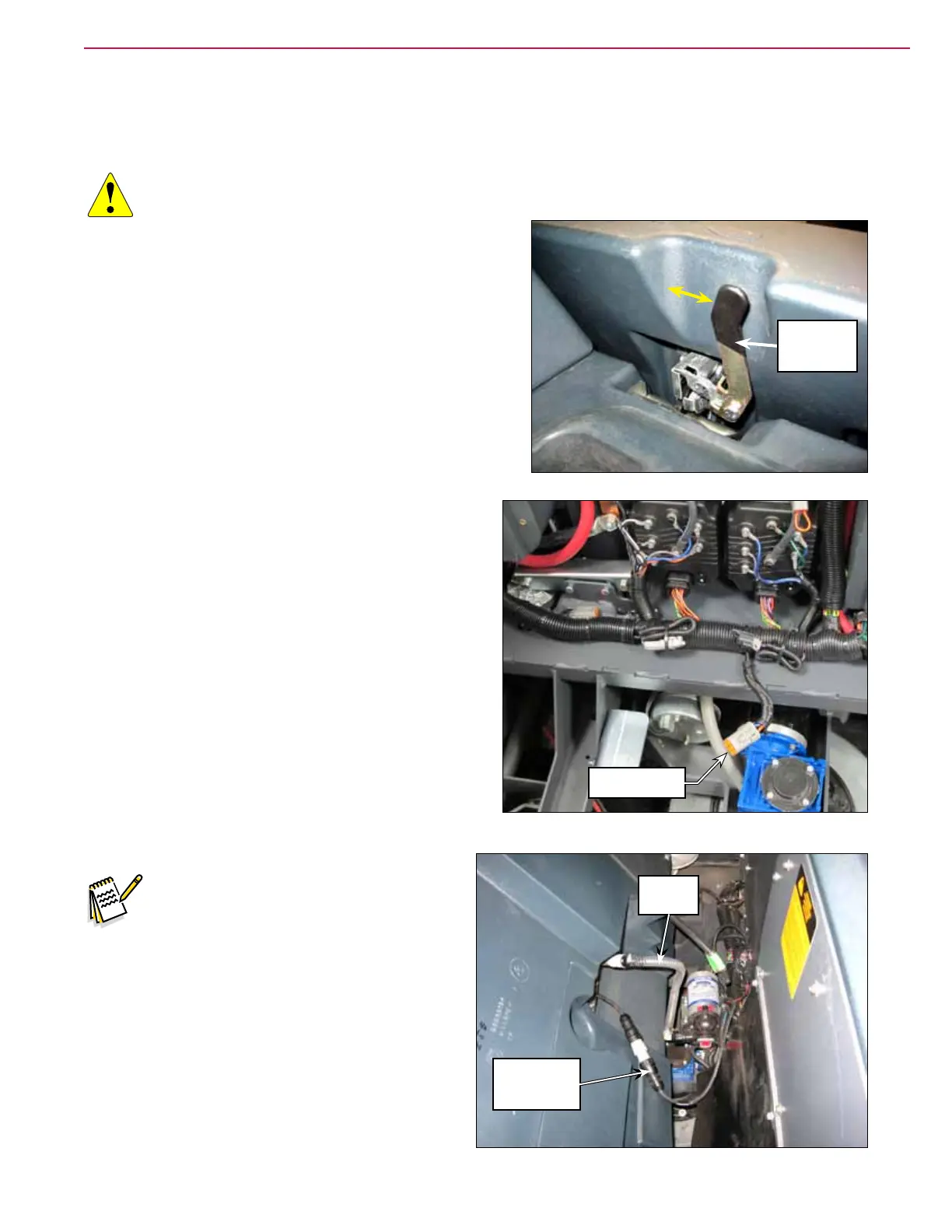

254Service Manual – CS7010™ 40 - Recovery System
Removal and Installation
Recovery Tank
CAUTION: The recovery tank is relatively heavy. It’s recommended that the recovery tank be
removed by two or more persons to prevent possible personal injury or damage to the
recovery tank.
1. Drain the recovery tank.
2. Release the recovery tank latch handle and tip the tank
away from the machine.
3. Remove the squeegee hose from the recovery tank.
4. Disconnect the recovery tank vacuum motor
electrical connector.
Note: If your machine is equipped with
an extended scrub system, you must
disconnect the oat switch wiring
harness and solution hose before you
can remove the recovery tank. These
are described in steps 5 and 6. If
your machine is not equipped with
an extended scrub system, skip to
step 7.
Recovery
Tank Latch
Handle
Vacuum Motor
Connector
Solution
Hose
Float Switch
Wiring
Harness
To Next Page
