255Service Manual – CS7010™ 40 - Recovery System

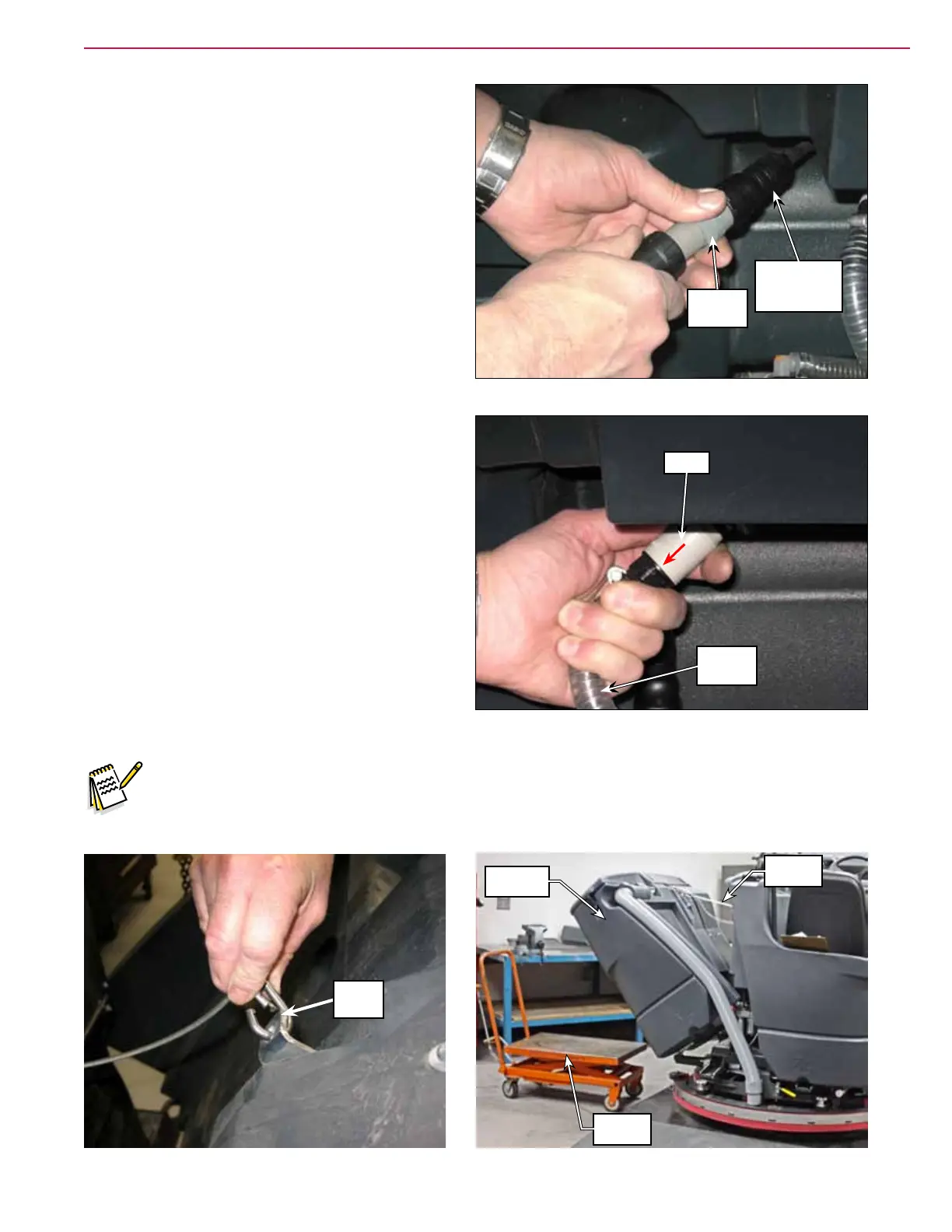

5. Loosen the knurled collar and disconnect the
oat switch wiring harness.
6. Pull the collar on the quick-disconnect tting
and disconnect the solution hose.
7. Disconnect the Tether Hook and carefully tip
and lift the recovery tank off of the mounting
pins on the machine frame.
Note: You may want to lay the recovery tank down onto a skid or other suitable platform on
a pallet jack in order to more easily move the recovery tank once it’s removed from the
machine.
Knurled
Collar
Float Switch
Wiring
Harness
Collar
Solution
Hose
Tether
Hook
Elevated
Support
Recovery
Tank
Support
Cable
To Next Page
