Illustration 5.77 Torque Segment
Sync segment
The Sync segment has the following properties:
•
Parameters
- Start position:
Species the axis position
at the beginning of the segment,
relative to the End position of the
previous segment. If the parameter is
left blank (unspecied), the logical CAM
position from the previous segment is
used as the starting position.
- Velocity ratio: Species the velocity of
the axis during this segment. The
velocity is calculated as a ratio between
the axis and the guide value (rev/rev).
The velocities of all segments that are
connected by the same node should be
the same to ensure smooth movement.
Incorrect parameterization results in a
jump in velocity.
- Acceleration: Species the acceleration
of the axis when increasing the velocity.
Parameterized jumps may occur in the
acceleration when 2 succeeding
segments have dierent End acceleration
and Start acceleration values.
- Deceleration: Species the deceleration
of the axis when decreasing the velocity.
- Torque limit: Species the maximum
torque used during this segment. The
value is given in mNm.
The sync segment is shown as a P0 polynomial (constant
position, zero velocity). For fast visual identication, sync is
shown in the middle of the segment (see Illustration 5.78).

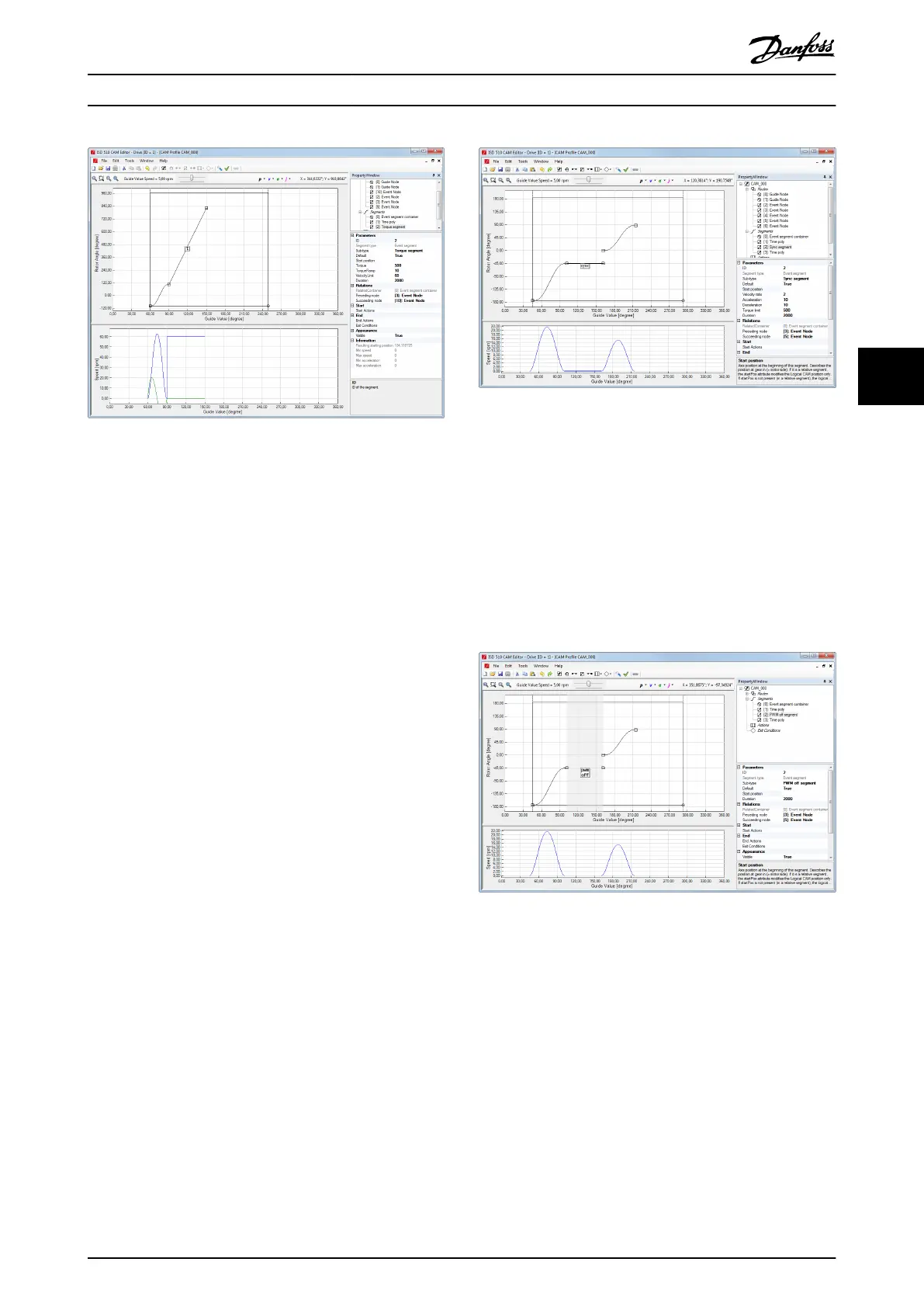

Illustration 5.78 Sync Segment
PWM o segment
The PWM o segment does not contain specic properties.
The duration of the segment is used for calculating the
segment length.
The PWM o segment is not shown as a curve. Instead it is
denoted by a grayed-out area between its preceding and
succeeding nodes. This visualization style implies the
undened behavior of the segment.
For quick visual identication, “pwm o” is shown in the
middle of the segment (see Illustration 5.79).
Illustration 5.79 PWM O Segment
Friction segment
The Friction segment has the following properties:
•
Parameters
- Start position: Species the axis position
at the beginning of the segment,
relative to the end position of the
previous segment. If the parameter is
left blank (unspecied), the logical CAM
position from the previous segment is
used as the starting position.
- Velocity high: Velocity of the axis during
this segment.
