3 Servo Access Box (SAB) Operation
3.1 Overview
The Servo Access Box (SAB) is the central component in the ISD 510 servo system, together with ISD 510 servo drives. It is
the connection point for several servo drives. Up to 64 servo drives can be connected to 1 SAB (maximum of 2 lines, each

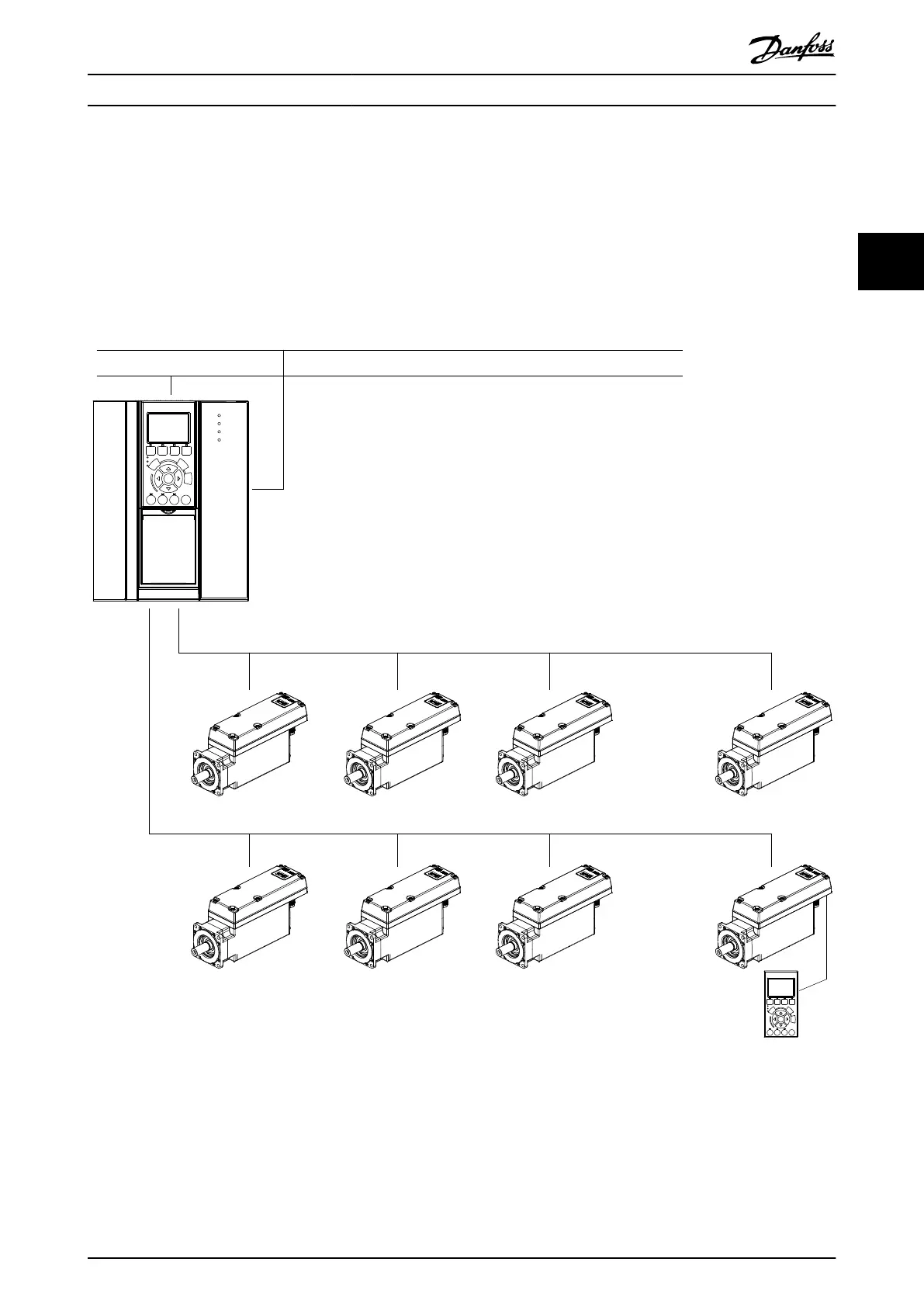

with 32 servo drives), depending on the total power load. Illustration 3.1 shows the typical system set-up:
