Bravo-Brava

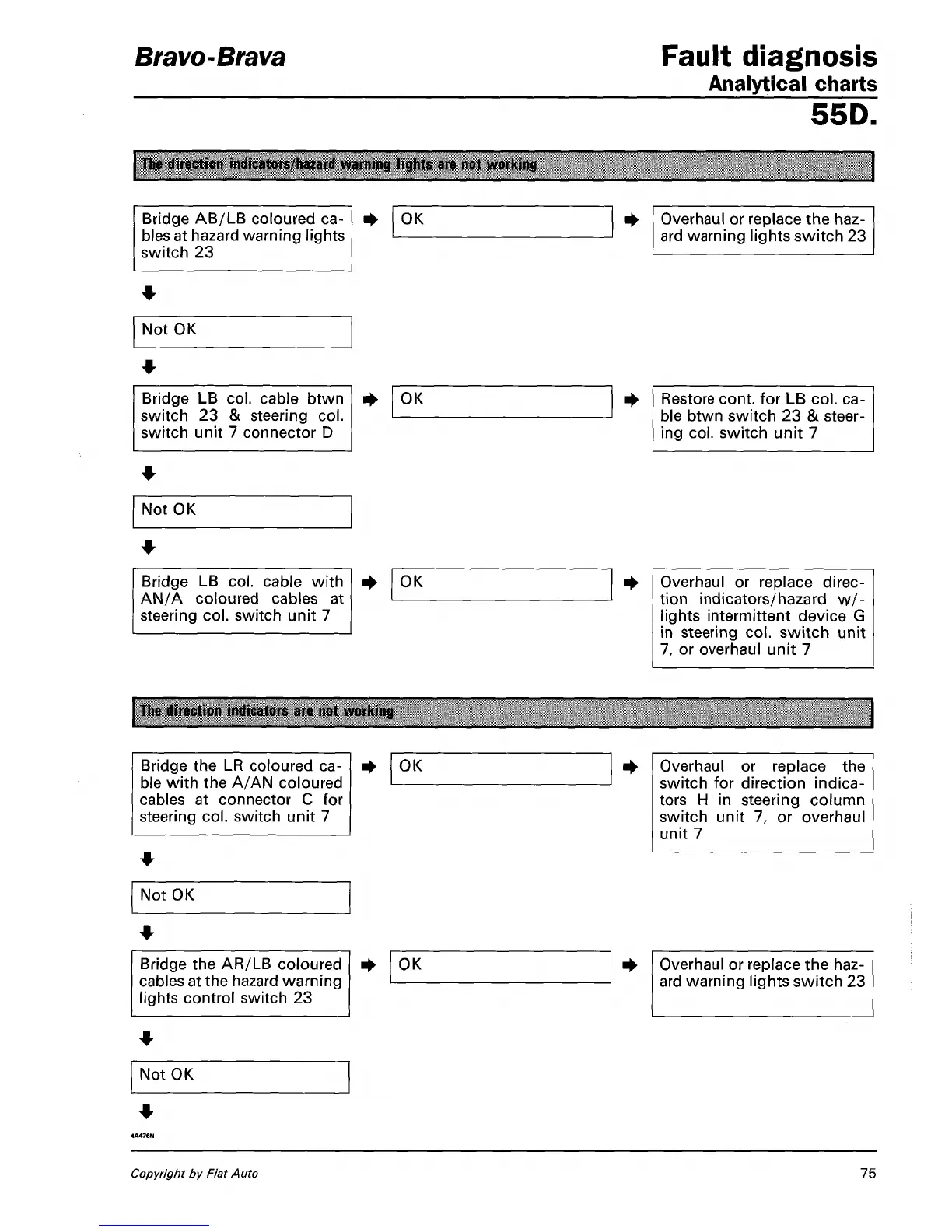

Fault diagnosis
Analytical charts
55D.
The direction indicators, hazard warning lights are not woiking
Bridge AB/LB coloured ca-
bles at hazard warning lights
switch 23
OK Overhaul or replace the haz-
ard warning lights switch 23
Not OK
Bridge LB col. cable btwn
switch 23 & steering col.
switch unit 7 connector D
OK
Restore cont. for LB col. ca-
ble btwn switch 23 & steer-
ing col. switch unit 7
Not OK
Bridge LB col. cable with
AN/A coloured cables at
steering col. switch unit 7
OK
Overhaul or replace direc-
tion indicators/hazard w/-
lights intermittent device G
in steering col. switch unit
7, or overhaul unit 7
The direction indicators are not working
Bridge the LR coloured ca-
ble with the A/AN coloured
cables at connector C for
steering col. switch unit 7
OK
Overhaul or replace the
switch for direction indica-
tors H in steering column
switch unit 7, or overhaul
unit 7
Not OK
Bridge the AR/LB coloured
cables at the hazard warning
lights control switch 23
OK Overhaul or replace the haz-
ard warning lights switch 23
Not OK
Copyright by Fiat Auto
75
