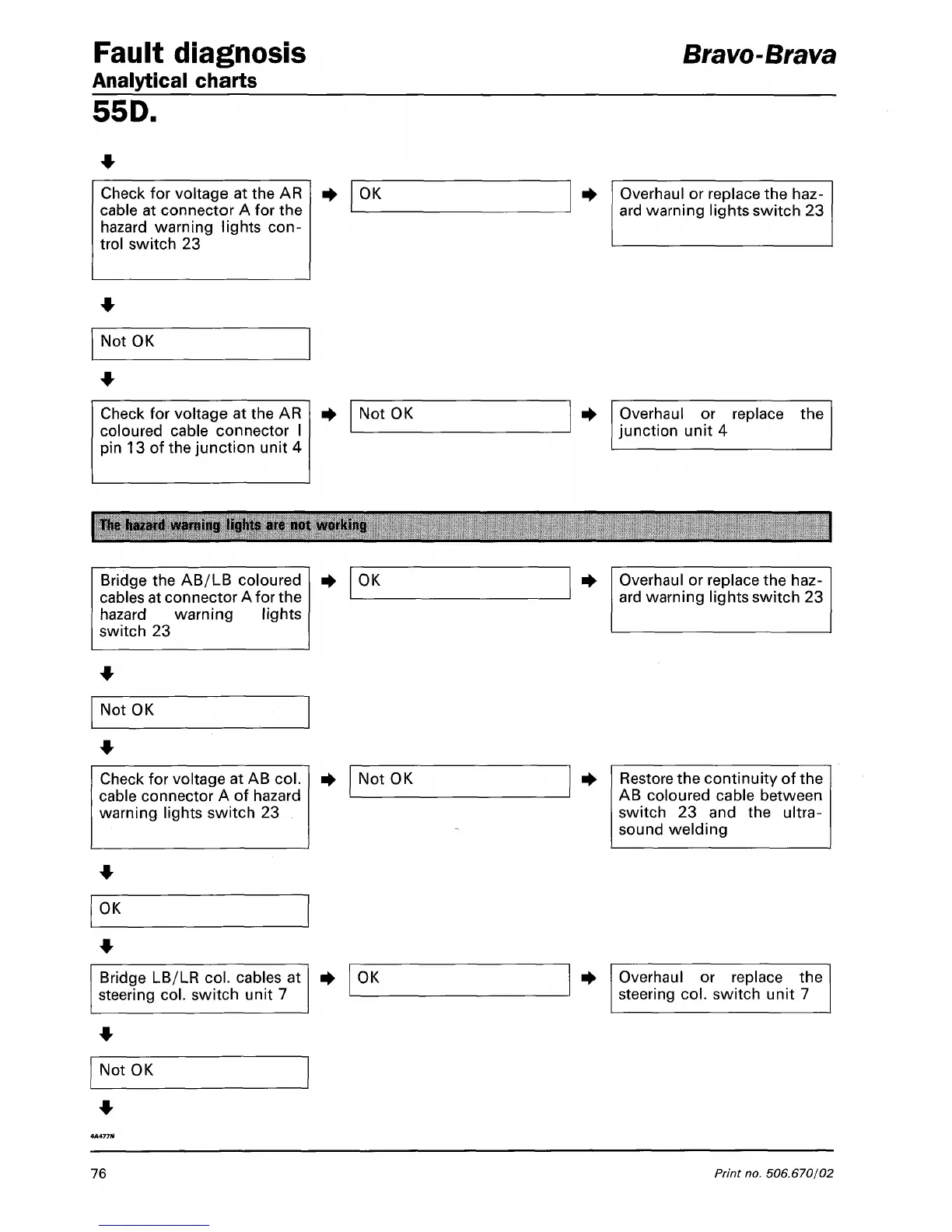

Fault diagnosis
Analytical charts
Bravo-Brava
55D.
Check for voltage at the AR
cable at connector A for the
hazard warning lights
con-
trol switch 23
OK Overhaul or replace the haz-
ard warning lights switch 23
Not OK
Check for voltage at the AR
coloured cable connector I
pin 13 of the junction unit 4
Not OK Overhaul or replace the
junction unit 4
The hazard warning lights
are not
working
Bridge the AB/LB coloured
cables at connector A for the
hazard warning lights
switch 23
OK Overhaul or replace the haz-
ard warning lights switch 23
Not OK
Check for voltage at AB col.
cable connector A of hazard
warning lights switch 23
Not OK
Restore the continuity of the
AB coloured cable between
switch 23 and the ultra-
sound welding
OK
Bridge LB/LR col. cables at
steering col. switch unit 7
OK
Overhaul or replace the
steering col. switch unit 7
Not OK
76 Print
no.
506.670/02
