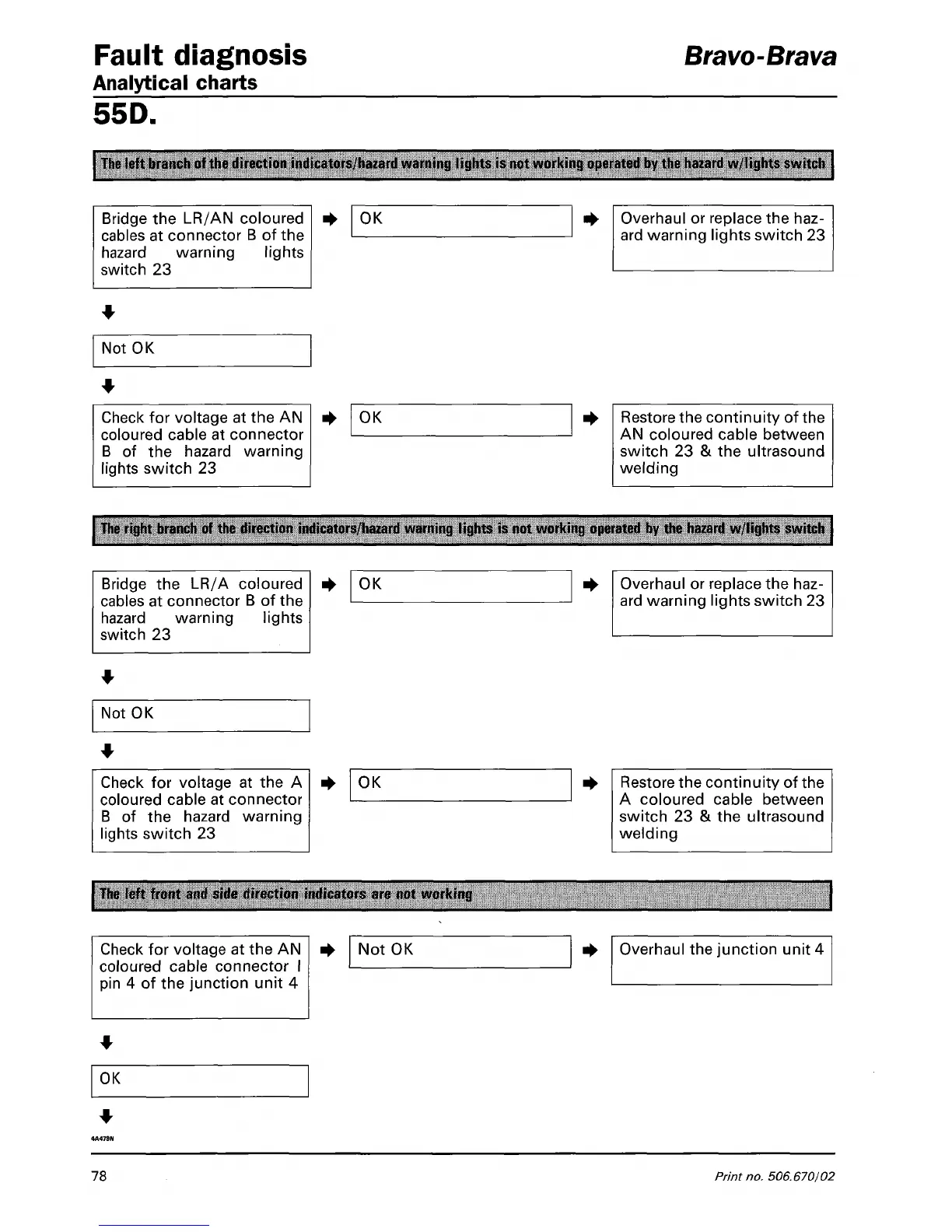

Fault diagnosis
Analytical charts
Bravo-Brava
55D.
The left branch of the direction indicators hazard warning lights is not working operated by the hazaid w liyhts switch
Bridge the LR/AN coloured
cables at connector B of the
hazard warning lights
switch 23
OK Overhaul or replace the haz-
ard warning lights switch 23
Not OK
Check for voltage at the AN
coloured cable at connector
B of the hazard warning
lights switch 23
OK Restore the continuity of the
AN coloured cable between
switch 23 & the ultrasound
welding
The right blanch of the direction indicators hazard warning lights is not working opeiated by the hazard w lights switch
Bridge the LR/A coloured
cables at connector B of the
hazard warning lights
switch 23
OK Overhaul or replace the haz-
ard warning lights switch 23
Not OK
Check for voltage at the A
coloured cable at connector
B of the hazard warning
lights switch 23
OK Restore the continuity of the
A coloured cable between
switch 23 & the ultrasound
welding
The left front and side direction indicators are not working
Check for voltage at the AN
coloured cable connector I
pin 4 of the junction unit 4
Not OK Overhaul the junction unit 4
OK
78 Print no. 506.670/02
