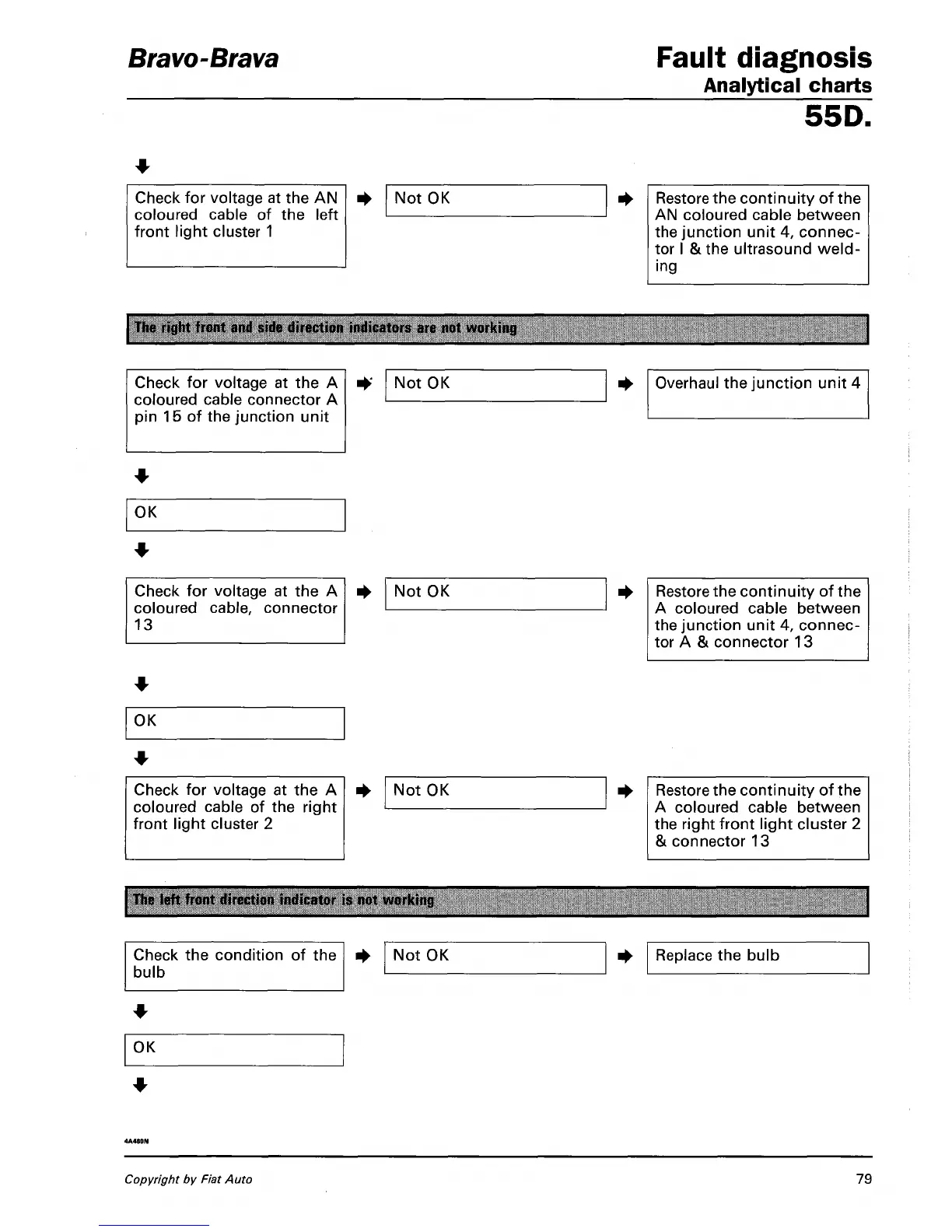

Bravo-Brava
Fault diagnosis
Analytical charts
55D.
Check for voltage at the AN
coloured cable of the left
front light cluster 1
Not OK Restore the continuity of the
AN coloured cable between
the junction unit 4, connec-
tor I &the ultrasound
weld-
ing
The right front and side direction indicators aie not working
Check for voltage at the A
coloured cable connector A
pin 15 of the junction unit
Not OK Overhaul the junction unit 4
OK
Check for voltage at the A
coloured cable, connector
13
Not OK Restore the continuity of the
A coloured cable between
the junction unit 4, connec-
tor A & connector 13
OK
Check for voltage at the A
coloured cable of the right
front light cluster 2
Not OK
Restore the continuity of the
A coloured cable between
the right front light cluster 2
& connector 13
The left front direction indicator is not working
Check the condition of the
bulb
Not OK
Replace the bulb
OK
Copyright by Fiat Auto
79
