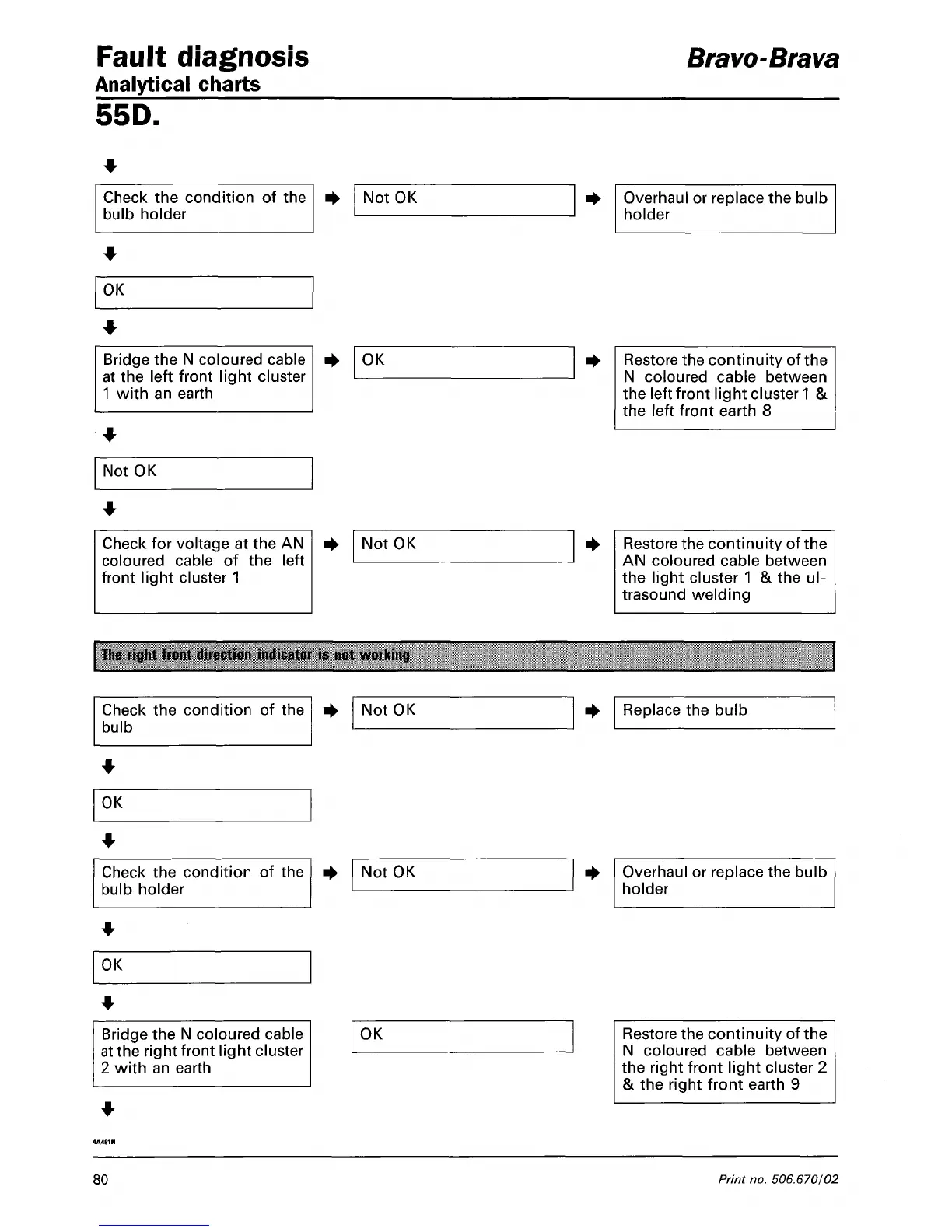

Fault diagnosis
Analytical charts
Bravo-Brava
55D.
Check the condition of the
bulb holder
Not OK
Overhaul or replace the bulb
holder
OK
Bridge the N coloured cable
at the left front light cluster
1 with an earth
OK Restore the continuity of the
N coloured cable between
the left front light cluster
1
&
the left front earth 8
Not OK
Check for voltage at the AN
coloured cable of the left
front light cluster 1
Not OK Restore the continuity of the
AN coloured cable between
the light cluster 1 & the ul-
trasound welding
The right front direction indicator
is not
woiking
Check the condition of the
bulb
Not OK Replace the bulb
OK
Check the condition of the
bulb holder
Not OK Overhaul or replace the bulb
holder
OK
Bridge the N coloured cable
at the right front light cluster
2 with an earth
OK
Restore the continuity of the
N coloured cable between
the right front light cluster 2
& the right front earth 9
80
Print no. 506.670/02
