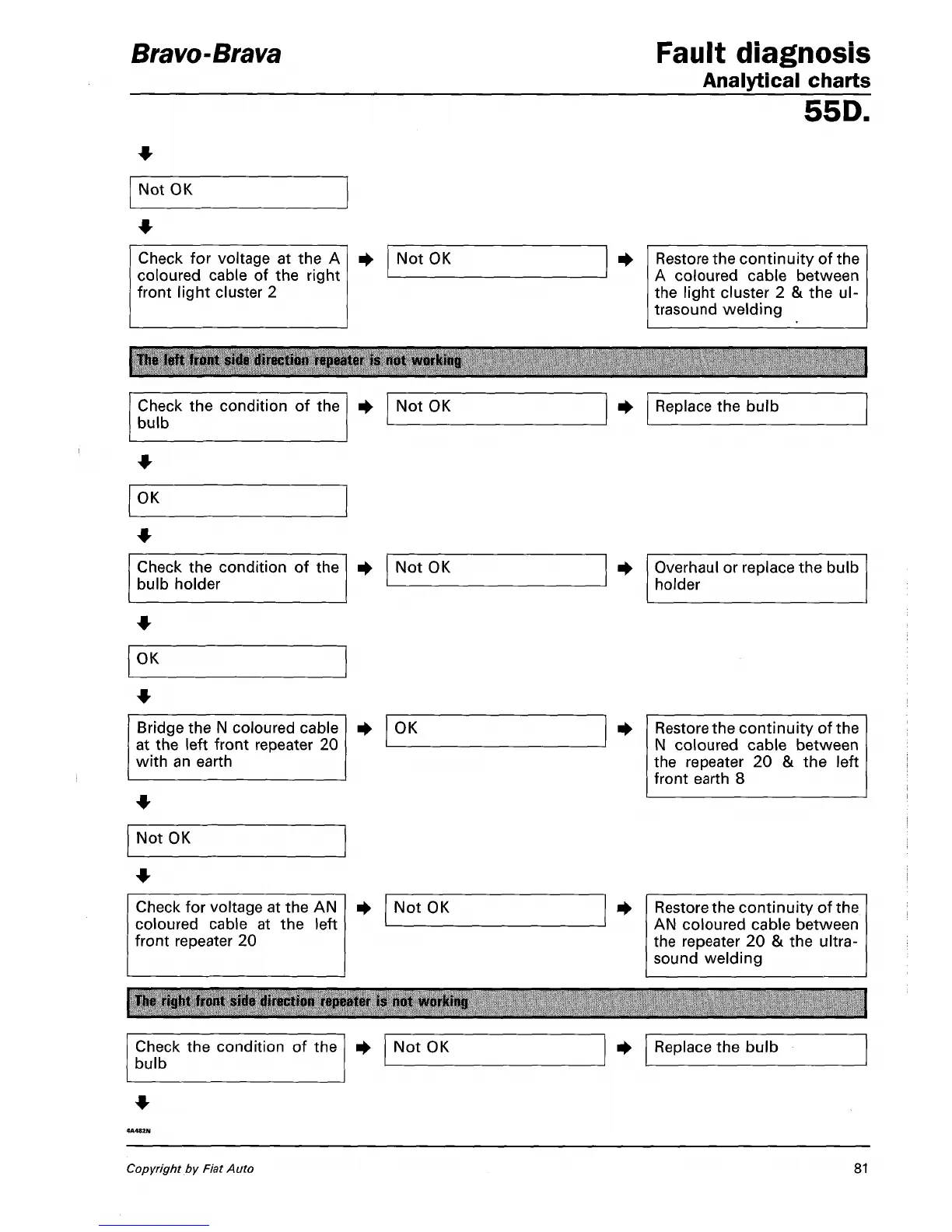

Bravo-Brava
Fault diagnosis
Analytical charts
55D.
Not OK
Check for voltage at the A
coloured cable of the right
front light cluster 2
Not OK
Restore the continuity of the
A coloured cable between
the light cluster 2 & the ul-
trasound welding
The left front side diiection repeater
is not
working
Check the condition of the
bulb
Not OK Replace the bulb
OK
Check the condition of the
bulb holder
Not OK Overhaul or replace the bulb
holder
OK
Bridge the N coloured cable
at the left front repeater 20
with an earth
OK
Restore the continuity of the
N coloured cable between
the repeater 20 & the left
front earth 8
Not OK
Check for voltage at the AN
coloured cable at the left
front repeater 20
Not OK
Restore the continuity of the
AN coloured cable between
the repeater 20 & the ultra-
sound welding
The right front side direction repeater
is not
working
Check the condition of the
bulb
Not OK ^ Replace the bulb
Copyright by Fiat Auto
81
