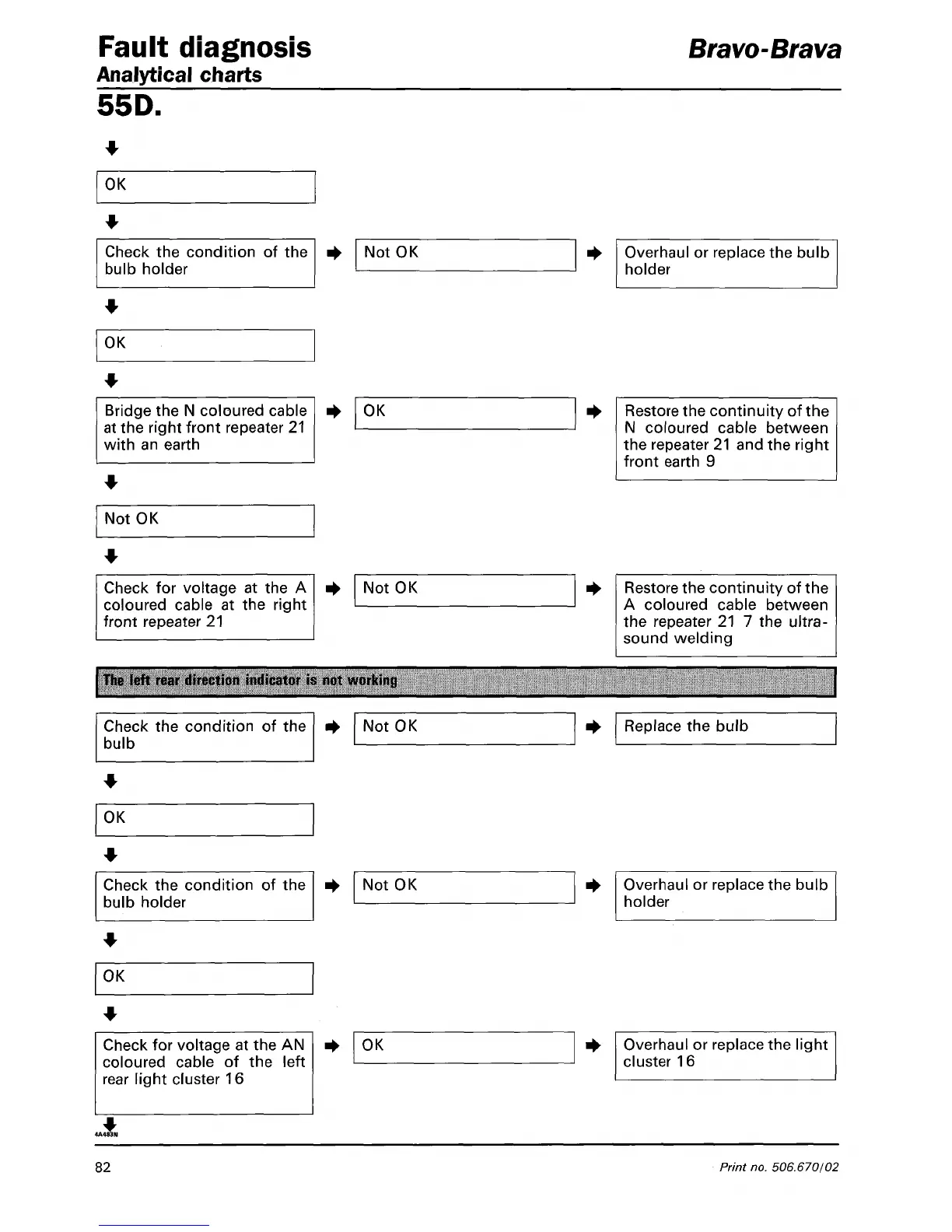

Fault diagnosis
Analytical charts
Bravo-Brava
55D.
OK
Check the condition of the
bulb holder
Not OK
Overhaul or replace the bulb
holder
OK
Bridge the N coloured cable
at the right front repeater 21
with an earth
OK
Restore the continuity of the
N coloured cable between
the repeater 21 and the right
front earth 9
Not OK
Check for voltage at the A
coloured cable at the right
front repeater 21
Not OK Restore the continuity of the
A coloured cable between
the repeater 21 7 the ultra-
sound welding
The left rear direction indicator is not working
Check the condition of the
bulb
Not OK Replace the bulb
OK
Check the condition of the
bulb holder
Not OK Overhaul or replace the bulb
holder
OK
Check for voltage at the AN
coloured cable of the left
rear light cluster 16
OK
Overhaul or replace the light
cluster 16
82
Print no. 506.670/02
