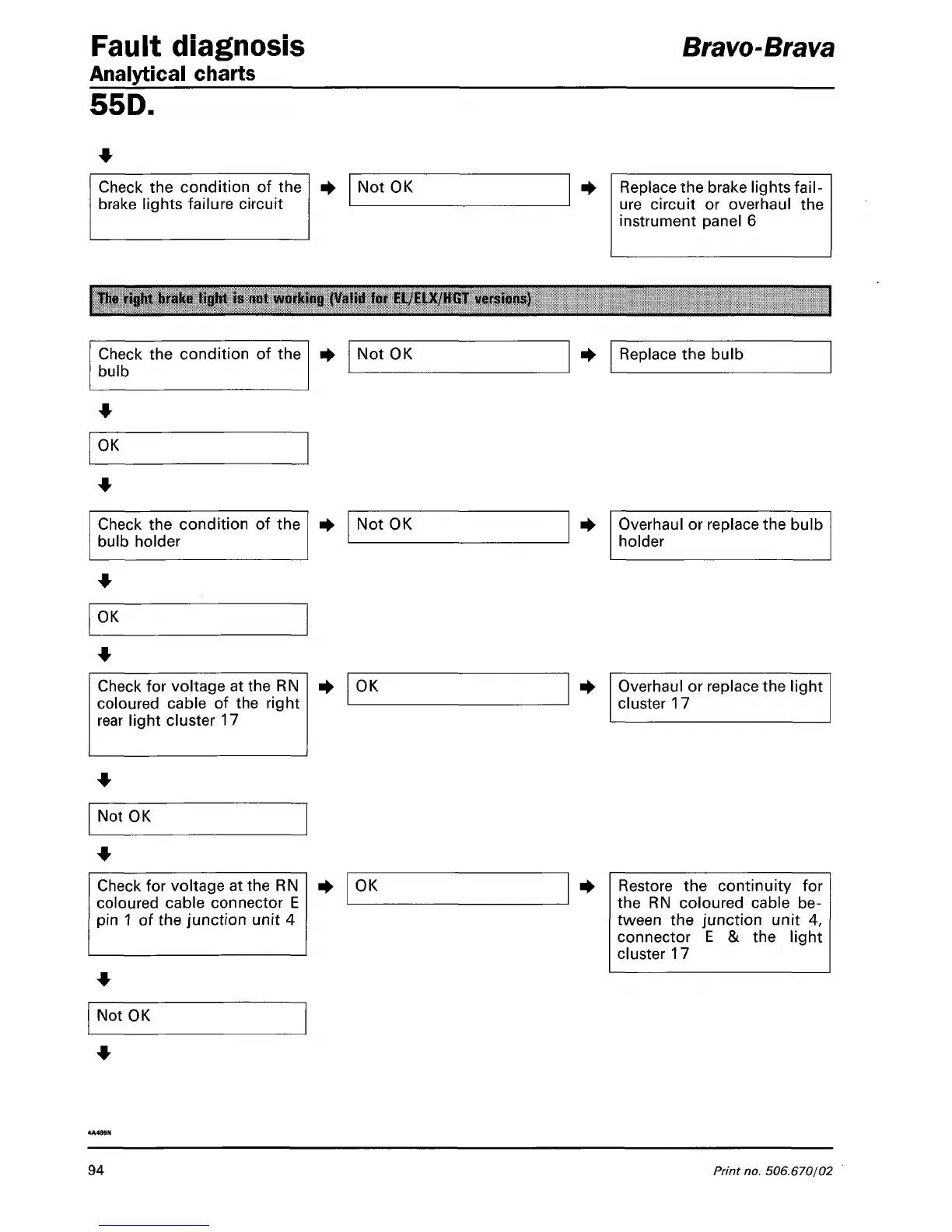

Fault diagnosis
Analytical charts
Bravo-Brava
55D.
Check the condition of the
brake lights failure circuit
Not OK
Replace the brake lights
fail-
ure circuit or overhaul the
instrument panel 6
The right biake light
is not
working (Valid
for EL ELX
HGT versions)
Check the condition of the
bulb
Not OK
Replace the bulb
OK
Check the condition of the
bulb holder
Not OK
Overhaul or replace the bulb
holder
OK
Check for voltage at the RN
coloured cable of the right
rear light cluster 17
OK
Overhaul or replace the light
cluster 17
Not OK
Check for voltage at the RN
coloured cable connector E
pin 1 of the junction unit 4
OK
Restore the continuity for
the RN coloured cable be-
tween the junction unit 4,
connector E & the light
cluster 17
Not OK
94
Print no. 506.670/02
