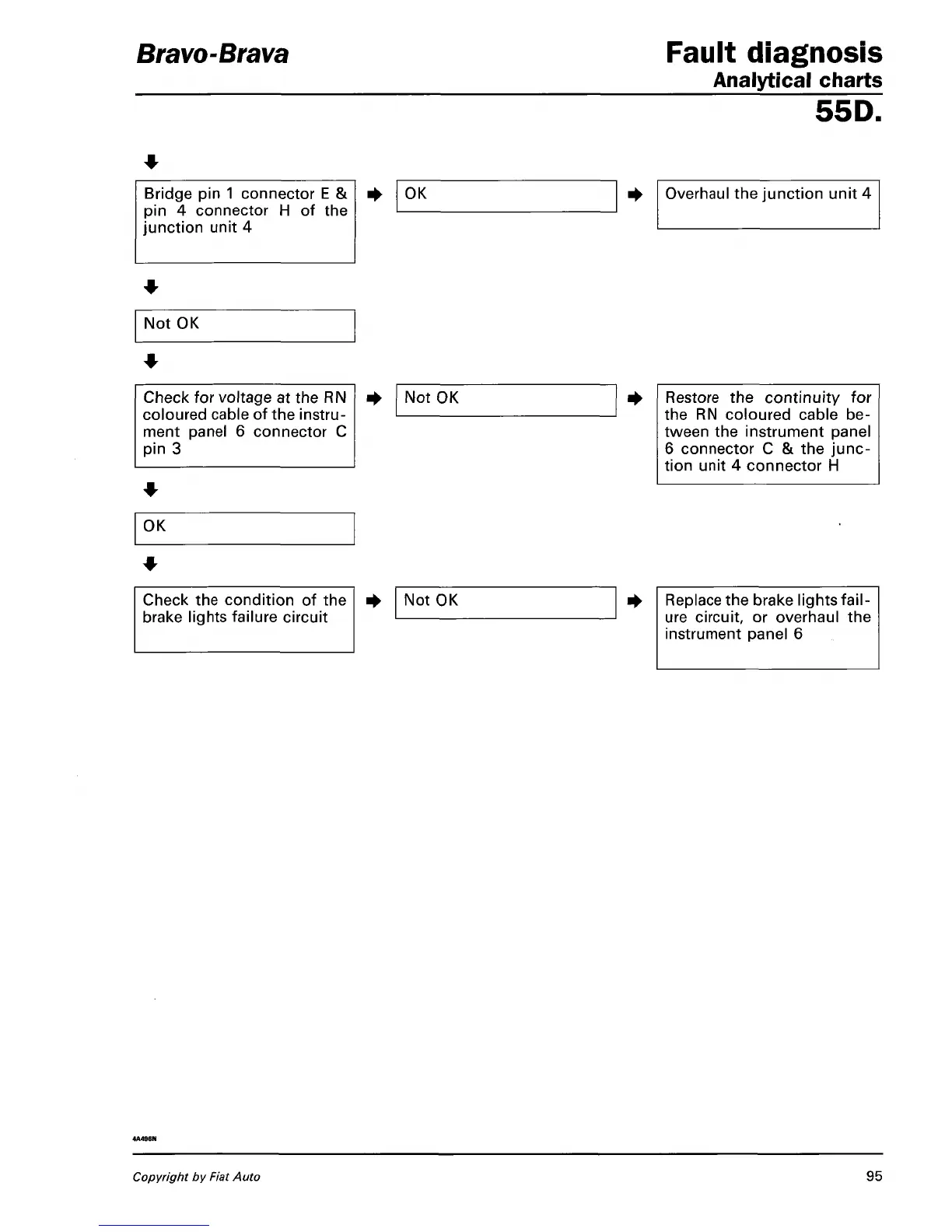

Bravo-Brava Fault diagnosis
Analytical charts
55D.
Bridge pin 1 connector E &
pin 4 connector H of the
junction unit 4
OK
Overhaul the junction unit 4
Not OK
Check for voltage at the RN
coloured cable of the instru-
ment panel 6 connector C
pin 3
Not OK Restore the continuity for
the RN coloured cable be-
tween the instrument panel
6 connector C & the junc-
tion unit 4 connector H
OK
Check the condition of the
brake lights failure circuit
Not OK Replace the brake lights fail-
ure circuit, or overhaul the
instrument panel 6
