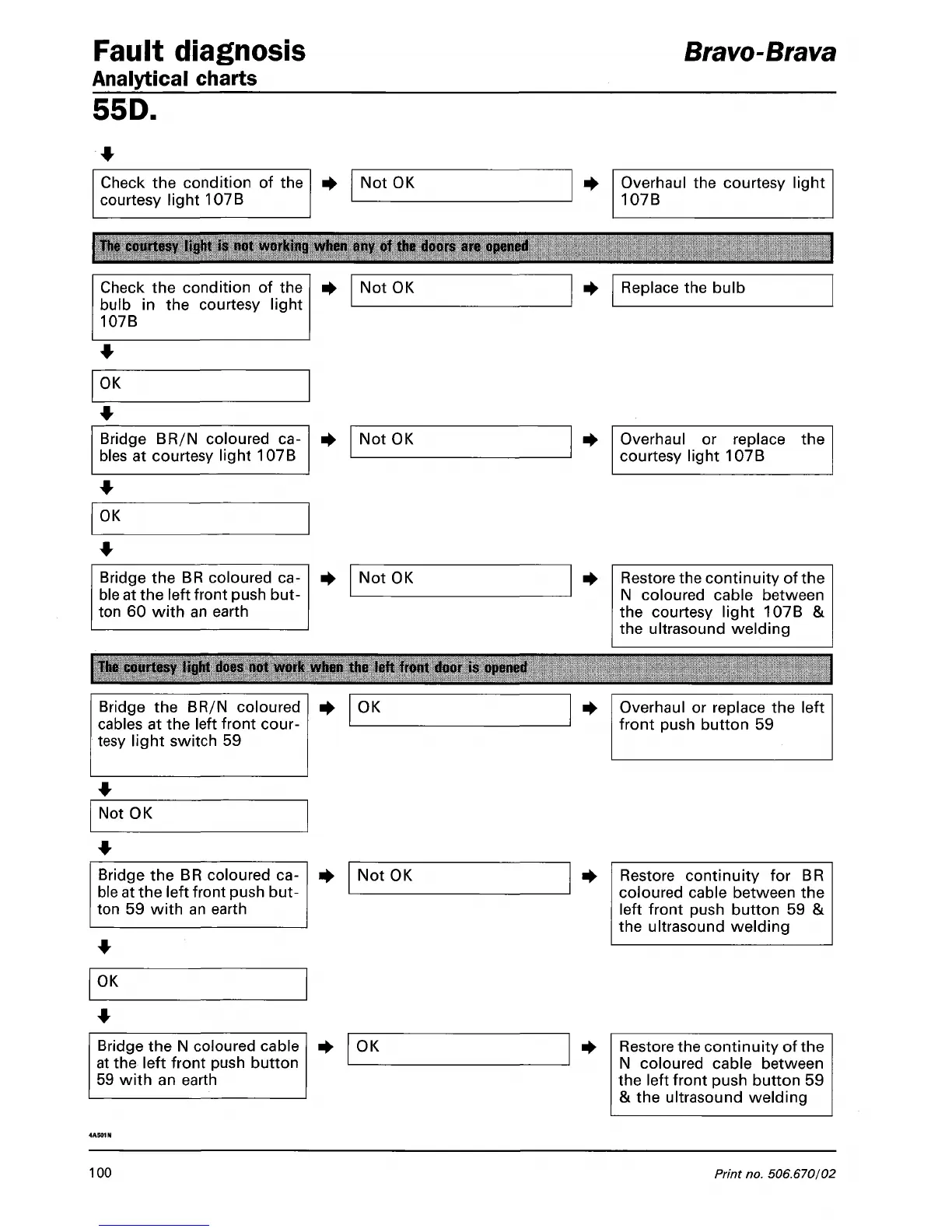

Fault diagnosis
Analytical charts
Bravo-Brava
55D.
Check the condition of the
courtesy light 107B
Not OK Overhaul the courtesy light
107B
The courtesy light is not working when any of the doors are opened
Check the condition of the
bulb in the courtesy light
107B
Not OK Replace the bulb
OK
Bridge BR/N coloured ca-
bles at courtesy light 107B
Not OK
Overhaul or replace the
courtesy light 107B
OK
Bridge the BR coloured ca-
ble at the left front push but-
ton 60 with an earth
Not OK
Restore the continuity of the
N coloured cable between
the courtesy light 107B &
the ultrasound welding
The courtesy light does not work when the left front door is opened
Bridge the BR/N coloured
cables at the left front cour-
tesy light switch 59
OK
Overhaul or replace the left
front push button 59
Not OK
Bridge the BR coloured ca-
ble at the left front push but-
ton 59 with an earth
Not OK
Restore continuity for BR
coloured cable between the
left front push button 59 &
the ultrasound welding
OK
Bridge the N coloured cable
at the left front push button
59 with an earth
OK
Restore the continuity of the
N coloured cable between
the left front push button 59
& the ultrasound welding
100
Print no. 506.670/02
