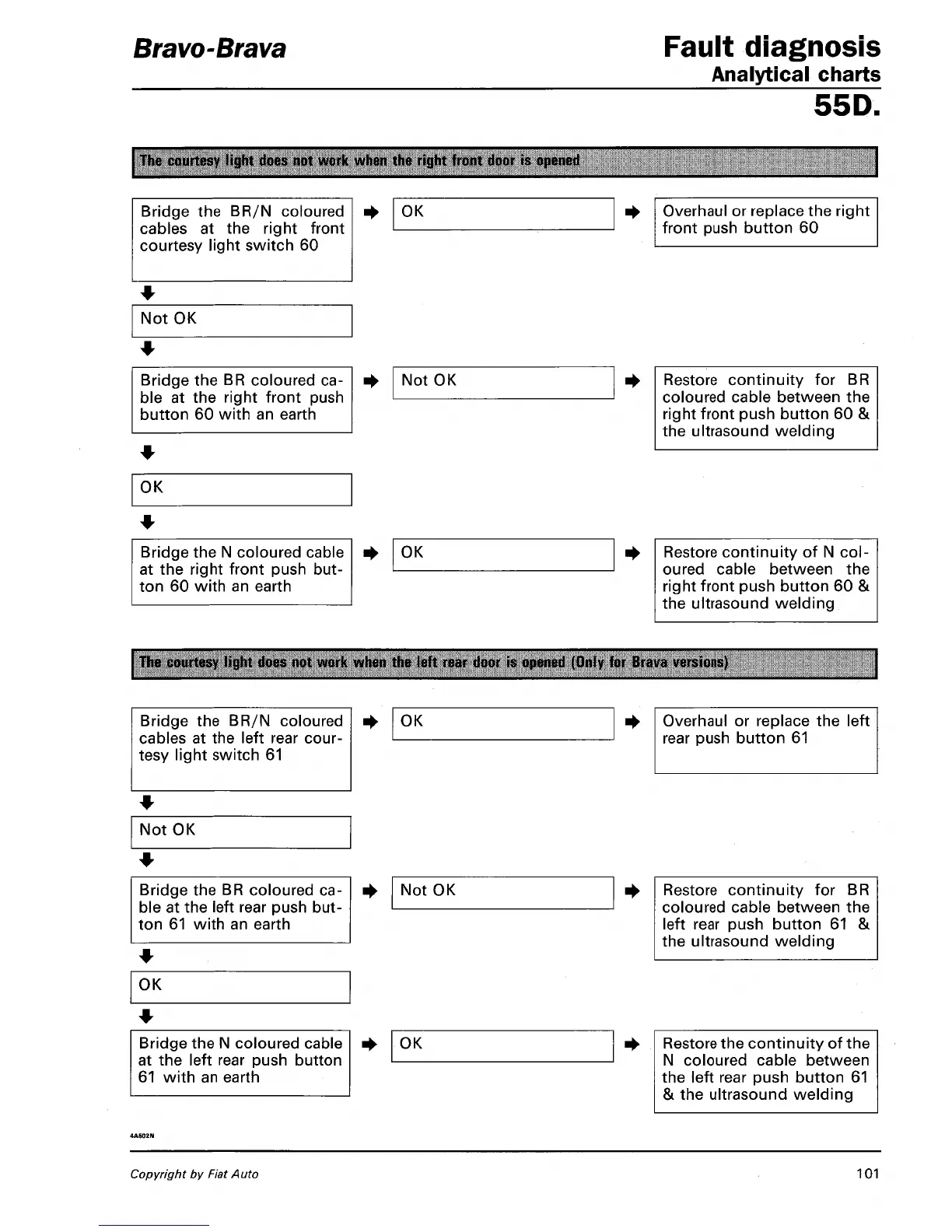

Bravo-Brava
Fault diagnosis
Analytical charts
55 D.
The courtesy light does not work when the right fiont door is opened
Bridge the BR/N coloured
cables at the right front
courtesy light switch 60
OK
Overhaul or replace the right
front push button 60
Not OK
Bridge the BR coloured ca-
ble at the right front push
button 60 with an earth
Not OK
Restore continuity for BR
coloured cable between the
right front push button 60 &
the ultrasound welding
OK
Bridge the N coloured cable
at the right front push but-
ton 60 with an earth
OK Restore continuity of N col-
oured cable between the
right front push button 60 &
the ultrasound welding
The courtesy light does not work when the left rear door is opened (Only for Brava versions)
Bridge the BR/N coloured
cables at the left rear cour-
tesy light switch 61
OK Overhaul or replace the left
rear push button 61
Not OK
Bridge the BR coloured ca-
ble at the left rear push but-
ton 61 with an earth
Not OK
OK
Restore continuity for BR
coloured cable between the
left rear push button 61 &
the ultrasound welding
Bridge the N coloured cable
at the left rear push button
61 with an earth
OK Restore the continuity of the
N coloured cable between
the left rear push button 61
& the ultrasound welding
Copyright by Fiat Auto
