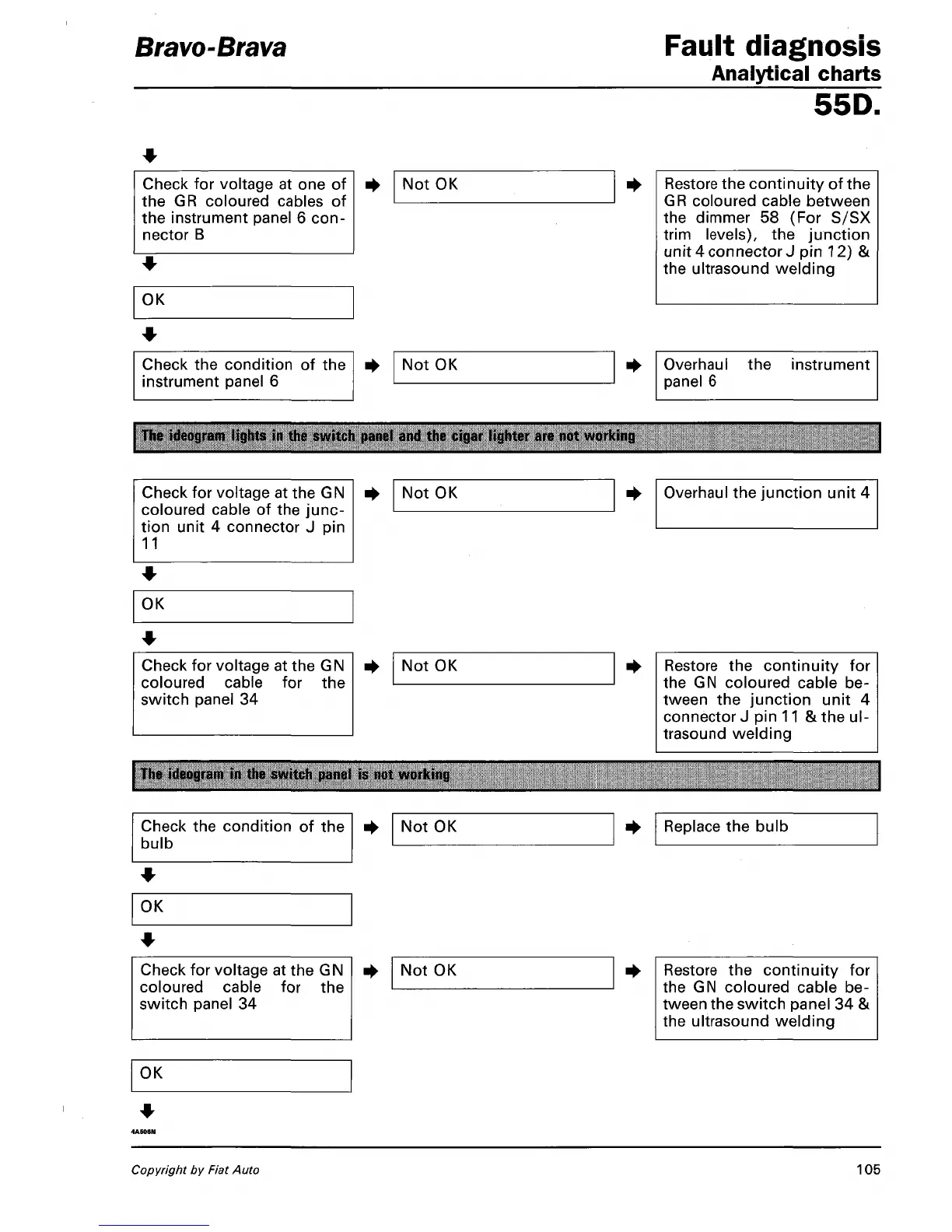

Bravo-Brava
Fault diagnosis
Analytical charts
55 D.
Check for voltage at one of
the GR coloured cables of
the instrument panel 6 con-
nector B
Not OK
OK
Restore the continuity of the
GR coloured cable between
the dimmer 58 (For S/SX
trim levels), the junction
unit 4 connector J pin 12) &
the ultrasound welding
Check the condition of the
instrument panel 6
Not OK
Overhaul
panel 6
the instrument
The ideogram lights in the switch panel and the cigar lighter are not working
Check for voltage at the GN
coloured cable of the junc-
tion unit 4 connector J pin
11
Not OK
Overhaul the junction unit 4
OK
Check for voltage at the GN
coloured cable for the
switch panel 34
Not OK
Restore the continuity for
the GN coloured cable be-
tween the junction unit 4
connector J pin 11 & the ul-
trasound welding
The ideogram in the switch panel is not working
Check the condition of the
bulb
Not OK
Replace the bulb
OK
Check for voltage at the GN
coloured cable for the
switch panel 34
Not OK
Restore the continuity for
the GN coloured cable be-
tween the switch panel 34 &
the ultrasound welding
OK
Copyright by Fiat Auto
105
