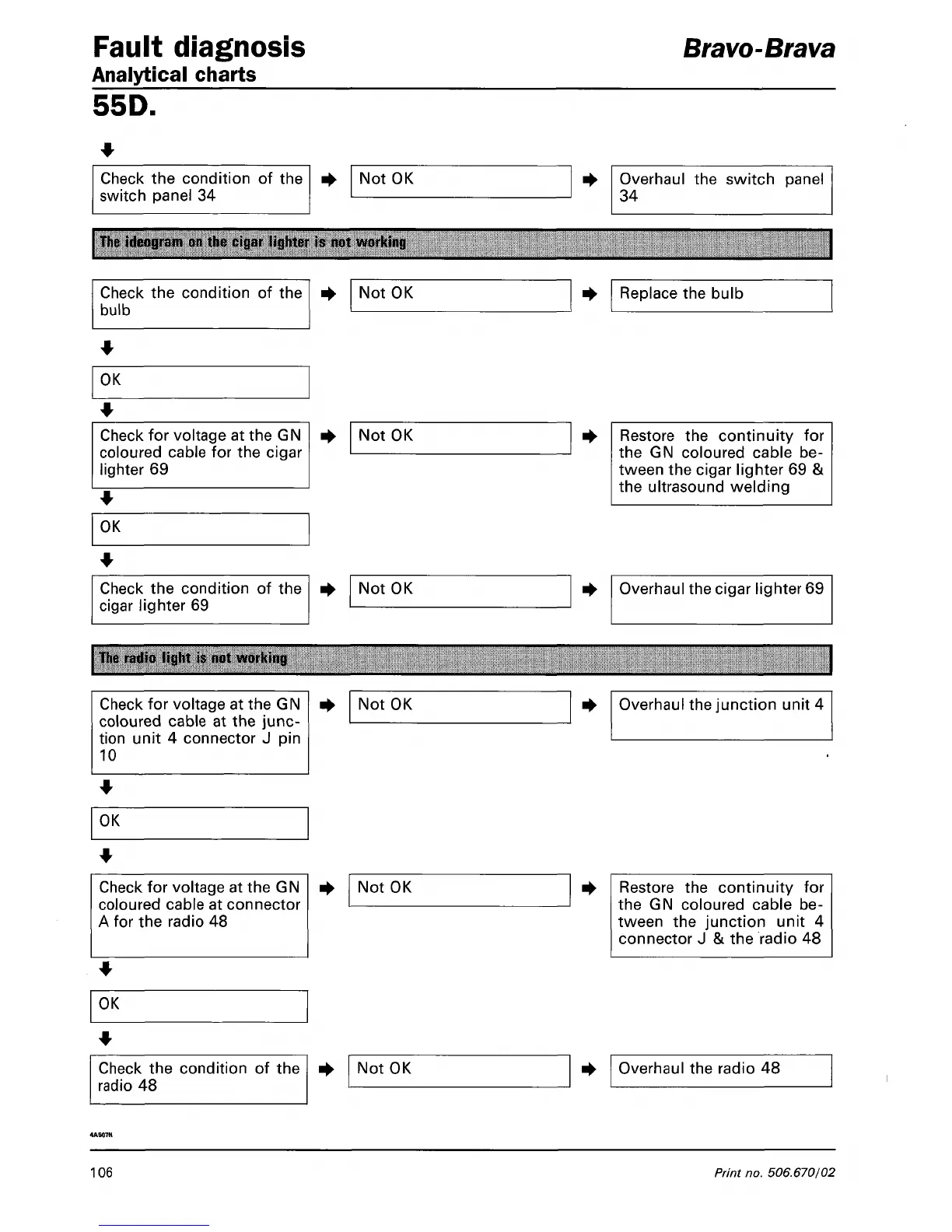

Fault diagnosis
Analytical charts
Bravo-Brava
55D.
Check the condition of the
switch panel 34
Not OK
Overhaul the switch panel
34
The ideogram on
the
cigar lighter
is not
working
Check the condition of the
bulb
Not OK
Replace the bulb
OK
Check for voltage at the GN
coloured cable for the cigar
lighter 69
Not OK Restore the continuity for
the GN coloured cable be-
tween the cigar lighter 69 &
the ultrasound welding
OK
Check the condition of the
cigar lighter 69
Not OK
Overhaul the cigar lighter 69
The radio light
is not
working
Check for voltage at the GN
coloured cable at the junc-
tion unit 4 connector J pin
10
Not OK
Overhaul the junction unit 4
OK
Check for voltage at the GN
coloured cable at connector
A for the radio 48
Not OK
Restore the continuity for
the GN coloured cable be-
tween the junction unit 4
connector J & the radio 48
OK
Check the condition of the
radio 48
Not OK Overhaul the radio 48
106
Print no. 506.670/02
