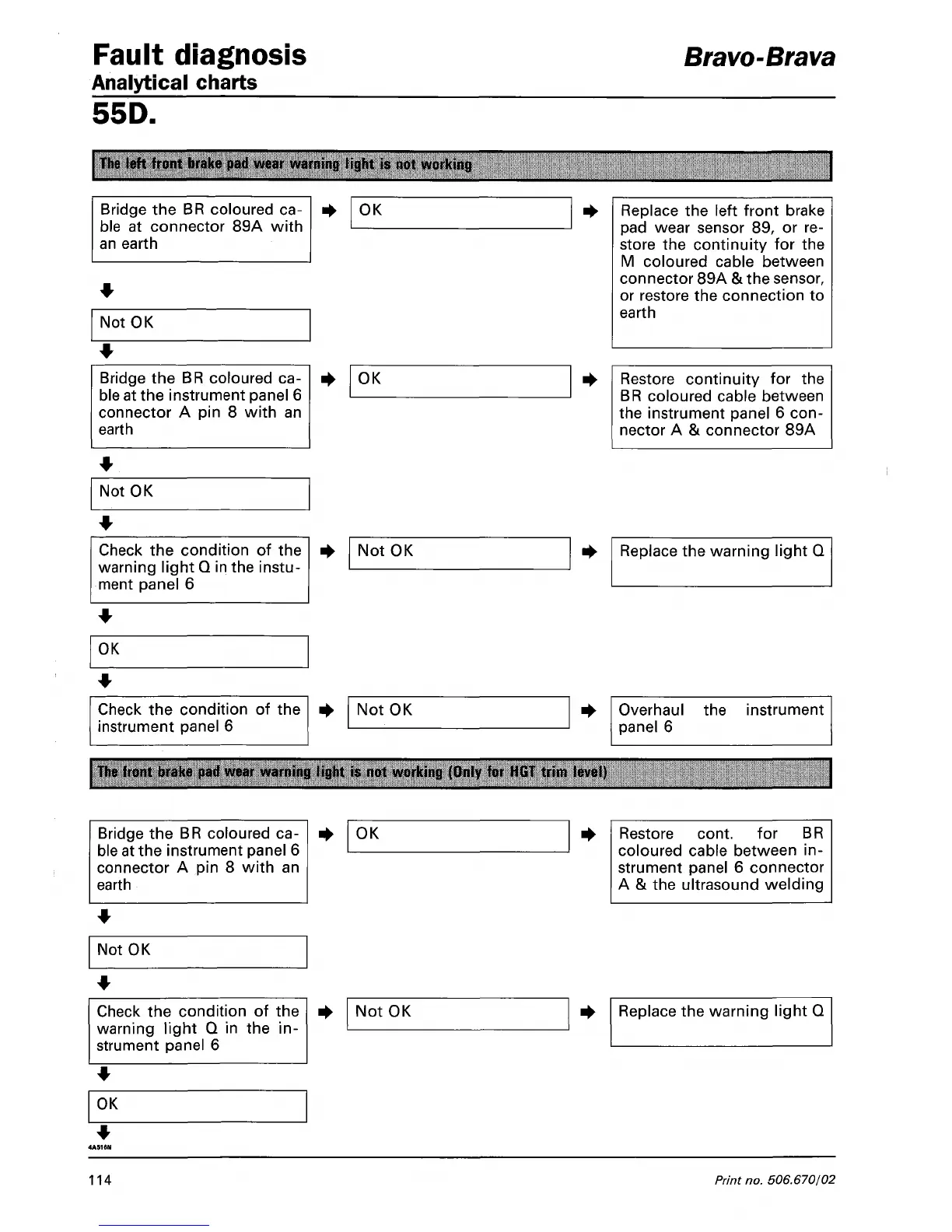

Fault diagnosis
Analytical charts
Bravo-Brava
55D.
The left front brake pad wear warning light is not working
Bridge the BR coloured ca-
ble at connector 89A with
an earth
OK
Not OK
Bridge the BR coloured ca-
ble at the instrument panel 6
connector A pin 8 with an
earth
OK
Replace the left front brake
pad wear sensor 89, or re-
store the continuity for the
M coloured cable between
connector 89A & the sensor,
or restore the connection to
earth
Restore continuity for the
BR coloured cable between
the instrument panel 6
con-
nector A & connector 89A
Not OK
Check the condition of the
warning light Q in the instu-
ment panel 6
Not OK
Replace the warning light Q
OK
Check the condition of the
instrument panel 6
Not OK
Overhaul
panel 6
the instrument
The fiont brake pad wear warning light is not working (Only for HGT trim level)
Bridge the BR coloured ca-
ble at the instrument panel 6
connector A pin 8 with an
earth
OK Restore cont. for BR
coloured cable between in-
strument panel 6 connector
A & the ultrasound welding
Not OK
Check the condition of the
warning light Q in the in-
strument panel 6
Not OK
Replace the warning light Q
OK
114 Print no. 506.670/02
