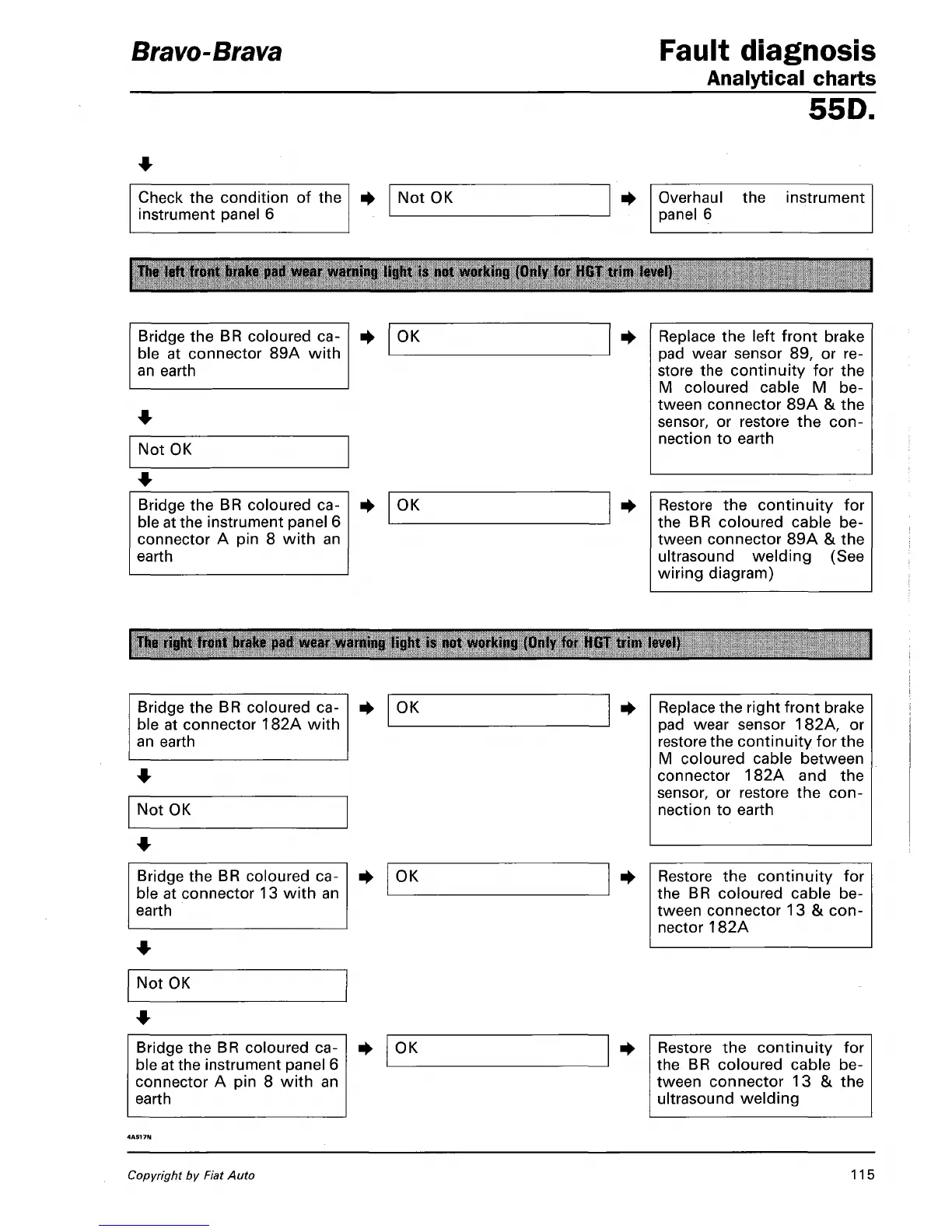

Bravo-Brava
Fault diagnosis
Analytical charts
55D.
Check the condition of the
instrument panel 6
Not OK Overhaul the instrument
panel 6
The left front biake pad wear warning light is not working (Only for HGT trim level)
Bridge the BR coloured ca-
ble at connector 89A with
an earth
OK
Not OK
Bridge the BR coloured ca-
ble at the instrument panel 6
connector A pin 8 with an
earth
OK
Replace the left front brake
pad wear sensor 89, or re-
store the continuity for the
M coloured cable M be-
tween connector 89A & the
sensor, or restore the
con-
nection to earth
Restore the continuity for
the BR coloured cable be-
tween connector 89A & the
ultrasound welding (See
wiring diagram)
The right front brake pad wear warning light is not working (Only foi HGT trim level)
Bridge the BR coloured ca-
ble at connector 182A with
an earth
Not OK
Bridge the BR coloured ca-
ble at connector 13 with an
earth
OK
OK
Replace the right front brake
pad wear sensor 182A, or
restore the continuity for the
M coloured cable between
connector 182A and the
sensor, or restore the
con-
nection to earth
Restore the continuity for
the BR coloured cable be-
tween connector 13 &
con-
nector 182A
Not OK
Bridge the BR coloured ca-
ble at the instrument panel 6
connector A pin 8 with an
earth
OK Restore the continuity for
the BR coloured cable be-
tween connector 13 & the
ultrasound welding
Copyright by Fiat Auto
115
