Bravo-Brava

Electrical system

Wiring diagrams

55.

Version:

S - SX

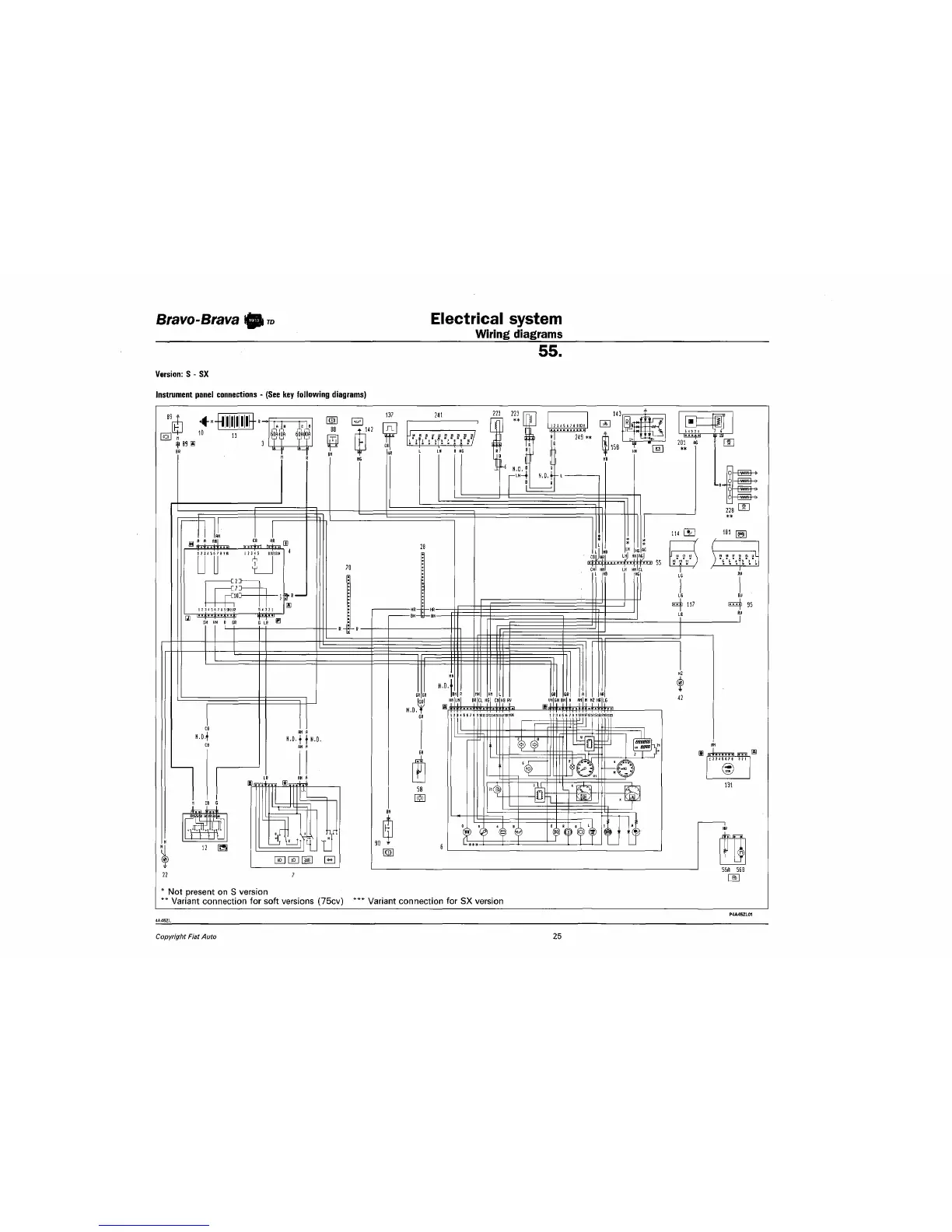

Instrument panel connections

- (See key

following diagrams)

ft 4-HllllllllHH-i

* Not present on S version

" Variant connection for soft versions (75cv)

Variant connection for SX version
