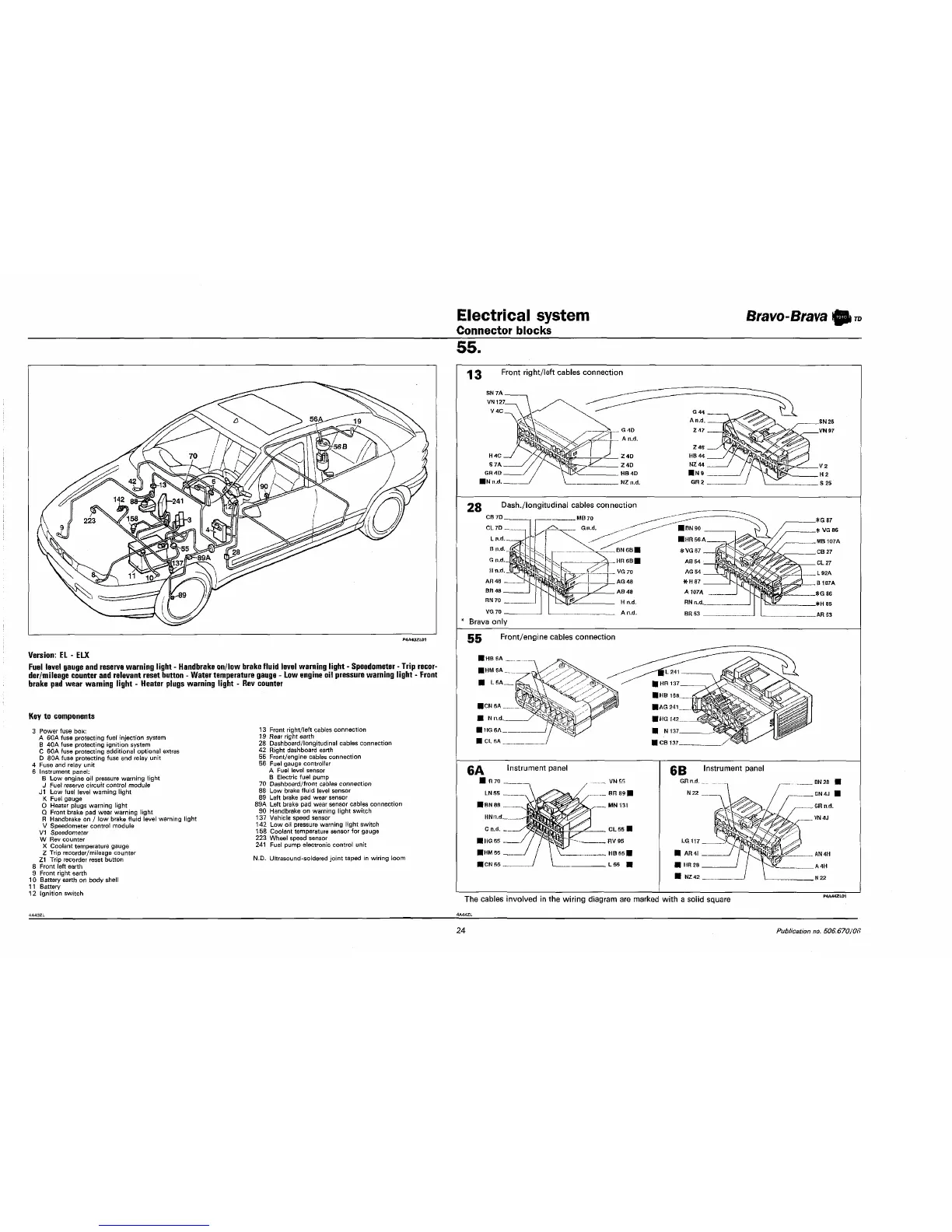

Electrical system
Connector blocks
Bravo-Brava
55.
Version:
EL - ELX
Fuel level gauge and reserve warning light
-
Handbrake on/low brake fluid level warning light
-
Speedometer
-
Trip recor-
der/mileage counter and relevant reset button
-
Water temperature gauge
-
Low engine
oil
pressure warning light
-
Front
brake pad wear warning light
-
Heater plugs warning light
- Rev
counter
Key
to
components
3 Power fuse box:
A 60A fuse protecting fuel injection system
B 40A fuse protecting ignition system
C 60A fuse protecting additional optional extras
D 80A fuse protecting fuse and relay unit
4 Fuse and relay unit
6 Instrument panel:
B Low engine
oil
pressure warning light
J Fuel reserve circuit control module
J1 Low fuel level warning light
K Fuel gauge
O Heater plugs warning light
Q Front brake pad wear warning light
R Handbrake
on
/
low
brake fluid level warning
I
V Speedometer control module
V1 Speedometer
W Rev counter
X Coolant temperature gauge
Z Trip recorder/mileage counter
Z1 Trip recorder reset button
8 Front left earth
9 Front right earth
10 Battery earth
on
body shell
11 Battery
12 Ignition switch
ight
13 Front right/left cables connection
19 Rear right earth
28 Dashboard/longitudinal cables connection
42 Right dashboard earth
55 Front/engine cables connection
56 Fuel gauge controller
A Fuel level sensor
B Electric fuel pump
70 Dashboard/front cables connection
88
Low
brake fluid level sensor
89 Left brake pad wear sensor
89A Left brake pad wear sensor cables connection
90 Handbrake
on
warning light switch
137 Vehicle speed sensor
142 Low
oil
pressure warning light switch
158 Coolant temperature sensor
for
gauge
223 Wheel speed sensor
241 Fuel pump electronic control unit
N.D. Ultrasound-soldered joint taped
in
wiring loom
13
Front right/left cables connection
Oft Dash./longitudinal cables connection
CB 7D MB 70
Brava only
Front/engine cables connection
CA Instrument panel
■ n 70
...
IN 55
\
■
BN8B
___j£j£
HNn.d___Jj8S
Cn.tl.
_/^|||
■
IIG55
// /
■
HM55
J I
PJRNJW
/
^^HP>^C
sy^cir^L*^>
4|ra_L/'
__. VN55
.
-
BF189|
MN 131
J
CL 55
1
.
nvws
1
™
1
CD Instrument panel
Gn n.d
The cables involved in the wiring diagram are marked with a solid square
24
Publication
no.
506.670106
