Electrical system
Connections
Bravo-Brava
'98 range
55.
P4A66EL01

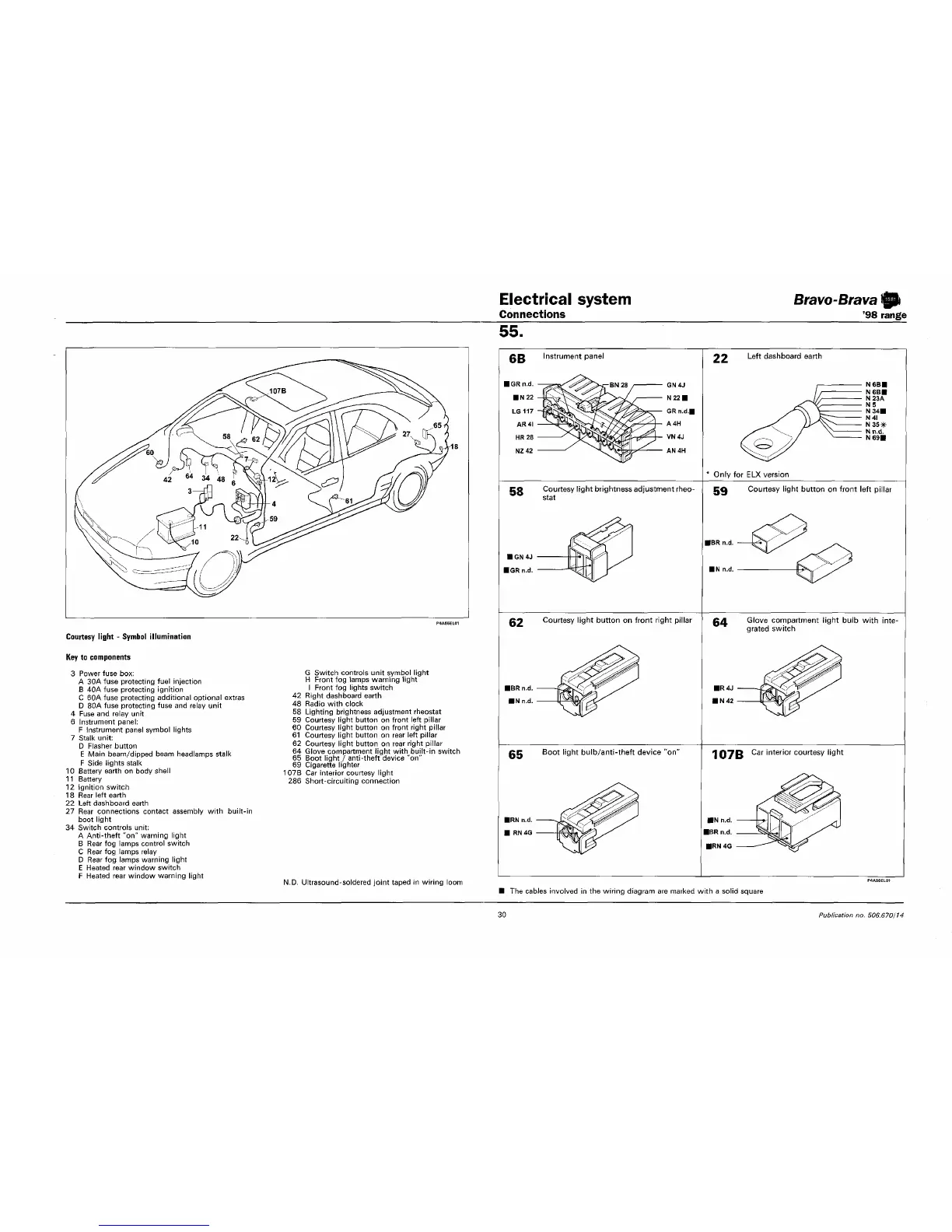

Courtesy light - Symbol illumination
Key to components
3 Power fuse box:
A 30A fuse protecting fuel injection
B 40A fuse protecting ignition
C 60A fuse protecting additional optional extras
D 80A fuse protecting fuse and relay unit
4 Fuse and relay unit
6 Instrument panel:
F Instrument panel symbol lights
7 Stalk unit:
D Flasher button
E Main beam/dipped beam headlamps stalk
F Side lights stalk
10 Battery earth on body shell
11 Battery
12 ignition switch
18 Rear left earth
22 Left dashboard earth
27 Rear connections contact assembly with built-in
boot light
34 Switch controls unit:
A Anti-theft "on" warning light
B Rear fog lamps control switch
C Rear fog lamps relay
D Rear fog lamps warning light
E Heated rear window switch
F Heated rear window warning light
G Switch controls unit symbol light
H Front fog lamps warning light
I Front fog lights switch
42 Right dashboard earth
48 Radio with clock
58 Lighting brightness adjustment rheostat
59 Courtesy light button on front left pillar
60 Courtesy light button on front right pillar
61 Courtesy light button on rear left pillar
62 Courtesy light button on rear right pillar
64 Glove compartment light with built-in switch
65 Boot light / anti-theft device "on"
69 Cigarette lighter
107B Car interior courtesy light
286 Short-circuiting connection
6B Instrument panel
CO Courtesy light brightness adjustment rheo-
stat
g2 Courtesy light button on front right pillar
CE Boot light bulb/anti-theft device "on"
22 Left dashboard earth
Only for ELX version
U Courtesy light button on front left pillar
QA Glove compartment light bulb with inte-
grated switch
"1 OVB ^
ar
'
nter
'
or
courtesy light
N.D. Ultrasound-soldered joint taped in wiring loom
The cables involved in the wiring diagram are marked with a solid square
30
Publication no. 506.670/74
